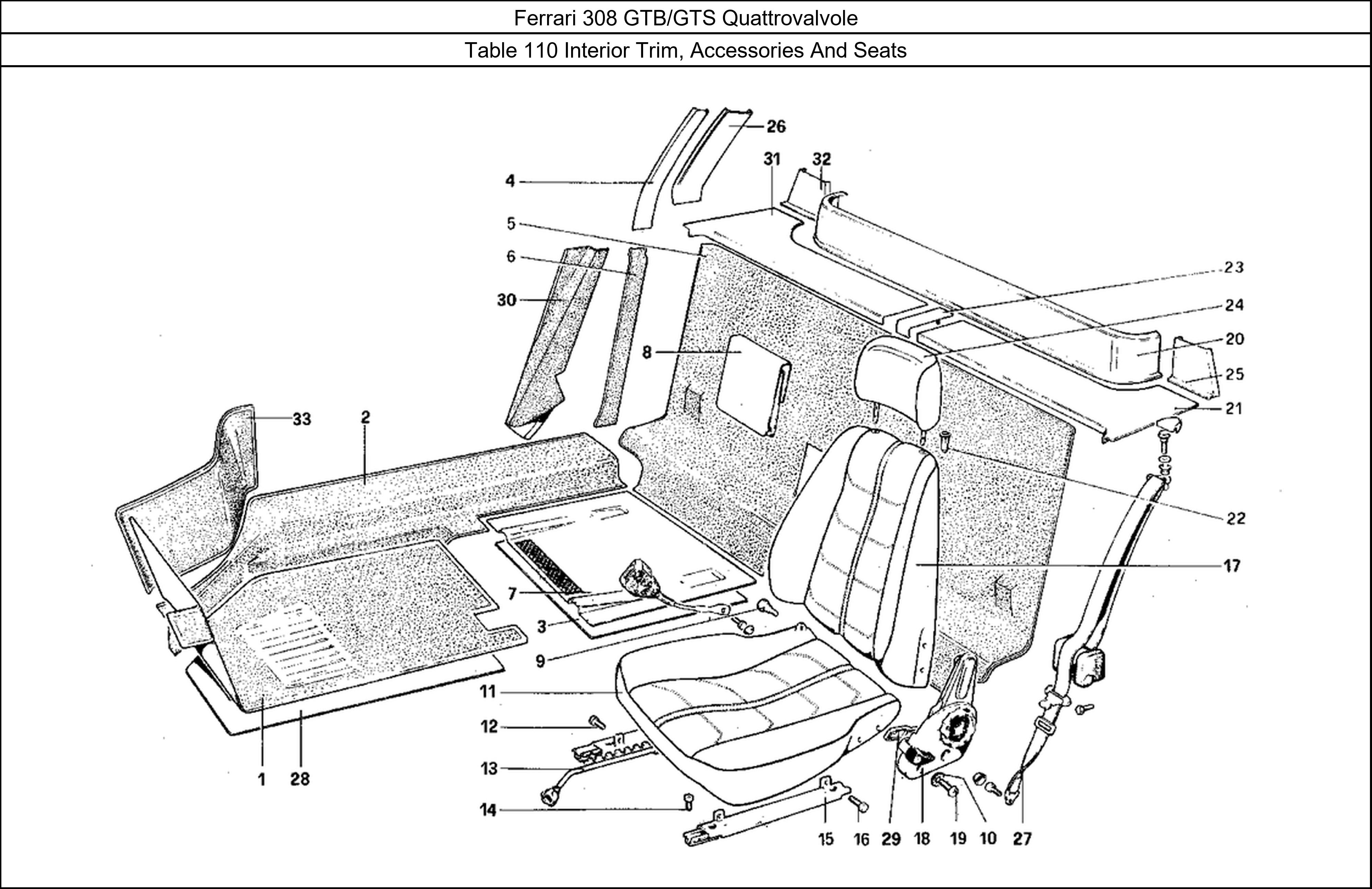

Ferrari Parts 308 GTB/GTS Quattrovalvole Table 110 Interior Trim, Accessories And Seats Parts

Click Diagram To Enlarge

llferrariparts.com/pn60744300id142374.html>R.H. FRONT CARPET GTB

15	60147402	GUIDA LATERALE SEDILE DX.	1
1	60811400	L.H. FRONT CARPET GTS	1
1	60776500	R.H. FRONT CARPET GTS	1
1	60807800	L.H. FRONT CARPET GTB	1
1	60143104	L.H. FRONT CARPET GTB	1
1	61365800	R.H. FRONT CARPET GTS	1
1	61361600	L.H. FRONT CARPET GTS	1
1	61365300	CARPET SET (PAIR) 328 RHD	1
2	60377702	L.H CARPET LHD GTS	1
2	60379005	R.H. CARPET RHD GTS	1
2	60080207	R.H. CARPET LHD GTB	1
2	60228400	R.H. CARPET RHD GTB	1
2	60379104	L.H. CARPET RHD GTS	1
2	60228509	L.H. CARPET RHD GTB	1
2	60377603	R.H, CARPET LHD GTS	1
2	60080306	L.H. CARPET LHD GTB	1
3	61602400	SELF ADHESIVE CARPET RHD	1
3	61597300	SELF ADHESIVE CARPET LHD	1
4	60997800	L.H. GASKET	1
4	60997700	R.H. GASKET	1
5	61360800	CARPET GTS	1
5	61352200	CARPET GTB	1
6	61459100	R.H. MOULDING WITH COVERING GTB	1
6	61459200	L.H. MOULDING WITH COVERING GTB	1
7	60144904	TAPPETO SOTTOSEDILE DX.	1
7	60145000	TAPPETO SOTTOSEDILE SX.	1
8	60765300	POCKET PASSENGER SEAT GTS	1
9	60773600	SCREW	2
10	10615671	WASHER	8
11	60757600	CUSCHION R.H. SEAT	1
11	60757700	CUSCHION L.H. SEAT	1
11	60757300	COVERING	2
12	16043221	SCREW	4
13	60369105	GUIDE WITH ADJUSTER L.H. SEAT	1
13	60369006	GUIDE WITH ADJUSTER R.H. SEAT	1
14	40294308	SEATBELT MOUNTING BRACKET	8
15	60147402	GUIDA LATERALE SEDILE DX.	1
15	60147501	GUIDA LATERALE SEDILE SX.	1
16	40294407	SCREW	1
17	60757200	COVERING	2
17	60757400	SQUAB R.H. SEAT	1
17	60757500	SQUAB L.H. SEAT	1
18	40124604	REGOLATORE SEDILE DX.	1
18	40124703	REGOLATORE SEDILE SX.	1
18	60856400	ADJUSTER L.H. SEAT	1
18	60856300	SEAT TILT MECHANISM RH	1
19	14306426	VITE	8
19	40294308	SEATBELT MOUNTING BRACKET	4
20	60997400	MOULDING WITH COVERING	1
21	61134900	MOULDING LEFT WINDOW SHELF. GTS	1
21	60997600	MOULDING LEFT WINDOW SHELF. GTB	1
22	20058905	BUSH FOR HEAD REST	4
23	60998400	MOULDING WITH COVERING	1
24	60757100	HEADREST WITH COVERING	2
24	60748300	COVERING	2
25	60998200	L.H. MOULDING WITH COVERING	1
25	60998100	R.H. MOULDING WITH COVERING	1
26	61134200	COVERING GTS	2
26	61135000	MOULDING STEERING CENTRAL DX. GTS	1
26	61135200	MOULDING STEERING CENTRAL SX. GTS	1
27	60791600	SAFETY BELTS	1
28	61602200	R.H. FRONT ADHESIVE	1
28	61597100	R.H. FRONT ADHESIVE	1
28	61597200	L.H. FRONT ADHESIVE LHD	1
28	61602300	L.H; FRONT ADHESIVE RHD	1
29	61728100	L.H. PROTECTION	1
29	61728000	R.H. PROTECTION	1
30	60787600	MOULDING LOWER. COLUMN LEFT. GTS	1
30	60787500	MOULDING LOWER. COLUMN RIGHT. GTS	1
31	61134800	MOULDING DX WINDOW SHELF. GTS	1
31	60997500	MOULDING DX WINDOW SHELF. GTB	1
32	60998100	R.H. MOULDING WITH COVERING	1
33	60079506	R.H. CARPET LHD GTB	1
33	60564200	R.H. CARPET RHD GTS	1
33	60563600	R.H. CARPET RHD GTB	1
33	60564300	L.H. CARPET RHD GTS	1
33	60377504	L.H. CARPET LHD GTS	1
33	60079605	L.H. CARPET LHD GTB.	1
33	60563700	L.H. CARPET RHD GTB	1
33	60377405	R.H. CARPET LHD GTS	1
