Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

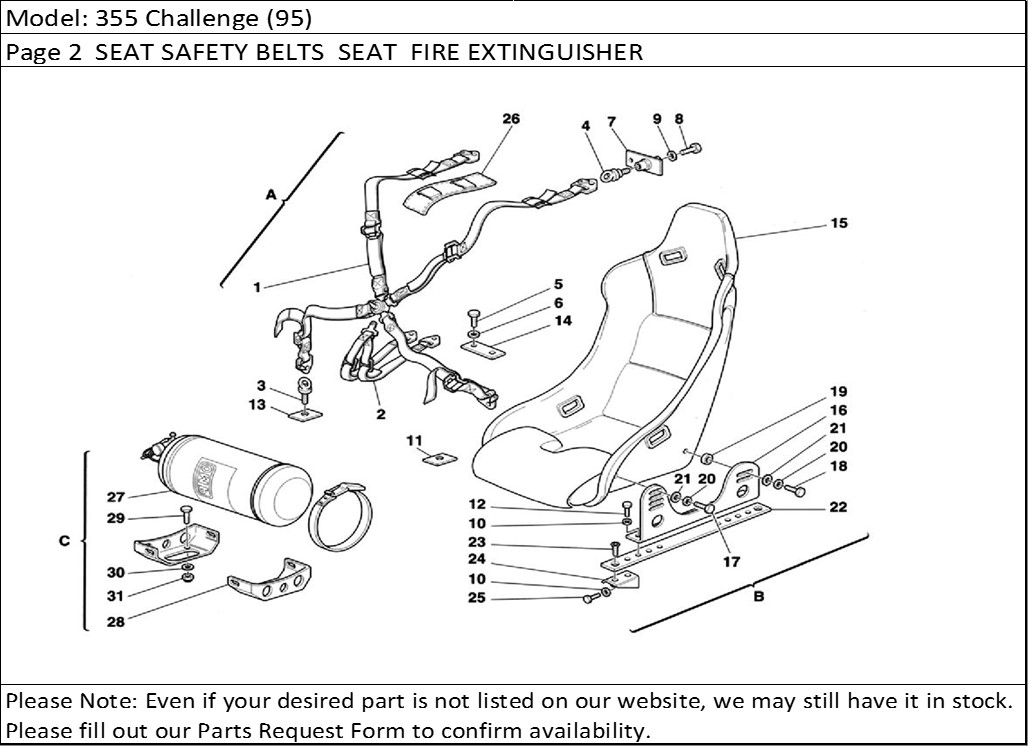

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
- | 145245 | Extinguisher kit complete with supports and fixingsC on Picture | 1 |
- | 164778 | Safety belts complete kit with fixings- A on Picture - | 1 |
- | 164777 | Seat fix. kitB on Picture | 1 |
1 | Parts supplied on request only with 164778 ass. no.',200)" onmouseout="toolTip()">- | 3"-4 fix. points safety beltParts supplied on request only with 164778 ass. no. | 1 |
2 | - | ReinforcementParts supplied on request only with 164778 ass. no. | 1 |
3 | - | EyeboltParts supplied on request only with 164778 ass. no. | 1 |
4 | - | EyeboltParts supplied on request only with 164778 ass. no. | 3 |
5 | 14306421 | 5? point fix. screwParts supplied on request only with 164778 ass. no. | 2 |
6 | 164781 | Belt plates assy | 1 |
6 | 11198079 | WasherParts supplied on request only with 164778 ass. no. | 2 |
7 | - | Upper bracketParts supplied on request only with 164781 ass. no. | 2 |
8 | 15970524 | ScrewParts supplied on request only with 164781 ass. no. | 2 |
9 | - | WasherParts supplied on request only with 164781 ass. no. | 2 |
10 | 11198079 | Conic washerParts supplied on request only with 164781 ass. no. | 6 |
11 | - | Outside fix. plateParts supplied on request only with 164781 ass. no. | 1 |
12 | 16043421 | ScrewParts supplied on request only with 164781 ass. no. | 4 |
13 | - | L.H. inside fix. plateParts supplied on request only with 164781 ass. no. | 1 |
14 | - | Fix. plateParts supplied on request only with 164781 ass. no. | 1 |
15 | 166888 | Seat | 1 |
16 | - | R.H. bracketParts supplied on request only with 164777 ass. no. | 1 |
16 | - | L.H. bracketParts supplied on request only with 164777 ass. no. | 1 |
17 | 16043421 | ScrewParts supplied on request only with 164777 ass. no. | 2 |
18 | 16043821 | ScrewParts supplied on request only with 164777 ass. no. | 2 |
19 | - | SpacerParts supplied on request only with 164777 ass. no. | 2 |
20 | 63285300 | WasherParts supplied on request only with 164777 ass. no. | 4 |
21 | 11198079 | Conic washerParts supplied on request only with 164777 ass. no. | 4 |
22 | - | L.H. thread guideParts supplied on request only with 164777 ass. no. | 1 |
22 | - | R.H. thread guideParts supplied on request only with 164777 ass. no. | 1 |
23 | 14441921 | ScrewParts supplied on request only with 164777 ass. no. | 4 |
24 | - | R.H. inside fix. bracketParts supplied on request only with 164777 ass. no. | 1 |
24 | - | L.H. inside fix. bracketParts supplied on request only with 164777 ass. no. | 1 |
25 | 14306334 | ScrewParts supplied on request only with 164777 ass. no. | 2 |
26 | 166889 | Protective cushion for beltOn request | 2 |
27 | - | ExtinguisherParts supplied on request only with 165245 ass. no. | 1 |
28 | - | Fix. bracketParts supplied on request only with 165245 ass. no. | 2 |
29 | 10902421 | ScrewParts supplied on request only with 165245 ass. no. | 4 |
30 | 14496401 | WasherParts supplied on request only with 165245 ass. no. | 8 |
31 | 12575411 | NutParts supplied on request only with 165245 ass. no. | 4 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
