Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

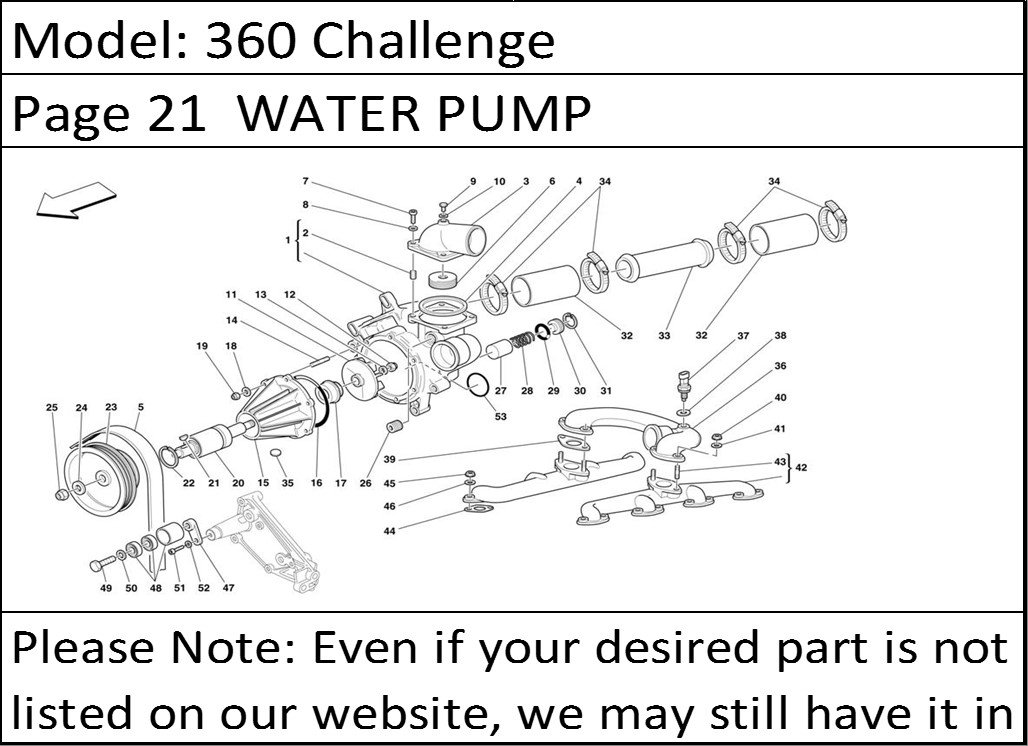

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 176044 | WATER PUMP BODY | 1 |
2 | 13525470 | THREADED INSERT | 4 |
3 | 171926 | THERMOSTATIC VALVE COVER | 1 |
4 | 182550 | FLANGE FOR PUMP RETAING | 1 |
5 | 201446 | WATER PUMP AND GENERATOR CONTROL BELT | 1 |
6 | 181487 | THREADED PLUG | 1 |
7 | 14433124 | SCREW | 4 |
8 | 12601274 | WASHER | 4 |
9 | 132349 | UNION | 1 |
10 | 10297760 | GASKET | 1 |
11 | 176045 | WATER PUMP IMPELLER | 1 |
12 | 100436 | CAP NUT | 1 |
13 | 11194074 | WASHER | 1 |
14 | 13540924 | STUD | 6 |
15 | 176173C | WATER PUMP | 1 |
16 | 137868 | O.R. GASKET | 1 |
17 | 183759 | FRONT SEAL RING | 1 |
18 | 12601274 | WASHER | 6 |
19 | 102741 | NUT | 6 |
20 | 143742 | BEARING WITH SHAFT | 1 |
21 | 10202320 | DISC KEY | 1 |
22 | 11059976 | SEEGER RING | 1 |
23 | 177207 | WATER PUMP CONTROL PULLEY | 1 |
24 | 12646821 | WASHER | 1 |
25 | 102742 | NUT | 1 |
26 | 106227 | UNION | 1 |
27 | 176046 | BUSHING | 1 |
28 | 176047 | SPRING | 1 |
29 | 147278 | O.R. GASKET | 1 |
30 | 176048 | SPRING PLUG | 1 |
31 | 11058376 | SEEGER RING | 1 |
32 | 183078 | SLEEVE | 2 |
33 | 178058 | PIPE | 1 |
34 | 13000690 | SCREW COLLAR | 4 |
35 | 10158801 | PLUG | 1 |
36 | 169526 | WATER OUTLET MANIFOLD CONNECTION DUCT | 1 |
37 | 180137 | WATER TEMPERATURE SENSOR | 1 |
38 | 10298460 | GASKET | 1 |
39 | 169564 | GASKET | 2 |
40 | 177778 | NUT | 4 |
41 | 12601374 | WASHER | 4 |
42 | 169749 | COMPLETE WATER OUTLET MANIFOLD | 2 |
43 | 13516824 | STUD | 4 |
44 | 141332 | GASKET | 8 |
45 | 132877 | NUT | 16 |
46 | 12604274 | WASHER | 16 |
47 | 180296 | SMALL PLATE | 1 |
48 | 179698 | BELT TIGHTENING BEARING | 1 |
49 | 15970921 | SCREW | 1 |
50 | 11190574 | WASHER | 1 |
51 | 14302824 | SCREW | 1 |
52 | 11198074 | WASHER | 1 |
53 | 101044 | O.R. GASKET | 1 |
