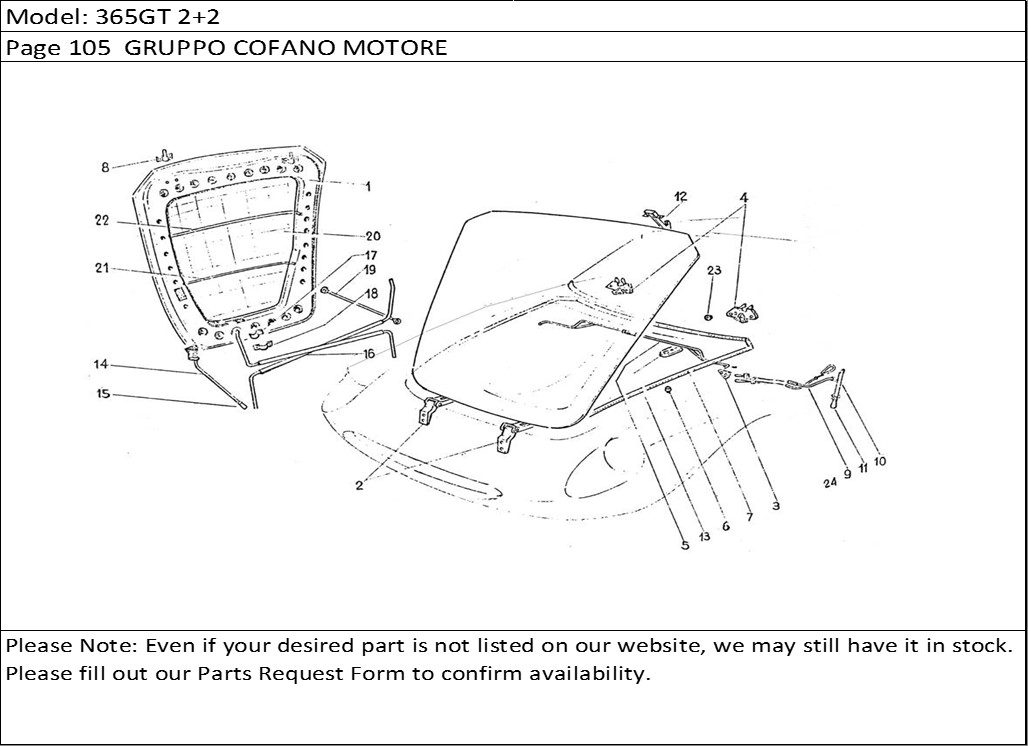

365GT 2+2 Page 105 GRUPPO COFANO MOTORE

365GT 2+2 Page 105  GRUPPO COFANO MOTORE
365GT 2+2 Page 105 GRUPPO COFANO MOTORE
$1.00

Product Description

365GT 2+2 Page 105 GRUPPO COFANO MOTORE

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts DiagramPart #DescriptionQuantity Used
12512800407Cofano mobile compl.ossat.e rivestim.1
22412807000Cerniera D cofano mobile cpl.1
22412807100Cerniera S cofano mobile cpl.1
32512816601PLATE1
41482817001Serratura cofano mobile cpl.2
52512818409Tiranto per serratura cofano cpl.1
62392819400Tassello gomma battuta poster.cofano8
72512819800Profilato gomma cofano mobile1
82512821601Scontrino p.serratura cofano mobile cpl.2
92512831000Cavo comando apertura cofano mobile1
102512833001LEVER1
112392841602Pomollo comando apertura cofano mobile1
122432850001Gancio sicurezza cofano mobile1
132462851001Scontrino per serratura gancio sicur.cofano1
142422855001Dispositive sostegno apert.cof.mobile cpl.1
152412855400Pomollo per asta sostegno cofano1
162512858603Barra D per dispos.apert.cof.mobile1
162512858703Barra S per dispos.apert.cof.mobile1
172422859006Staffetta super.ritegno barra sollev.cof.4
182422859206Staffetta infer.ritegno barra sollev.cof.4
192422859800Tie Rod1
202512860200Rivestimento sotto cofano1
212512864008Molura anter.ritegno rivestim.sotto cof.1
222512864208Molura poster.ritegno rivestim.sotto cof.1
231482816001Bush4
242512851200Cavo sicurezza apertura cofano1
1465520000FRONT FIXING BRACKET4
1510902024SCREW8
1612640677WASHER8
17140594REAR SIDE-MARKER LAMP -Valid for USA and CDN2
17147563FRONT SIDE-MARKER LAMP -Valid for USA and CDN2
1865164700HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer1
1965511700GASKET -Valid for cars with headlights washer1
2065363000HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer1
2165380000HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer2
2265380100L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer1
2265667200R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer1
2315517201SCREW -Valid for cars with headlights washer6
2465896600R.H. SUPPORT -Valid for cars with headlights washer1
2465896700L.H. SUPPORT -Valid for cars with headlights washer1
2565896400R.H. PLUG -Valid for cars with headlights washer1
2565896500L.H. PLUG -Valid for cars with headlights washer1
2610441590BRACKET -Valid for cars with headlights washer4
2714296191RIVET -Valid for cars with headlights washer4
2865161700L. H. FRONT SIDE LIGHT SUPPORT1
2865161500R. H. FRONT SIDE LIGHT SUPPORT1
2910902424SCREW2
30116413WASHER2
3163234200SCREW2
3212646801WASHER2
33185378CLIP3
34183672BULB -For gas lamps2
3565705600L.H. BRACKET -For gas lamps1
3565705500R.H. BRACKET -For gas lamps1
3665705400BRACKET -For gas lamps2
37185554FRONT LIGHT CONTROL STATION -For gas lamps2
38155751CLIP -Valid for USA and CDN4
3914084111NUT -Valid for USA and CDN8
4012638124WASHER -Valid for USA and CDN8
4166120200INSULATION1
4214190190NUT WITH CAGE2
4364529600SPACER8
466325702Description not available
467259102Description not available
466325725Description not available
467259127Description not available
