Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

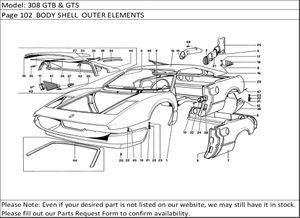

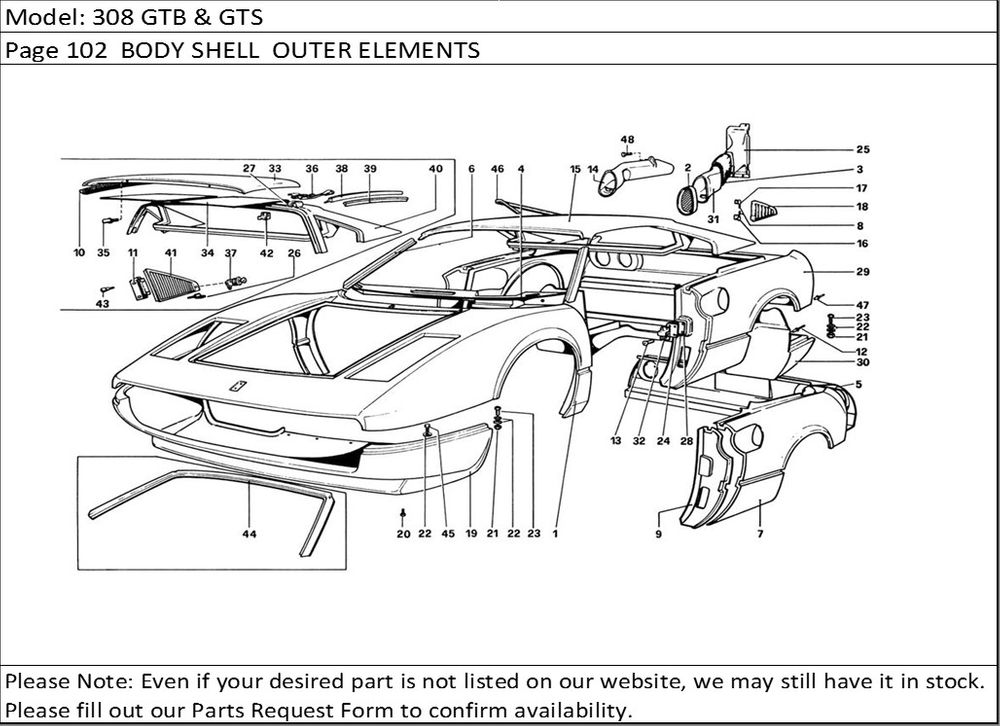

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 60213907 | Rivestimento anteriore | 1 |
2 | 60200300 | Griglia presa aria Dx.Vale solo per D | 1 |
2 | 60200409 | Griglia presa aria Sx.Vale solo per D | 1 |
3 | 107533 | Manicotto presa aria Sx. | 1 |
4 | 60258303 | Sottopianda | 1 |
5 | 60217103 | Rivestimento sede targa | 1 |
6 | 60381308 | Rivestimento piantone Dx. GTBDalla vettura n, ............... | 1 |
6 | 60320504 | Rivestimento piantone Sx. GTBFino alla vettura n. ................. | 1 |
6 | 60381407 | Rivestimento piantone Sx. GTBDalla vettura n. ............... | 1 |
6 | 60320405 | Rivestimento piantone Dx. GTBFino alla vettura n. ................. | 1 |
7 | 60358900 | Parafargo posteriore Dx. GTS | 1 |
7 | 60359007 | Parafango posteriore Sx. GTS | 1 |
7 | 60359305 | Parafango posteriore Sx. GTB | 1 |
7 | 60361106 | Parafango posteriors Dx. GTB | 1 |
8 | 60042108 | Perno per cerniere (GTB) | 2 |
9 | 60216801 | Lesena Dx. | 1 |
9 | 60216900 | Lesena Sx. | 1 |
10 | 60390104 | Guarnizione di tenuta (GTS) | 2 |
11 | 60325305 | Cerniera grigtia (GTS) | 2 |
12 | 60159001 | Rivetto fissaggio sottoscocca post. | 20 |
13 | 20287504 | Vile fissaggio scontrino | 8 |
14 | 60202900 | Condotto presa aria Dx. | 1 |
15 | 60214806 | Rivestimento padiglione GTB | 1 |
16 | 60010705 | Cerniera inferiore griglia GTB | 1 |
17 | 60040805 | Cerniera superiore griglia GTB | 1 |
18 | 60337409 | Griglia laterale Sx. GTB | 1 |
18 | 60370004 | Griglia laterale Dx. GTB | 1 |
19 | 60280500 | Sottoscocca anterioreSpoyler maggiorato | 1 |
19 | 60395902 | Sottoscocca anterioreSpoyler normale | 1 |
21 | 12574121 | Dado fissaggio rivestimenti ant. e post. | 22 |
22 | 12638101 | Rondella fiss. rivestimenti ant. e post. | 49 |
23 | 10977721 | Vite fissaggio rivestimenti ant. e post. | 18 |
24 | 60163003 | Distanziale | 2 |
25 | 60222304 | Condotto post, presa aria Sx. GTS | 1 |
25 | 60373404 | Condotto post, presa aria Sx. GTBDalla vettura n. ................. | 1 |
25 | 60155504 | Condotto post, presa aria Sx. GTBFino alla vettura n. ................. | 1 |
26 | 60551400 | Paracolpi griglia GTS | 2 |
27 | 60395506 | Riparo maniglia apertura tetto GTS | 2 |
28 | 60602400 | Guarnizione scontrino serratura porta | 2 |
29 | 60339009 | Rivestimento posteriore GTS | 1 |
29 | 60214905 | Rivestimento posteriore GTS | 1 |
30 | 15903801 | Vite fissaggio sottoscocca anteriore | 5 |
30 | 60000700 | Rivestimento posteriore inferiore | 1 |
31 | 60155405 | Condotto ant. presa aria Sx. GTB | 1 |
31 | 60373602 | Condotto ant. presa aria Sx. GTS | 1 |
32 | 20019204 | Riscontro serratura Sx. | 1 |
32 | 20019105 | Riscontro serratura Dx. | 1 |
33 | 60608600 | Tetto apribile GTSDalla vettura n. ............... | 1 |
33 | 60328903 | Tetto apribileGTSFino alla vettura n. ............... | 1 |
34 | 60376902 | Rivestimento mterno Sx. tetto GTS | 1 |
34 | 60376803 | Rivestimento mterno Dx. tetto GTS | 1 |
35 | 60139008 | Perno fiss. anteriore tetto GTS | 2 |
36 | 60421500 | Maniglia apertura tetto GTS | 2 |
37 | 60075009 | Serratura per griglie GTS | 2 |
38 | 60415403 | Canalino laterale Sx. GTSFino alla vettura n, ................ | 1 |
38 | 60608300 | Canalino laterale Dx. GTSDalla vettura n. .............. | 1 |
38 | 60608400 | Canalino laterale Sx. GJSDalla vettura n. .............. | 1 |
38 | 60415304 | Canalino laterale Dx. GTSFino alla vettura n. ................ | 1 |
39 | 60608500 | Guamizione rompigoccia GTSDalla vettura n. ............... | 2 |
39 | 60373305 | Guarnizione rompigoccia GTSFino alla vettura n. ................ | 2 |
40 | 60172509 | Rivestimento padiglione GTS | 1 |
41 | 60336302 | Griglia laterale Sx. GTS | 1 |
41 | 60336203 | Griglia laterale Dx. GTS | 1 |
42 | 60337003 | Staffa posteriore fissaggio tetto GTSFino alla vettura n. ................ | 2 |
42 | 60500500 | Staffa posteriore fissaggio tetto GTSDalla vettura n. ................. | 2 |
43 | 20106001 | Gommino battuta griglia GTS | 2 |
44 | 60362209 | Ossatura parabrezza GTS | 1 |
44 | 60608700 | Ossatura parabrezza GTSFino alla vettura n. ................ | 1 |
45 | 10978021 | Vite fissaggio rivestimento ant. | 4 |
46 | 60528300 | Guarnizione su pinne padiglione | 2 |
47 | 60225901 | Rivetto fissaggio rivestimento post. | 30 |
48 | 15186501 | Vite fissaggio condotto post, presa aria Dx. | 1 |
