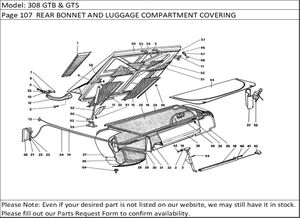

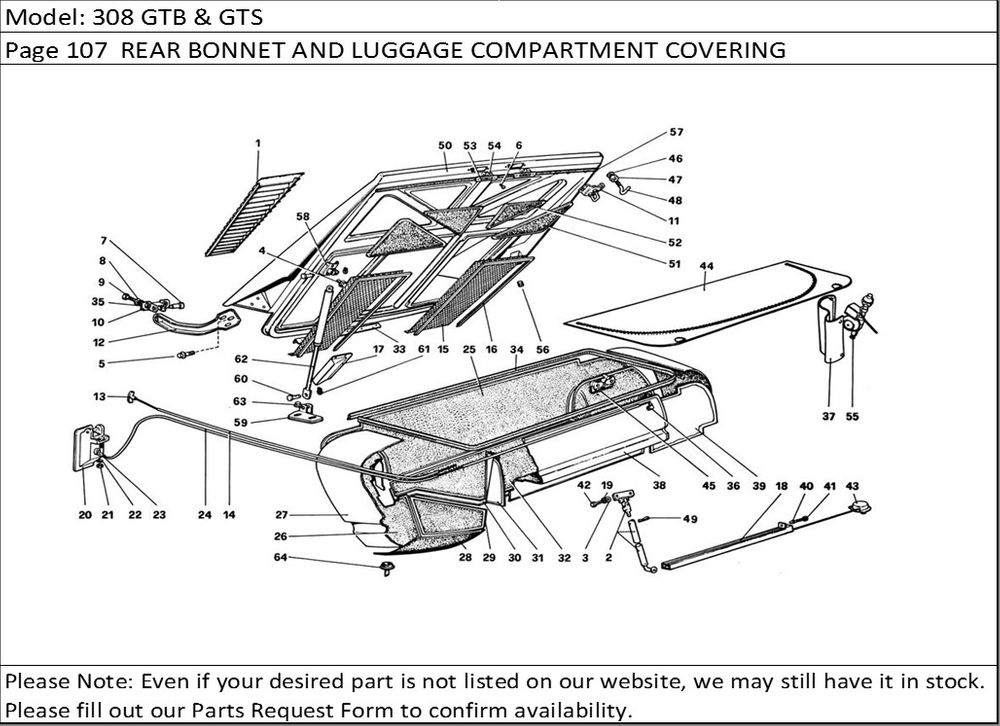

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 60023900 | Griglia Dx.Non serve per D | 1 |
| 1 | 60024007 | Griglia Sx.Non serve per D | 1 |
| 1 | 60201803 | Griglia Dx.Vale solo per D | 1 |
| 1 | 60201902 | Griglia Sx.Vale solo per D | 1 |
| 2 | 60073905 | Asta sostegno cofanoFino al 27581 GTB e 27307 GTS | 1 |
| 3 | 12644406 | RondellaServe con voce 2 | 2 |
| 4 | 13835871 | ViteServe con voce 62 | 4 |
| 5 | 13838971 | Vite | 6 |
| 6 | 20297800 | Vite | 4 |
| 7 | 60017506 | Perno fulcro | 2 |
| 8 | 12646701 | Rondella | 4 |
| 9 | 16043321 | Vite | 4 |
| 10 | 60257706 | Cerniera Dx. fissa | 1 |
| 10 | 60257805 | Cerniera Sx. fissa | 1 |
| 11 | 60510200 | Perno per chiusuraDopo soppressfons 60035201 | 2 |
| 12 | 60256906 | Cerniera Sx. mobile | 1 |
| 12 | 60256807 | Cerniera Dx. mobile | 1 |
| 13 | 60510500 | Cavo di srcurezzaCon maniglia | 1 |
| 13 | 60088002 | Cavo di sicurezzaSenza maniglia | 1 |
| 14 | 60024502 | Tubo cavo di sicurezza | 1 |
| 15 | 60149705 | Rete di protezione sottogriglia Sx. | 1 |
| 15 | 60149606 | Rete di protezione sottogriglia Dx. | 1 |
| 16 | 60152501 | Cornice Sx. | 1 |
| 16 | 60152402 | Cornice Dx. | 1 |
| 17 | 60134806 | GocciolatoioFino alla vettura n. .................. | 1 |
| 18 | 60077401 | Guida per asta sostegno cofanoSolo con voce 2 | 1 |
| 19 | 10615470 | RondeilaSolo con voce 2 | 2 |
| 20 | 60086105 | Maniglia apricofano | 1 |
| 21 | 15896411 | Dado | 1 |
| 22 | 10519301 | Rondeila | 1 |
| 23 | 60277001 | Cavo apricofano | 1 |
| 24 | 60024601 | Tubo per cavo apricofano | 1 |
| 25 | 60117603 | Tappeto ant. baule | 1 |
| 26 | 60129608 | Tappeto sul passaruota Dx. | 1 |
| 26 | 60129707 | Tappeto sul passaruota Sx. | 1 |
| 27 | 60129103 | Tappeto Sx. | 1 |
| 27 | 60129004 | Tappeto Dx. | 1 |
| 28 | 60130002 | Tappeto nicehia laterale | 2 |
| 29 | 60130408 | Tappeto nicehia Sx. | 1 |
| 29 | 60130309 | Tappeto nicehia Dx. | 1 |
| 30 | 60131307 | Carlo ne catramato pavimento | 1 |
| 31 | 60130903 | Tappeto sulla paratia Sx. | 1 |
| 31 | 60130804 | Tappeto sulla paratia Dx. | 1 |
| 32 | 60128204 | Tappeto pavimento baule | 1 |
| 33 | 60218906 | Gocciolatoio | 1 |
| 34 | 60296200 | Guarnizione | 1 |
| 35 | 10615671 | Rondeila fiss. cerniera fissa | 4 |
| 36 | 60276607 | MorsettoDallavettuia n. ................. | 2 |
| 36 | 60153301 | MorsettoFino vettura n. ................. | 1 |
| 37 | 40279606 | Protezione antenna radio | 1 |
| 38 | 60128501 | Tappeto post, baule | 1 |
| 39 | 60120300 | Tappeto post. Sx. | 1 |
| 39 | 60120201 | Tappeto post. Dx. | 1 |
| 40 | 60077609 | Tampone di fermo astaServe con voce 2 | 1 |
| 41 | 14098000 | DadoServe con voce 2 | 1 |
| 42 | 10902426 | VileServe con voce 2 | 2 |
| 43 | 60108206 | Moila richiamoastaServe con voce 2 | 1 |
| 44 | 60114808 | Copertura baule | 1 |
| 45 | 60277407 | Serratura | 2 |
| 46 | 12642001 | RondeilaSolo con perno 60035201 | 2 |
| 47 | 16100811 | ControdadoSolo con perno 60035201 | 2 |
| 48 | 60035201 | Perno per chiusuraFino ad introduzione 60510200 | 2 |
| 49 | 60074903 | MollettaServe solo con voce 2 | 1 |
| 50 | 60517600 | Cofano posteriore | 1 |
| 51 | 60286903 | Tappeto Dx. esterno cofano | 1 |
| 51 | 60237000 | Tappeto Sx. esterno cofano | 1 |
| 52 | 60286705 | Tappeto Dx. interne- cofano | 1 |
| 52 | 60286804 | Tappeto Sx. interno cofano | 1 |
| 53 | 60044906 | Fanale illuminazione targa | 2 |
| 54 | 20083002 | La rn pad a | 2 |
| 55 | 20270609 | Antenna radio | 1 |
| 56 | 60568000 | Tassello appoggio cofano | 2 |
| 57 | 60564600 | Guarnizione | 1 |
| 58 | 60597800 | Staffa Sx. su cofanoServe per voce 62 | 1 |
| 58 | 60597700 | Staffa Dx. su cofanoServe per voce 62 | 1 |
| 59 | 60598000 | Staffa Sx. su telaioServe per voce 62 | 1 |
| 59 | 60597900 | Staffa Dx. su telaioServe per voce 62 | 1 |
| 60 | 60599500 | PernaServe per voce 62 | 4 |
| 61 | 11087876 | SeegerServe per voce 62 | 4 |
| 62 | 60592800 | AmmortizzatoreDalla vettura 27583 GTB e 27309 GTS | 2 |
| 63 | 13832101 | DadoServe per voce 62 | 4 |
| 64 | 60731300 | Tappo scarico acqua | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
