Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

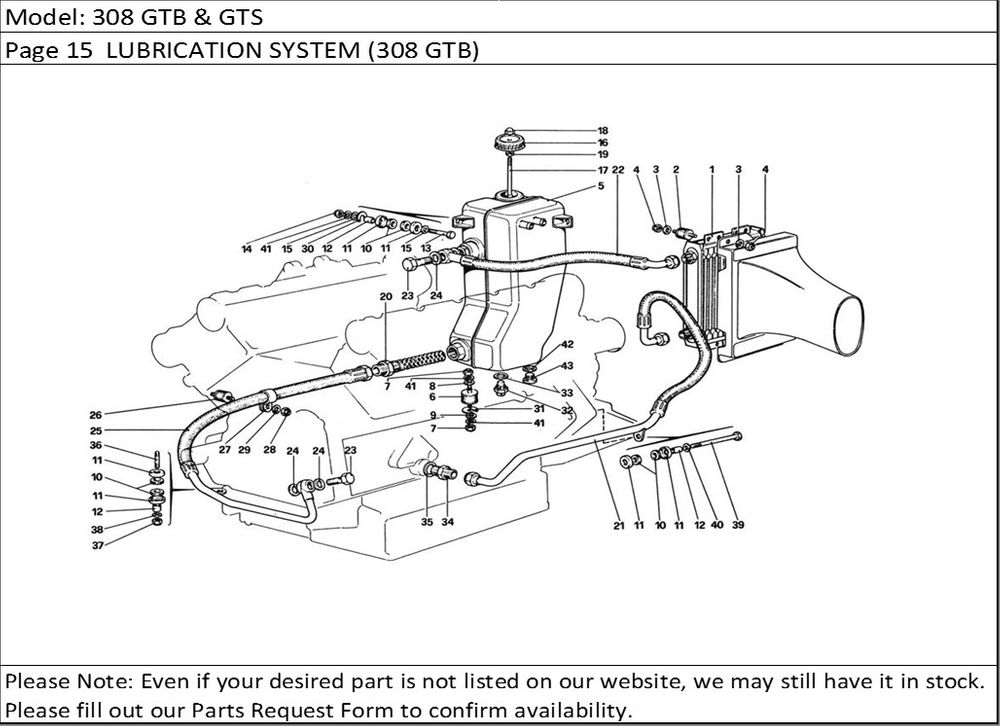

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 106965 | Radiatore olio | 1 |
| 2 | 102947 | Supporto antivibrante | 3 |
| 3 | 12643701 | Rondella | 6 |
| 4 | 102741 | Dado | 6 |
| 5 | 109617 | Serbatoio olio | 1 |
| 6 | 101495 | Supporto antivibrante | 1 |
| 7 | 16100811 | Dado autobloccante | 2 |
| 8 | 12646201 | Rondella | 1 |
| 9 | 10519601 | Rondella | 1 |
| 10 | 107978 | Tassello elastico | 8 |
| 11 | 107979 | Scodellino | 8 |
| 12 | 107980 | Boccola distanziale | 4 |
| 13 | 16043921 | Vite | 2 |
| 14 | 16100811 | Dado autobloccante | 2 |
| 15 | 12646701 | Rondella | 2 |
| 16 | 109719 | Tappo carico olio | 1 |
| 17 | 109720 | Asta livello | 1 |
| 18 | 100044 | Dado cieco | 1 |
| 19 | 15896211 | Dado | 1 |
| 20 | 109632 | Filtro olio sul pescante serbatoio | 1 |
| 21 | 109626 | Tubo dalla pompa recupero al radiatore | 1 |
| 22 | 109624 | Tubo dal radiatore al serbatoio | 1 |
| 23 | 109694 | Bocchettone | 2 |
| 24 | 10264660 | Guarnizione | 4 |
| 25 | 109625 | Tubo dal pescante sul serbatoio alla pompa | 1 |
| 26 | 102947 | Tampone sostegno tubo | 2 |
| 27 | 10442190 | Fascetta | 2 |
| 28 | 15896211 | Dado | 2 |
| 29 | 106850 | Rondella | 2 |
| 30 | 106470 | Rondella di rasamento spessore mm. 1 (di eventuale montaggio) | 2 |
| 30 | 106471 | Idem spessore mm. 2 | 2 |
| 30 | 106472 | Idem spessore mm. 3 | 2 |
| 31 | 107342 | Idem spessore mm. 3,25 | 2 |
| 31 | 101039 | Rondella di rasamento spessore mm. 1 (di eventuale montaggio) | 2 |
| 31 | 107341 | Idem spessore mm. 3 | 2 |
| 31 | 107339 | Idem spessore mm. 2 | 2 |
| 31 | 107338 | Idem spessore mm. 1,5 | 2 |
| 31 | 107340 | Idem spessore mm. 2,5 | 2 |
| 32 | 100453 | Termistore sul serbatoio | 1 |
| 33 | 10257060 | Guarnizione | 1 |
| 34 | 109314 | Raccordo | 1 |
| 35 | 10296260 | Guarnizione | 1 |
| 36 | 13543821 | Prigioniero sul coperchio anteriore | 1 |
| 37 | 16100811 | Dado | 1 |
| 38 | 11198071 | Rondella | 1 |
| 39 | 109731 | Bullone fissaggio tubo e motorino avviamento | 1 |
| 40 | 11198071 | Rondella | 1 |
| 41 | 106852 | Rondella | 4 |
| 42 | 10257060 | GuarnizioneVale dalla vettura n. 27127 | 1 |
| 43 | 10300771 | TappoVale dalla vettura n.,27127 | 1 |
