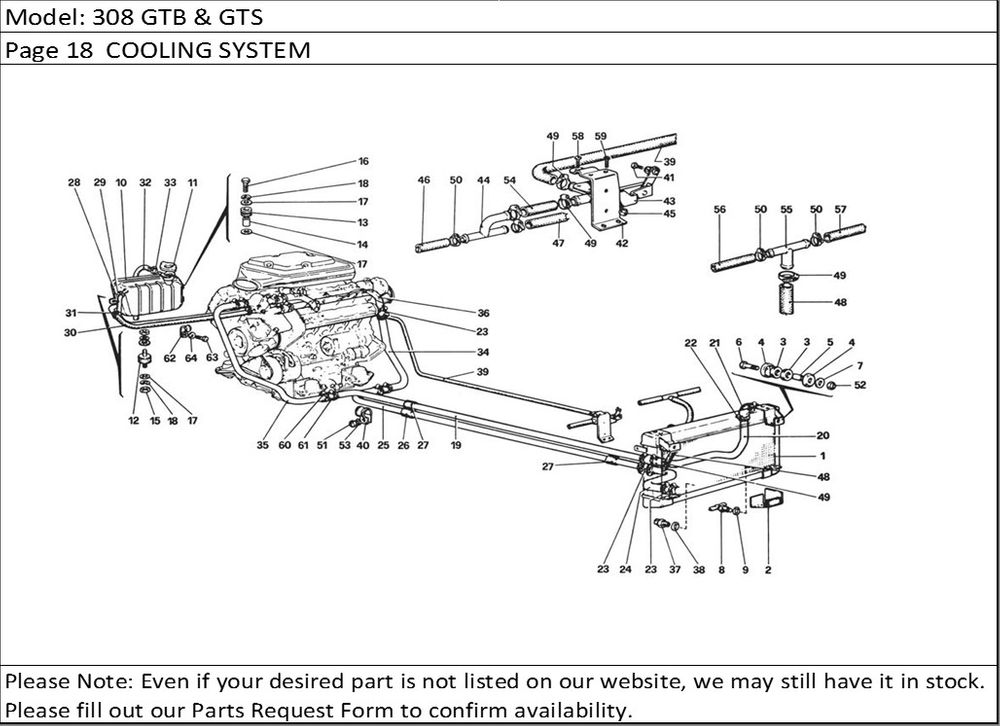

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 116285 | Radiatore acquaDopo esaurimento n. 107759 | 1 |
| 1 | 111351 | Radiatore acquaSolo per AUS | 1 |
| 1 | 107759 | Radiatore acquaFino ad esaurimento | 1 |
| 2 | 107782 | Spessore gomma antivibrante | 2 |
| 3 | 107978 | Tassello elastico | 4 |
| 4 | 107979 | Scodellino | 4 |
| 5 | 107980 | Distanziale | 2 |
| 6 | 16043821 | Bullone | 2 |
| 7 | 10519601 | Rondella | 2 |
| 8 | 101488 | Rubinetto scarico acqua | 1 |
| 9 | 101496 | Guarnizione | 1 |
| 10 | 109842 | Nourrice per radiatoreVale solo per AUS | 1 |
| 10 | 109003 | Nourrice per radiatoreNon vale per AUS | 1 |
| 11 | 101499 | Tappo per nourrice | 1 |
| 12 | 102947 | Supporto antivibrante | 1 |
| 13 | 103549 | Boccola antivibrante | 2 |
| 14 | 103550 | Distanziale | 2 |
| 15 | 15896211 | Dado | 1 |
| 16 | 10902621 | Vite | 2 |
| 17 | 106850 | Rondella | 3 |
| 18 | 12643701 | Rondella | 3 |
| 19 | 108081 | Tubo centrale per mandata al rad.Non vale per GD | 1 |
| 19 | 108082 | Tubo centrale per mandata al rad.Vale per GD | 1 |
| 20 | 109503 | Tubo anteriore per mandata al rad.Vale per GD | 1 |
| 20 | 109369 | Tubo anteriore per mandata al rad.Non vale per GD | 1 |
| 21 | 102956 | Manicotto | 1 |
| 22 | 102958 | Fascetta | 12 |
| 23 | 102957 | Manicottto | 5 |
| 24 | 109370 | Tubo anteriore per ritornoNon vale per GD | 1 |
| 24 | 109504 | Tubo anteriore per ritornoVale per GD | 1 |
| 25 | 108082 | Tubo centrale per ritorno | 1 |
| 26 | 107465 | Manicotto antivibrante | 1 |
| 27 | 105385 | Manicotto antivibrante | 3 |
| 28 | 110926 | Tubo sfiato colleg. motore-nourriceVale solo per AUS | 1 |
| 28 | 103471 | Tubo sfiato colleg. motore-nourriceNon vale per AUS | 1 |
| 29 | 104879 | Fascetta | 2 |
| 30 | 109355 | Tubo alimentazione dalla nourrice al motoreNon vale per AUS | 1 |
| 30 | 110927 | Tubo alimentazione dalla nourrice al motoreVale per AUS | 1 |
| 31 | 105622 | Fascetta | 2 |
| 32 | 105960 | Tubo sfiato | 1 |
| 33 | 101296 | Fascetta | 1 |
| 34 | 107466 | Tubo posteriore Sx.Vale per GD | 1 |
| 34 | 106690 | Tubo posteriore Sx.Non vale per GD | 1 |
| 35 | 108042 | Tubo posteriore Dx. | 1 |
| 36 | 106306 | Tubo fra le teste | 1 |
| 37 | 101507 | Termocontatto | 1 |
| 38 | 101508 | Guarnizione | 1 |
| 39 | 109750 | Tubo dal motore al rubinetto | 1 |
| 40 | 107002 | Fascetta | 1 |
| 41 | 110077 | Vite | 1 |
| 42 | 110067 | Staffa fissaggio rubinettoVale per GD | 1 |
| 42 | 110560 | Staffa fissaggio rubinettoNon vale per GD | 1 |
| 43 | 110066 | Rubinetto riscaldatore | 1 |
| 44 | 109376 | Tre vie sul rubinettoVale per GD | 1 |
| 44 | 104303 | Tre vie sul rubinettoNon vale per GD | 1 |
| 45 | 12574211 | Dado | 2 |
| 46 | 109751 | Tubo al riscaldatore Dx. | 1 |
| 47 | 110562 | Tubo al riscaldatore Sx.Vale per GD | 1 |
| 47 | 110561 | Tubo al riscaldatore Sx.Non vale per GD | 1 |
| 48 | 109755 | Tubo al 3 vie | 1 |
| 49 | 100507 | Fascetta | 6 |
| 50 | 100507 | Fascetta | 8 |
| 51 | 12574221 | Dado | 1 |
| 52 | 16104411 | Dado | 2 |
| 53 | 12643701 | Rondella | 1 |
| 54 | 110277 | Tubo dal rubinetto al 3 vie | 1 |
| 55 | 104303 | Tre vie | 1 |
| 56 | 109752 | Tubo dal riscaldatore Dx. al 3 vie | 1 |
| 57 | 109752 | Tubo dal riscaldatore Sx. al 3 vie | 1 |
| 58 | 110105 | Vite | 1 |
| 59 | 110106 | Vite | 2 |
| 60 | 12174090 | Fascetta | 4 |
| 61 | 105190 | Manicotto | 1 |
| 62 | 10442190 | FascettaSolo per AUS | 1 |
| 63 | 10902021 | ViteSolo per AUS | 1 |
| 64 | 106850 | RondellaSolo per AUS | 1 |
