Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

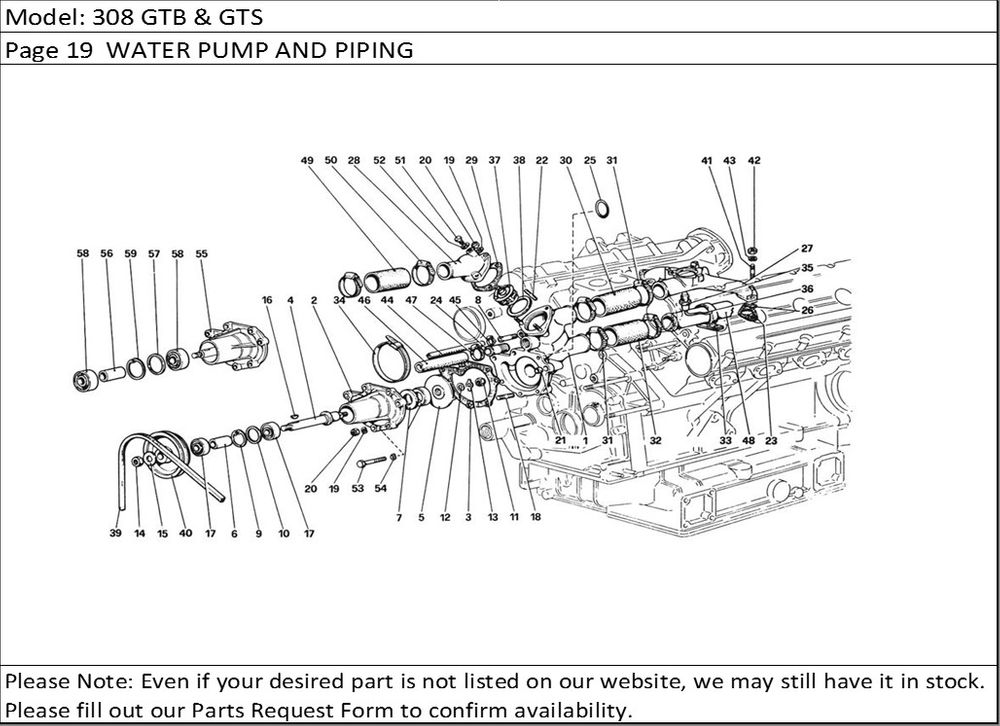

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 116174 | Pompa acqua completaDai mot ore n. 01612 GTB e 04378 GTS | 1 |
| - | 116173 | Complessivo pompa acqua parte ant.Dal moloie n. 01612 GTB e 04378 GTS | 1 |
| - | 107128 | Corpo pompa acqua complete | 1 |
| - | 116145 | Complettivo pompa acqua parte ant.Fino motore n. 0161 1 GTB e 04377 GTS | 1 |
| - | 111192 | Pompa acqua completaFino motore n. 01611 GTB e 04377 GTS | 1 |
| 1 | 105163 | Corpo poma acquaCol complessivon. 107128 | 1 |
| 2 | 103705 | Coperchio pompaVale fino al molore n. 01611 GTBe 04377 GTS | 1 |
| 3 | 103952 | Guarnizione | 1 |
| 4 | 103795 | Alberino per puleggia | 1 |
| 5 | 103806 | Girante | 1 |
| 6 | 103799 | DistanzialeVale fino al motore n. 01611 GTBe 04377 GTS | 1 |
| 7 | 100433 | Anello di tenutaIn alternative n. 114110 | 1 |
| 8 | 106241 | Raccordo | 1 |
| 9 | 11059475 | Anello seeger | 1 |
| 10 | 102783 | RondellaVale fino at motore n. 01611 GTBe 04377 GTS | 1 |
| 11 | 16101521 | Dado | 1 |
| 11 | 100436 | Dado ciecoVale fino al motore n. 01611 GTBe 04377 GTS | 1 |
| 12 | 10730321 | Rondella | 1 |
| 13 | 100434 | Piastrina | 1 |
| 15 | 11198671 | Rondella conica | 1 |
| 16 | 10205820 | Linguetta | 1 |
| 17 | 103877 | Cuscinetto a tenutaVale fino al motore n. 01611 GTBe 04377 GTS | 2 |
| 18 | 11500820 | THREADED STUD | 3 |
| 19 | 12601271 | Rondella ondulata | 6 |
| 20 | 12574211 | Dado | 6 |
| 21 | 102704 | Grano | 2 |
| 22 | 11500421 | THREADED STUD | 3 |
| 23 | 103954 | Guarnizione | 2 |
| 24 | 105195 | Raccordo | 1 |
| 25 | 105196 | Anello di tenuta | 1 |
| 26 | 103039 | Anello di tenuta | 2 |
| 27 | 107678 | Collettore uscita acqua | 1 |
| 28 | 105165 | Bocchettone uscita acqua | 1 |
| 29 | 105189 | Guarnizione | 1 |
| 30 | 105190 | Manicotto | 2 |
| 31 | 102958 | Fascetta | 4 |
| 32 | 102957 | Manicotto | 1 |
| 33 | 107002 | Fascetta | 1 |
| 34 | 105550 | Fascetta | 1 |
| 35 | 104628 | Termistore acqua | 1 |
| 36 | 108295 | Cavo per termistore | 1 |
| 37 | 109671 | Termistato | 1 |
| 38 | 105192 | Guarnizione | 1 |
| 39 | 104336 | Cinghia comando pompa acqua e alternatore | 1 |
| 40 | 105166 | Puleggia | 1 |
| 41 | 13516821 | Prigioniero sul collettore | 4 |
| 42 | 16100811 | Dado | 4 |
| 43 | 11198071 | Rondella | 4 |
| 44 | 103471 | Tubo dal motore alla nourrice | 1 |
| 45 | 104879 | Fascetta | 2 |
| 46 | 109355 | Tubo dalla nourrice al motore | 1 |
| 47 | 105622 | Fascetta | 2 |
| 48 | 106306 | Tubo | 1 |
| 49 | 102957 | Manicotto | 1 |
| 50 | 12174090 | Fascetta | 2 |
| 51 | 16042940 | Vite spurgo aria | 1 |
| 52 | 10260060 | Guarnizione | 1 |
| 53 | 16044421 | Vite | 4 |
| 54 | 12601371 | Rondella | 4 |
| 55 | 116156 | Coperchio pompa | 1 |
| 56 | 116157 | DistanzialeVale dal motore n. 01612 GTB e 04378 GTS | 1 |
| 57 | 116158 | RondellaVale dal motore n. 01612 GTB e 04378 GTS | 1 |
| 58 | 116159 | Cuscinetto a tenutaVale dal motore n. 01612 GTB e 04378 GTS | 2 |
| 59 | 11060076 | Anello SeegerVale dal motore n. 01612 GTB e 04378 GTS | 1 |
