Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

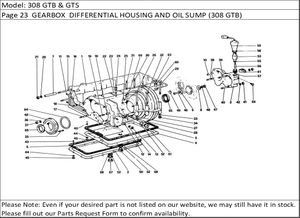

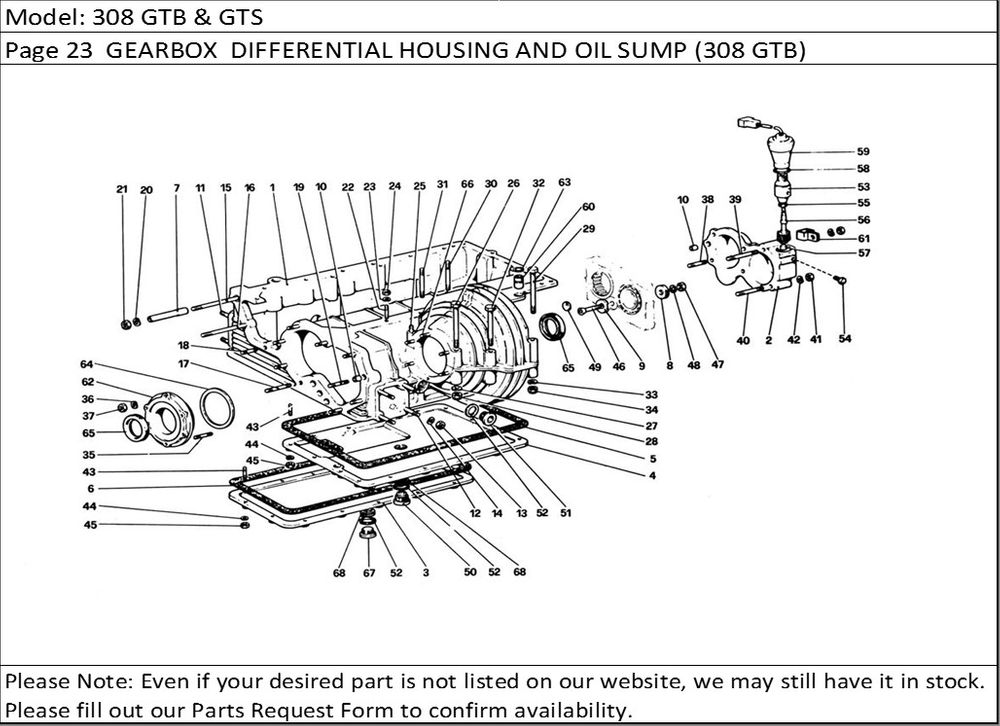

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 109812 | Cambto complete di ruotismi, differenziale e supporti | 1 |
| 1 | 109290 | Scatola cambio differenziale e coppa olioCol complessivo n. 109587 | 1 |
| 1 | 109587 | Scatola cambio completa | 1 |
| 2 | 105673 | Coperchio posteriore | 1 |
| 3 | 109313 | Coperchio coppa olio | 1 |
| 4 | 108491 | Coperchio inferioreDopo esaur. n. 104194 | 1 |
| 5 | 104196 | Guarnizione | 1 |
| 6 | 104197 | Guarnizione | 1 |
| 7 | 104033 | Grano di centraggio | 1 |
| 8 | 104198 | Rondella tenuta cuscinetti | 1 |
| 9 | 104199 | Rondella tenuta cuscinetti | 1 |
| 10 | 102704 | Grano di centraggio | 2 |
| 11 | 13449521 | Prigioniero per tamponi anteriori | 8 |
| 12 | 13450021 | Prigioniero per tamponi posteriori | 8 |
| 13 | 12164711 | Dado | 16 |
| 14 | 10516871 | Rondella | 16 |
| 15 | 13518921 | THREADED STUD | 1 |
| 16 | 13518721 | THREADED STUD | 1 |
| 17 | 13517421 | THREADED STUD | 1 |
| 18 | 13517221 | THREADED STUD | 8 |
| 19 | 13517321 | THREADED STUD | 1 |
| 20 | 11198071 | Rondella | 12 |
| 21 | 16100811 | Dado | 12 |
| 22 | 108966 | Prigioniero fissaggio basamento | 4 |
| 23 | 11198071 | Rondella | 4 |
| 24 | 16100811 | Dado | 4 |
| 25 | 13550421 | THREADED STUD | 2 |
| 26 | 15972021 | Bullone | 2 |
| 27 | 12638601 | Rondella | 4 |
| 28 | 12574511 | Dado autobloccante | 4 |
| 29 | 104189 | Bullone | 1 |
| 30 | 13518021 | THREADED STUD | 2 |
| 31 | 13517821 | THREADED STUD | 1 |
| 32 | 107711 | Bullone | 1 |
| 33 | 10519601 | Rondella | 4 |
| 34 | 16104111 | Dado autobloccante | 4 |
| 35 | 12429721 | THREADED STUD | 5 |
| 36 | 12601371 | Rondella elastica | 6 |
| 37 | 16104111 | Dado | 6 |
| 38 | 13517221 | Pnqioniero | 4 |
| 39 | 13517821 | THREADED STUD | 1 |
| 40 | 13517621 | THREADED STUD | 1 |
| 41 | 16100811 | Dado | 6 |
| 42 | 11198071 | Rondella | 6 |
| 43 | 13541121 | THREADED STUD | 30 |
| 44 | 11197771 | Rondella | 30 |
| 45 | 15896211 | Dado | 30 |
| 46 | 104218 | Vite | 1 |
| 47 | 16100811 | Dado | 1 |
| 48 | 10516670 | Rondellla | 1 |
| 49 | 10158801 | Tappo | 1 |
| 50 | 104280 | Tappo | 1 |
| 51 | 10275001 | Tappo | 1 |
| 52 | 10263460 | Guarnizione | 3 |
| 53 | 106427 | Corpo rinvio contachilometri | 1 |
| 54 | 101349 | Bullone | 1 |
| 55 | 104103 | Anello di tenuta | 1 |
| 56 | 107096 | Pignone contachilometri | 1 |
| 57 | 105674 | Rullo reggispinta | 1 |
| 58 | 101848 | Anello di tenuta | 1 |
| 59 | 106324 | Geneiatore d''impulsi | 1 |
| 60 | 103838 | Grano | 2 |
| 61 | 10450090 | Fascetta | 1 |
| 62 | 108226 | Coperchio laterale differenziale | 1 |
| 63 | 103839 | Anellino | 2 |
| 64 | 103231 | Distanziale per cuscinetti differenziale, spessore mm. 2,862 (di eventuale montaggio) | 1 |
| 64 | 103422 | Idem spessore mm. 2,4 | 1 |
| 64 | 103424 | Idem spessore mm. 2,80 | 1 |
| 64 | 103426 | Idem spessore mm. 3,20 | 1 |
| 64 | 109145 | Idem spessore mm. 4,3 | 1 |
| 64 | 103425 | Idem spessore mm. 3,00 | 1 |
| 64 | 103423 | Idem spessore mm. 2,60 | 1 |
| 65 | 104300 | Anello di tenutaIn alternativa al n. 108157 | 2 |
| 66 | 13543421 | THREADED STUD | 1 |
| 67 | 10275040 | Tappo | 1 |
| 68 | 112254 | Heli-coilPer coperchio n. 108491 | 2 |
