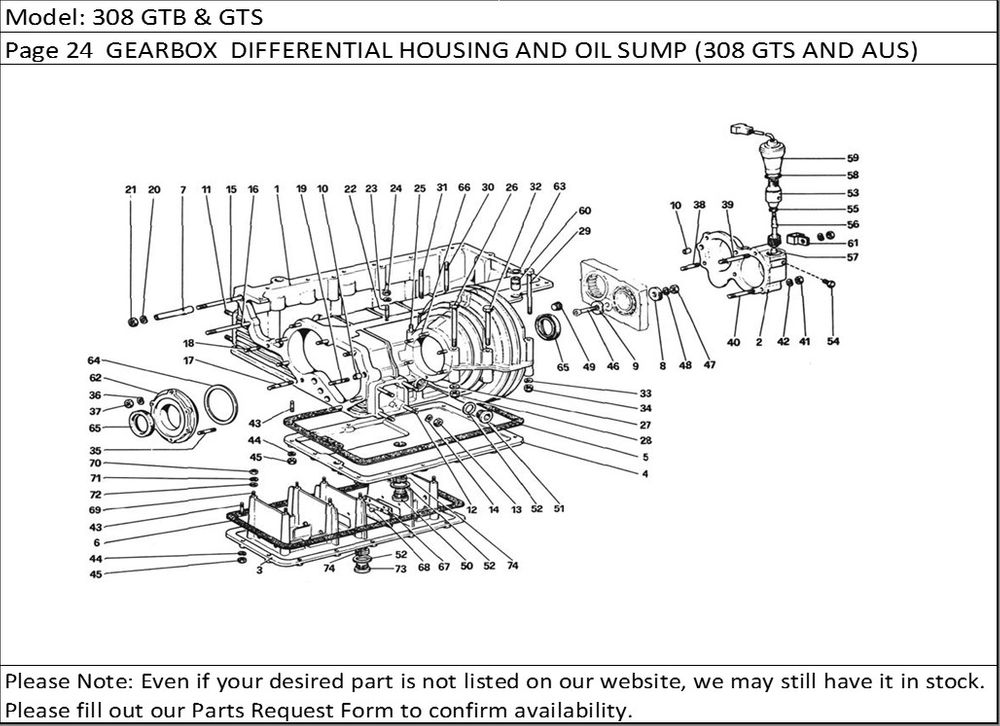

308 GTB & GTS Page 24 GEARBOX DIFFERENTIAL HOUSING AND OIL SUMP (308 GTS AND AUS)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
Location in Parts Diagram | Part # | Description | Quantity Used |
---|
- | 107874 | Cambio complete di ruotismi, differenziale e supportiPer AUS vale n. 111115 | 1 |
1 | 108238 | Scatola cambio differenziale e coppa olioCol complessivo n. 109586 | 1 |
1 | 109586 | Scatola cambio completa | 1 |
2 | 105673 | Coperchio posteriore | 1 |
2 | 107875 | Coperchio coppa olio completo | 1 |
3 | 104192 | Coperchio coppa olioCol complessivo n. 107875 | 1 |
4 | 108491 | Coperchio inferioreDopo esaur. n.1 04194 | 1 |
5 | 104196 | Guarnizione | 1 |
6 | 104197 | Guarnizione | 1 |
7 | 104033 | Grano di centraggio | 1 |
8 | 104198 | Rondella tenuta cuscinetti | 1 |
9 | 104199 | Rondella tenuta cuscinetti | 1 |
10 | 102704 | Grano di centraggio | 2 |
11 | 13449521 | Prigioniero per tamponi anteriori | 8 |
12 | 13450021 | Prigioniero per tamponi posteriori | 8 |
13 | 12164711 | Dado | 16 |
14 | 10516871 | Rondella | 16 |
15 | 13952821 | THREADED STUD | 1 |
16 | 13518721 | THREADED STUD | 1 |
17 | 13517421 | THREADED STUD | 1 |
18 | 13517221 | THREADED STUD | 8 |
19 | 13517321 | THREADED STUD | 1 |
20 | 11198071 | Rondella | 12 |
21 | 16100811 | Dado | 12 |
22 | 108966 | Prigioniero fissaggio basamento | 4 |
23 | 11198071 | Rondella | 4 |
24 | 16100811 | Dado | 4 |
25 | 13550421 | THREADED STUD | 2 |
26 | 15972021 | Bullone | 2 |
27 | 12638601 | Rondella | 4 |
28 | 12574511 | Dado autobloccante | 4 |
29 | 104189 | Bullone | 1 |
30 | 13518021 | THREADED STUD | 2 |
31 | 13517821 | THREADED STUD | 1 |
32 | 107711 | Bullone | 1 |
33 | 10519601 | Rondella | 4 |
34 | 16104111 | Dado autobloccante | 4 |
35 | 12429721 | THREADED STUD | 5 |
36 | 12601371 | Rondella elastica | 6 |
37 | 16104111 | Dado | 6 |
38 | 13517221 | THREADED STUD | 4 |
39 | 13517821 | THREADED STUD | 1 |
40 | 13517621 | THREADED STUD | 1 |
41 | 16100811 | Dado | 6 |
42 | 11198071 | Rondella | 6 |
43 | 13541121 | THREADED STUD | 30 |
44 | 11197771 | Rondella | 30 |
45 | 15896211 | Dado | 30 |
46 | 104218 | Vite | 1 |
47 | 16100811 | Dado | 1 |
48 | 10516670 | Rondella | 1 |
49 | 10269650 | Tappo | 1 |
50 | 104280 | Tappo | 1 |
51 | 10275001 | Tappo | 1 |
52 | 10263460 | Guarnizione | 3 |
53 | 106427 | Corpo rinvio contachilometri | 1 |
54 | 101349 | Bullone | 1 |
55 | 104103 | Anello di tenuta | 1 |
56 | 107096 | Pignone contachilometri | 1 |
57 | 105674 | Rullo reggispinta | 1 |
58 | 101848 | Anello di tenuta | 1 |
59 | 106324 | Generatore d''impulsi | 1 |
60 | 103838 | Grano | 2 |
61 | 10450090 | FascettaPer AUS vale n. 10450490 | 1 |
62 | 108226 | Coperchio laterale differenziale | 1 |
63 | 103839 | Anellino | 2 |
64 | 109145 | Idem spessore mm. 4,3 | 1 |
64 | 103425 | Idem spessore mm. 3,00 | 1 |
64 | 103423 | Idem spessore mm. 2,60 | 1 |
64 | 103231 | Distanziale per cuscinetti differenziale, spessore mm. 2,862 (di eventuale montaggio) | 1 |
64 | 103422 | Idem spessore mm. 2,40 | 1 |
64 | 103426 | Idem spessore mm. 3,20 | 1 |
64 | 103424 | Idem spessore mm. 2,80 | 1 |
65 | 104300 | Anello di tenutaIn alternativa al n. 108157 | 2 |
66 | 13543421 | THREADED STUD | 1 |
67 | 107589 | Paratia verticale | 2 |
68 | 100033 | Ribattino | 4 |
69 | 11000821 | Prigioniero per paratia inferiore | 8 |
70 | 15896411 | Dado | 8 |
71 | 106849 | Rondella elastica | 8 |
72 | 12638101 | Rondella | 8 |
73 | 10275040 | Tappo | 1 |
74 | 112254 | Heli-coil | 2 |
