Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

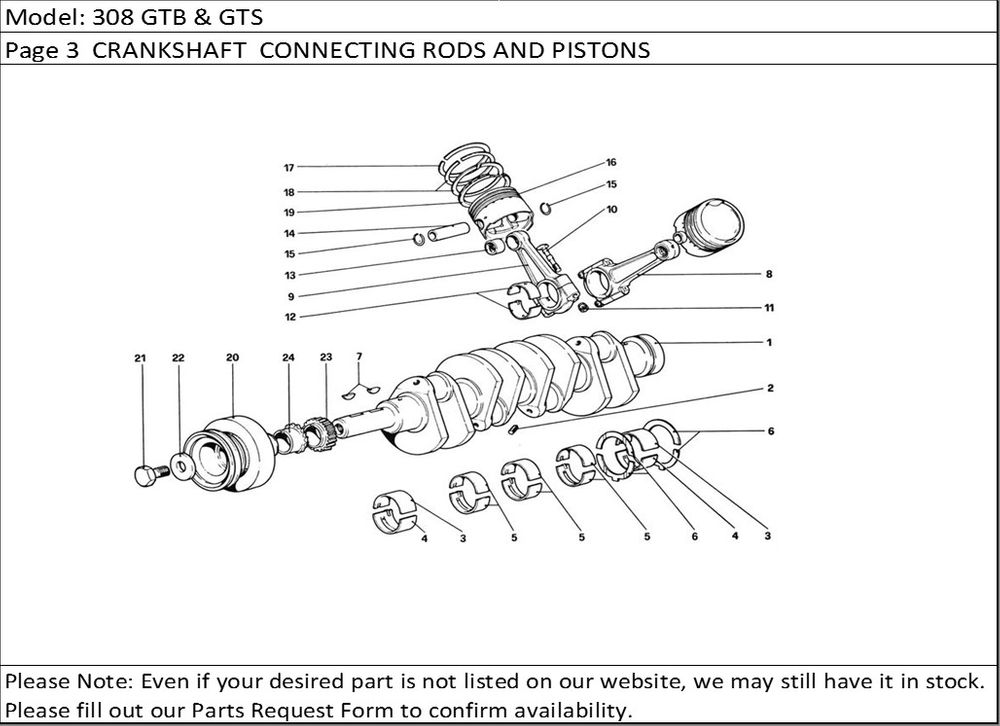

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 105623 | Albero rnotore | 1 |
| 2 | 106931 | Serie cuscinetti di banco ? normale | 1 |
| 2 | 14326150 | Tappo | 8 |
| 2 | - | Semicuscinetti anteriori e posteriori | 1 |
| 2 | 106932 | Serie cuscinetti di banco 1? minorazione mm. 0,254 | 1 |
| 2 | 106931 | Serie cuscinetti di banco ? normale | 1 |
| 2 | 106932 | Serie cuscinetti di banco 1? minorazione mm. 0,254 | 1 |
| 2 | 106933 | Serie cuscinetti di banco 2? minorazione mm. 0,508 - | 1 |
| 3 | 100120 | 2? minorazione mm. 0.508 sul ? | 2 |
| 3 | 100119 | l? minorazione mm. 0.254 sul ? | 2 |
| 3 | 100118 | Semicustinetto superiore | 2 |
| 3 | 100120 | 2? minorazione mm. 0.508 sul ? | 2 |
| 4 | 100124 | 2? minorazione mm. 0.508 sul ? | 2 |
| 4 | 100123 | l? minorazione mm. 0.254 sul ? | 2 |
| 4 | - | Semicuscinetti centrali e intermedi | 2 |
| 4 | 100122 | Semicuscinetto inferiore | 2 |
| 4 | 100123 | l? minorazione mm. 0.254 sul ? | 2 |
| 5 | 104025 | 2? minorazione mm. 0,508 sul ? | 6 |
| 5 | 104024 | l? minorazione mm. 0,254 sul ? | 6 |
| 5 | - | Anello di rasamento | 6 |
| 5 | 104023 | Semicuscinetto superiore e inferiore | 6 |
| 6 | 100146 | Anello di rasamento per supporto posteriore | 2 |
| 6 | 113984 | l? magqiorazione mm. 0.127 | 2 |
| 6 | 100147 | 2? magqiorazione mm. 0,25 | 2 |
| 7 | 10206020 | Linguetta | 2 |
| 8 | 109736 | Biella completa | 8 |
| 9 | 109688 | Biella e cappelloCol complessivo n. 109738 | 8 |
| 10 | 100156 | Bullone serraggio biella | 16 |
| 11 | 104011 | Dado per bullone biella | 16 |
| 12 | 100152 | 2? minorazione mm. 0,508 sul ? | 16 |
| 12 | 100150 | Semicuscinetto di biella | 16 |
| 12 | 100151 | l? minorazione mm, 0,254 sul ? | 16 |
| 12 | 100152 | 2? minorazione mm. 0,508 sul ? | 16 |
| 13 | 107100 | Boccola per spinotto | 8 |
| 14 | 104487 | Spinotto per pistone | 8 |
| 15 | 100174 | Anello per spinotto | 16 |
| 16 | 107183 | Pistone motore ? normale | 8 |
| 16 | 107183 | Pistone motore ? normale | 8 |
| 16 | 106937 | Serie segmenti ? normale mm. 81 | 1 |
| 17 | 107184 | Anello di tenuta | 8 |
| 18 | 107185 | Anello di tenuta AC conico (2a - 3a gola) ? normaleCon la serie complete n. 106937 | 16 |
| 19 | 107186 | Anello raschiaolio ROF con molla (4? gola) ? normaleCon la serie complete n. 106938 | 8 |
| 19 | 107186 | Anello raschiaolio ROF con molla (4? gola) ? normaleCon la serie complete n. 106938 | 8 |
| 20 | 105160 | Smorzatore torsionale con puleggiaVale per GTS e AUS | 1 |
| 20 | 109315 | Smorzatore torsionale con puleggiaNon vale per GTS e AUS | 1 |
| 21 | 100476 | Vite | 1 |
| 22 | 102775 | Rondella | 1 |
| 23 | 109317 | Pignone comando distribuzioneNon vale per GTS e AUS | 1 |
| 23 | 103781 | Pignone comando distribuzioneVale per GTS e AUS | 1 |
| 24 | 109316 | Pignone comando pompa recuperoNon vale per GTS e AUS | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
