Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

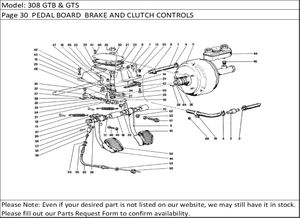

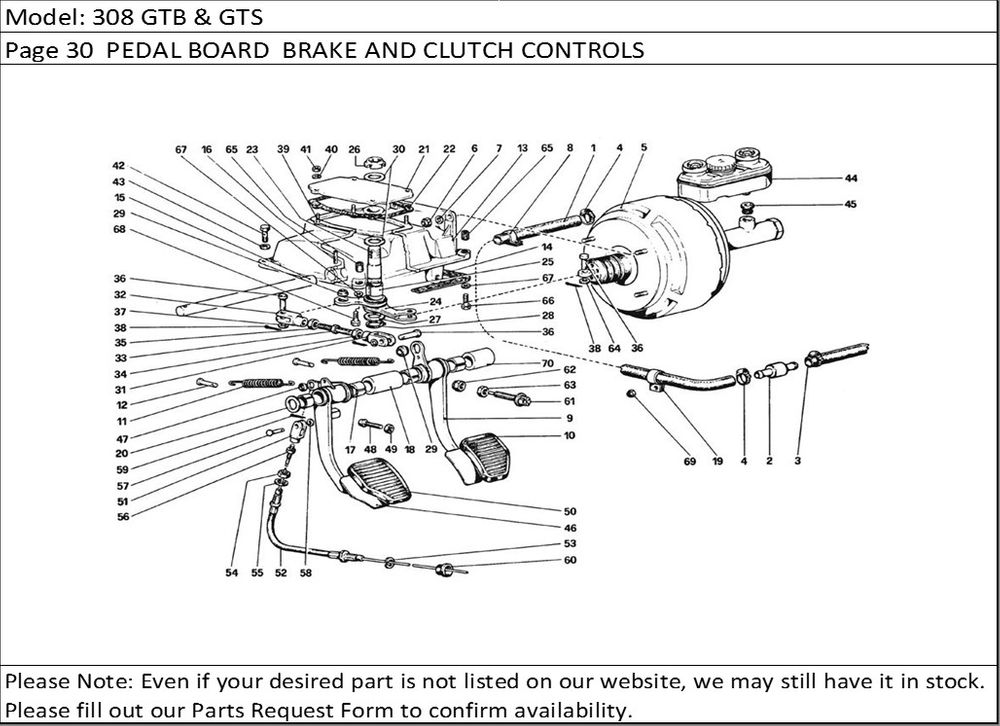

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 108951 | Tubo dal servofreno alla valvola di non ritorno | 1 |
| 2 | 101538 | Valvola non ritorno | 1 |
| 3 | 107982 | Tubo dalla valvola al collettore | 1 |
| 4 | 100507 | Fascetta | 4 |
| 5 | 111338 | Servofreno | 1 |
| 6 | 16104411 | Dado | 4 |
| 7 | 12601371 | Rondella | 4 |
| 8 | 10418900 | Fascetta | 1 |
| 9 | 108533 | Pedale e freno | 1 |
| 10 | 106950 | Copri pedale freno | 1 |
| 11 | 104895 | Molla richiarno pedale | 2 |
| 12 | 104896 | Perno tenula molla | 2 |
| 13 | 106187 | Supporlo pedaliera | 1 |
| 13 | 108022 | Supporlo pedaliera completeCol complessivo n. 108022 | 1 |
| 14 | 104899 | Guarnizione | 1 |
| 15 | 104900 | Perno supporlo pedali | 1 |
| 16 | 104901 | Spina | 1 |
| 17 | 103163 | Boccola | 4 |
| 18 | 104902 | Distanziale | 1 |
| 19 | 10441890 | Fascetta | 1 |
| 20 | 106083 | Rondella | 1 |
| 21 | 104904 | Coperchio | 1 |
| 22 | 104905 | Guarniaione | 1 |
| 23 | 106081 | Perno supporto leva rinvio | 1 |
| 24 | 108313 | Leva linvio sefvofreno | 1 |
| 25 | 100787 | Boccola | 1 |
| 26 | 106082 | Gtiiera | 1 |
| 27 | 108382 | Distanziale | 1 |
| 28 | 11066375 | Anello seeger | 1 |
| 29 | 100424 | Snodosferico | 2 |
| 30 | 106084 | Rondelta | 2 |
| 31 | 104910 | Forcellino (filetto Sx.) | 1 |
| 32 | 104911 | Forcellino | 1 |
| 33 | 104912 | Vile reoistro , | 1 |
| 34 | 103157 | Dado (filettoSx.) | 1 |
| 35 | 103160 | Dado | 1 |
| 36 | 10033411 | Perno | 3 |
| 37 | 103167 | Rondella | 2 |
| 38 | 10796401 | Copiglia | 3 |
| 39 | 11500021 | Prigiomero | 4 |
| 40 | 12601271 | Rondella ondulata | 4 |
| 41 | 15896211 | Dado | 4 |
| 42 | 16139021 | Bullone | 2 |
| 43 | 12601471 | Rondella ondulala . | 2 |
| 44 | 108802 | Vaschelta per liquido freni | 1 |
| 45 | 106625 | Anello di tenuta | 2 |
| 46 | 108534 | Pedale ft izioneVale fino alla vettura n. ...... | 1 |
| 46 | 116324 | Pedale frizioneVale dalla vettura n. . . ...... | 1 |
| 47 | 100423 | Snodo sferico | 1 |
| 48 | 106409 | Vite registroSolo con pedale 108534 | 1 |
| 49 | 16100821 | DadoSolo con pedale 108534 | 1 |
| 50 | 106949 | Copripedale | 1 |
| 51 | 108575 | Forcellino | 1 |
| 52 | 106745 | Cavo cornando frizione | 1 |
| 53 | 12601671 | Rondella elastica | 1 |
| 54 | 16103611 | Dado | 1 |
| 55 | 12601571 | Rondella elastica | 1 |
| 56 | 100361 | Controdado | 1 |
| 57 | 103218 | Perno | 1 |
| 58 | 12639701 | Rondella | 1 |
| 59 | 10734201 | Copiglia | 1 |
| 60 | 105369 | Passafilo | 3 |
| 61 | 101663 | Interruttore per luci arresto | 1 |
| 62 | 101662 | Dado paracolpi | 1 |
| 63 | 16043621 | Vite fissaggio pedaliera | 1 |
| 63 | 10791211 | Dado registro | 1 |
| 64 | 10730521 | Rondella | 1 |
| 65 | 106188 | Boccola filettata | 2 |
| 66 | 16044321 | Vite fissaggio pedaliera | 1 |
| 67 | 106852 | Rondella | 2 |
| 69 | 102741 | Dado | 1 |
| 70 | 104903 | Distanziale | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
