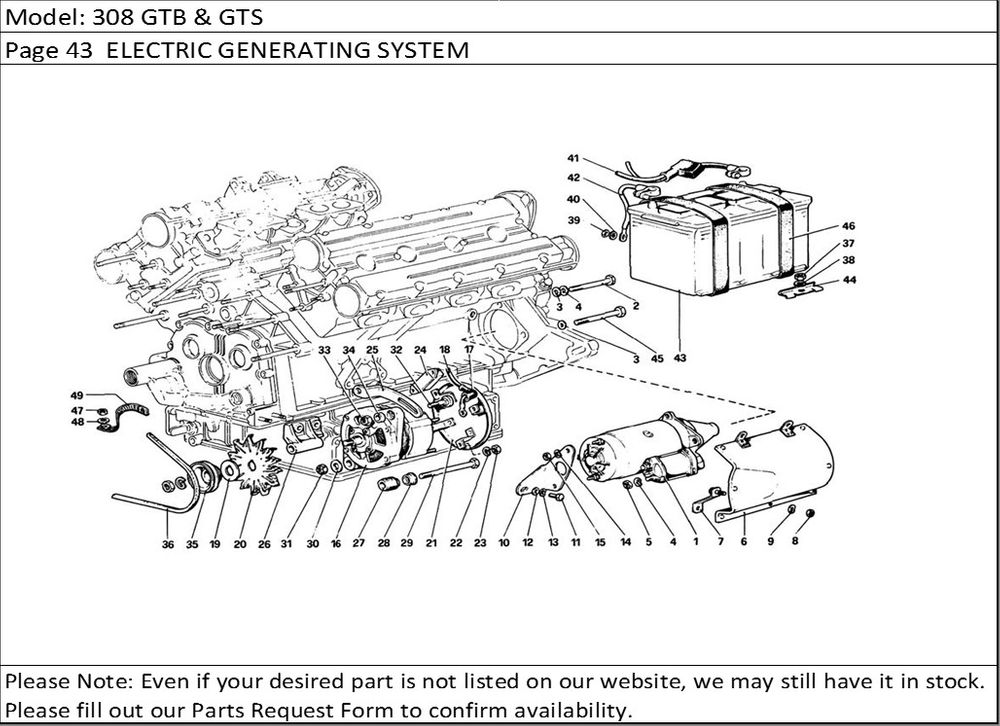

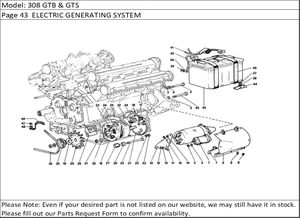

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 106966 | Motorino avviamento (BOSCH) | 1 |
| 1 | 103959 | Motorino avviamento (FIAT) | 1 |
| 2 | 16045031 | Bullone fissaggio motorinoPer GTS q= 3 | 2 |
| 3 | 11198071 | Rondella | 3 |
| 4 | 10519621 | RondellaPer GTS q = 3 | 2 |
| 5 | 10516670 | Rondella (solo per motorino BOSCH) | 1 |
| 5 | 16100811 | Dado (solo per motorino BOSCH) | 1 |
| 6 | 107038 | Paratia di protezioneNon vale per AUS | 1 |
| 7 | 107039 | Staffa sostegno paratiaNon vale per AUS | 1 |
| 8 | 15896211 | DadoNon vale per AUS | 1 |
| 9 | 12643701 | Rondella | 1 |
| 10 | 107129 | Staffa sostegno (solo per motorino BOSCH) | 1 |
| 11 | 15970721 | Bullone (solo per motorino BOSCH) | 1 |
| 12 | 105391 | Rondella (solo per motorino BOSCH) | 1 |
| 13 | 106853 | Rondella (solo per motorino BOSCH) | 1 |
| 14 | 106850 | Rondella (solo per motorino BOSCH) | 2 |
| 15 | 15896211 | Dado (solo per motorino BOSCH) | 2 |
| 16 | 111680 | Alternatore BOSCH 55AVale dopo esaur. n. 1 06541 | 1 |
| 16 | 106541 | Alternatore BOSCH 55AVale fino ad esaurimento | 1 |
| 17 | 107003 | Cappuccio protezione cavo | 1 |
| 18 | 106989 | Cavi collegamento alternatore | 1 |
| 19 | 106543 | Rondella di spallamento | 1 |
| 20 | 110111 | VentolaServe dopo esaurim. n. 106544 | 1 |
| 21 | 107221 | Paratia di protezione | 1 |
| 22 | 106849 | Rondella | 4 |
| 23 | 15896411 | Dado | 4 |
| 24 | 107396 | Regolatore di tensione | 1 |
| 25 | 105940 | Staffa di regolazione | 1 |
| 26 | 105158 | Supporto inferiore | 1 |
| 27 | 105392 | BoccolaAd esaurimento n. 106541 | 1 |
| 28 | 106426 | RondellaCon alternatore n. 1 1 1680 | 1 |
| 28 | 105393 | RondellaAd esaurimento n. 106541 | 1 |
| 29 | 105390 | Bullone | 1 |
| 30 | 11198671 | Rondella conica | 1 |
| 31 | 16109221 | Dado | 1 |
| 32 | 15970931 | ViteVale dopo esaur. n. 106228 | 1 |
| 32 | 106228 | ViteVale fino ad esaurimento | 1 |
| 33 | 13598021 | DadoC | 1 |
| 34 | 105391 | DistanzialeCon vite n. 15970931 | 1 |
| 34 | 106229 | DistanzialeCon vite n. 106228 | 1 |
| 35 | 106542 | Puleggia | 1 |
| 36 | 104336 | Cinghia comando alternatore e pompa acqua | 1 |
| 37 | 16100811 | Dado | 1 |
| 38 | 106852 | Rondella | 1 |
| 39 | 16100811 | Dado | 1 |
| 40 | 10516670 | Rondella | 1 |
| 41 | 109588 | Cavo collegamento batteria | 1 |
| 42 | 107547 | Cavo massa batteria | 1 |
| 43 | 107630 | Batteria 12V - 60 Ah. | 1 |
| 44 | 106525 | Staffa | 1 |
| 45 | 109731 | Bullone fissaggio motorino e tubo olioNon vale per GTS | 1 |
| 46 | 105694 | Nastro sollevamento batteria | 2 |
| 47 | 16100821 | Dado | 1 |
| 48 | 12601371 | Rondella | 1 |
| 49 | 100901 | Cavo massa motore | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
