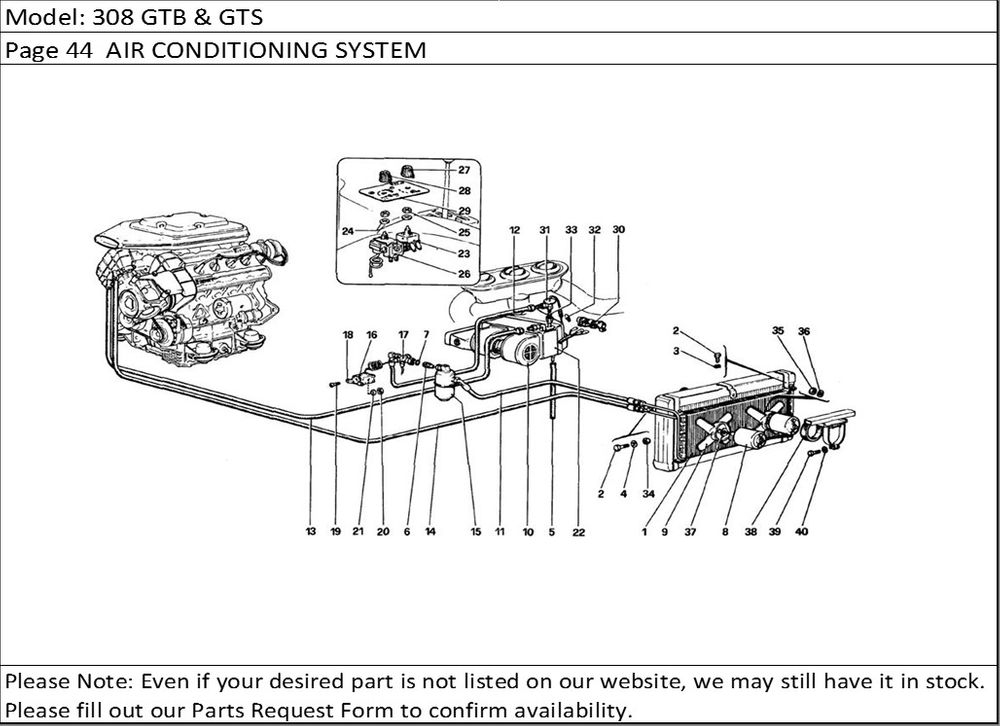

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 106697 | Condensatore | 1 |
| 2 | 10902121 | Vite | 5 |
| 3 | 106850 | Rondella | 4 |
| 4 | 12643701 | Rondella | 1 |
| 5 | 106710 | Tubo scarico condensa | 1 |
| 6 | 107402 | Raccordo per depuratore | 1 |
| 7 | 103039 | Anello di tenuta | 1 |
| 8 | 109826 | Motorino per ventclatore | 2 |
| 9 | 107175 | Ventola a 4 pale | 2 |
| 10 | 109039 | Gruppo ventilatore | 1 |
| 11 | 109322 | Tubo dal condensatore al depuratorePerGS in alternativa n.1 16725 - Per GO e AUS fino alla vett. n. | 1 |
| 11 | 112117 | Tubo dal condensatore al depuratorePerGDeAUSdallavett. n…. - In alternativa n. 116728 | 1 |
| 12 | 109323 | Tubo dal depuratore all''evaporatorePer GS fino vettura n. ...... | 1 |
| 12 | 109856 | Tubo dal depuratore all''evaporatorePer GD fino vettura n. . . | 1 |
| 12 | 112118 | Tubo dal depuratore all''evaporatorePer GD dalla vettura n. . . . .In alternativa n. 1 16729 | 1 |
| 12 | 109867 | Tubo dal depuratore all''evaporatorePer GS dalla vettura n. ..…- In alternativa n. 1 16726 | 1 |
| 13 | 109324 | Tubo dal Pevaporatore all''compressorePer GS fino vettura n. ..... | 1 |
| 13 | 112123 | Tubo dall''evaporatore al compressorePer AUS dalla vettura n. .....In alternativa n. 116731 | 1 |
| 13 | 112119 | Tubo dall''evaporatore al compressorePer GD dalla vettura n. .....In alternativa n. 116730 | 1 |
| 13 | 109855 | Tubo dall''evaporatore al compressorePer GD fino vettura n. . . . . | 1 |
| 13 | 109868 | Tubo dal evaporatore al compressorePer GS dalla vettura n….In alternativa n. 60724800 | 1 |
| 13 | 110368 | Tubo dall''evaporatore al compressorePer AUS fino vettura n. . . . . | 1 |
| 14 | 110367 | Tubo dal compressore al condensatoreIn alternativa n. 1 16727 | 1 |
| 15 | 106647 | Depuratore | 1 |
| 16 | 100460 | Pressostato di massima | 1 |
| 17 | 106646 | Raccordo per pressostato | 1 |
| 18 | 106498 | Supporto pressostato | 1 |
| 19 | 17668901 | Vite | 3 |
| 20 | 15896211 | Dado | 2 |
| 21 | 12601278 | Rondella | 2 |
| 22 | 109818 | Evaporatore completoCol complessivo n. 60183605 | 1 |
| 22 | 60183605 | Gruppo condizionatore completoNon vale per GD | 1 |
| 22 | 60361003 | Gruppo condizionatore completoVale per GD | 1 |
| 22 | 112120 | Evaporatore completoCol complessivo n. 60361003 | 1 |
| 23 | 101990 | Interruttore | 1 |
| 24 | 107144 | Rondella | 2 |
| 25 | 105911 | Dado | 1 |
| 26 | 109819 | Termostato tarato | 1 |
| 27 | 105908 | Pomello per commutatore | 1 |
| 28 | 105907 | Pomello per termostato | 1 |
| 29 | 109820 | Piastrina indice comandi | 1 |
| 30 | 107142 | Resistenza per commutatore | 1 |
| 31 | 106644 | Valvola espansione | 1 |
| 32 | 105905 | Fascetta per bulbo | 1 |
| 33 | 107216 | Anello OR per valvola | 1 |
| 34 | 12574211 | Dado | 1 |
| 35 | 109481 | Dado fissaggio ventola | 2 |
| 36 | 109483 | Rondella | 2 |
| 37 | 109483 | Rondella di spallamento ventola | 2 |
| 38 | 111872 | Guarnizione motorino | 2 |
| 39 | 112012 | Vite | 2 |
| 40 | 106850 | Rondella | 2 |
