Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

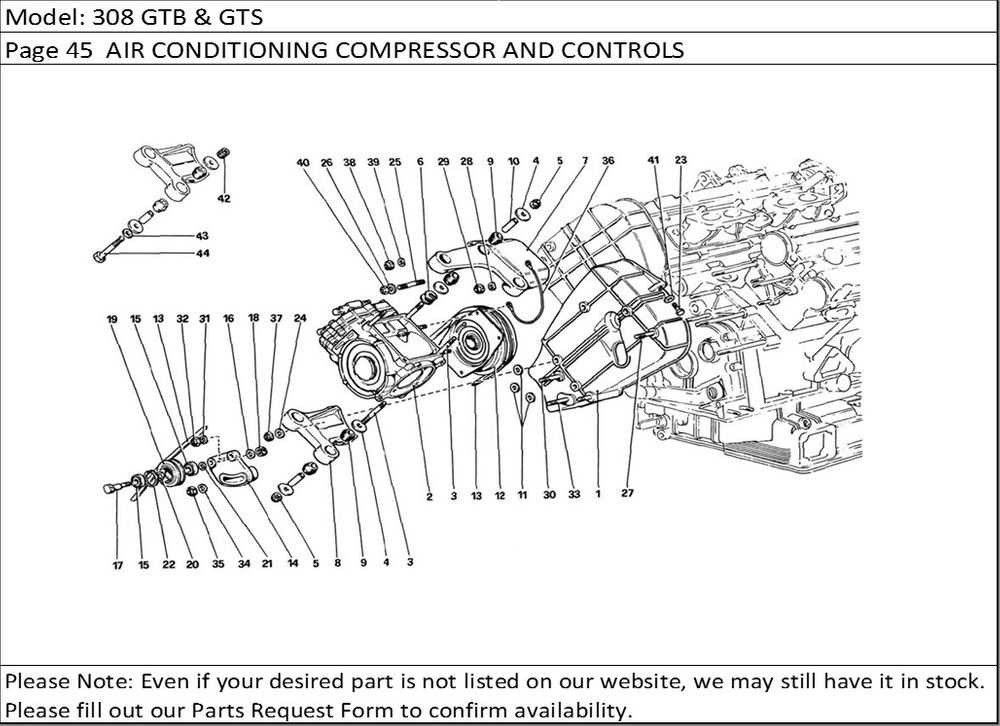

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 108098 | Carter Sx. completo | 1 |
2 | 115776 | Compressore (ASPERA Frigo HG 700 AP)Vale dalla vettura n. 28807 | 1 |
2 | 106607 | Compressore (ASPERA Frigo HG 700 AP)Vale fino alia vettura n. 28805 | 1 |
3 | 105044 | THREADED STUDFino alla vettura n. 28805 | 5 |
4 | 108051 | Rondella tranciataDalla vettura n. 28807 q = 5 | 10 |
5 | 12574511 | Dado autobloccanteFino alla vettura n. 28805 q = 5 | 5 |
6 | 105039 | Rondella {di eventuale montaggio}Dalla vettura n. 28807 q = 3 | 6 |
7 | 108050 | Supporto superiore | 1 |
8 | 108056 | SUpporto inferiore | 1 |
9 | 107335 | Supporto in gomma | 10 |
10 | 108052 | Tubetto distanziale | 5 |
11 | 107835 | Rondella distanziale fra carter e supporto inferiore | 3 |
12 | 105148 | Giunto con rotazione antioraria | 1 |
13 | 105046 | Cinghia comando Compressore | 1 |
14 | 105051 | Supporto galoppino tendicinghia | 1 |
15 | 105038 | Cuscinetto | 2 |
16 | 103025 | Rondella | 1 |
17 | 105048 | Perno per supporto | 1 |
18 | 16105121 | Dado autobloccante | 1 |
19 | 107840 | Puleggia per tendicinghia | 1 |
20 | 107841 | Distanziale intemo | 1 |
21 | 107842 | Distanziale | 1 |
22 | 11059075 | Anello seeger | 1 |
23 | 13540821 | PrigionieioVale per GTS | 1 |
23 | 10979411 | Bullone fissaggio massaNon vale per GTS | 1 |
24 | 107993 | Rondella | 1 |
25 | 13546621 | Piigioniero fissaggio supporto super. | 1 |
26 | 12601471 | Rondella | 1 |
27 | 13517221 | Prigioniero per supporto superiore | 1 |
28 | 12601371 | Rondella | 1 |
29 | 16104111 | Dado autobloccante | 1 |
30 | 13449921 | Prigionieio | 1 |
31 | 12601471 | Rondella | 1 |
32 | 12574511 | Dado autobloccante | 1 |
33 | 13517421 | Prigionieio fissaggio tendicinghia | 1 |
34 | 13550321 | Rondella | 1 |
35 | 16104111 | Dado autobloccante | 1 |
36 | 108043 | Cavetto di massa | 1 |
37 | 102742 | Dado autobloccante | 2 |
38 | 12574521 | Dado autobloccante | 1 |
39 | 12601471 | Rondella | 1 |
40 | 12574511 | Dado | 1 |
41 | 11197771 | Rondella | 1 |
42 | 13526070 | Heli - coilVale dalla vettura n. 28807 | 2 |
43 | 106853 | RondellaVale dalla vettura n. 28807 | 2 |
44 | 11288031 | BulloneVale dalla vettura n. 28807 | 2 |
