Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

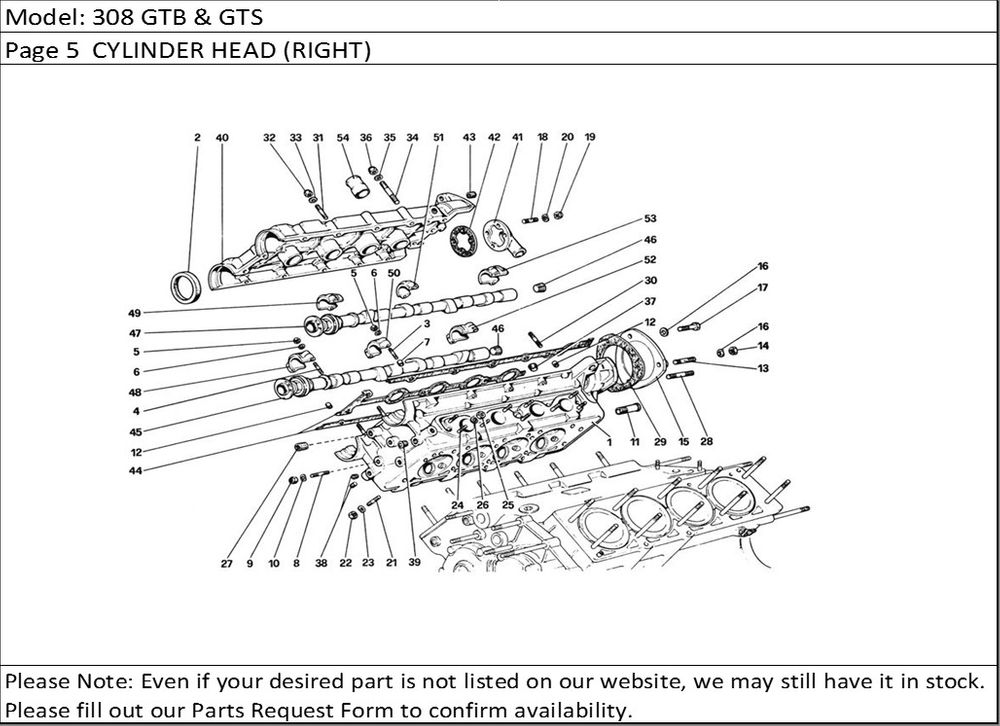

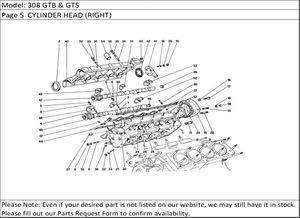

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 116474 | Testa cilindri Dx. completaVale per GTS - Dopo esaur. n. 111026 | 1 |
| 1 | 116545 | Testa cilindriCol complessivo n. 1 1 6535 - e n. 116474 | 1 |
| 1 | 107326 | Testa cilindriCol complessivo n. 109373 - en. 111026 | 1 |
| 1 | 111026 | Testa cilindri Dx. completaVale per GTS - Fino ad esaurimento | 1 |
| 1 | 116535 | Testa cilindri Dx. completaNon vale per GTS - Vale dopo esaur. n. 109373 | 1 |
| 1 | 109373 | Testa cilindri Dx. completaNon vale per GTS - Vale fino ad esaurimento | 1 |
| 2 | 105389 | Anello di tenuta | 2 |
| 3 | 102735 | Prigioniero per cappelli intermedi | 12 |
| 4 | 102754 | Prigioniero per cappelli esteni | 8 |
| 5 | 15896211 | Dado | 20 |
| 6 | 11197773 | Rondella | 20 |
| 7 | 102725 | Grano | 20 |
| 8 | 13517121 | Prigioniero per supporto tendicinghia | 3 |
| 9 | 16104411 | Dado autobloccante | 3 |
| 10 | 12601371 | Rondella | 3 |
| 11 | 106227 | Raccordo per uscita acqua | 1 |
| 12 | 102725 | Grano di centraggio | 2 |
| 13 | 13517011 | Prigioniero cortoNon vale per AUS | 1 |
| 14 | 16100811 | Dado | 1 |
| 15 | 108889 | Coperchietto interno testa Dx. | 1 |
| 16 | 12601371 | Rondella | 3 |
| 17 | 16043611 | Vite | 1 |
| 18 | 11500321 | THREADED STUD | 4 |
| 19 | 102741 | Dado autobloccante | 4 |
| 20 | 12601271 | Rondella | 4 |
| 21 | 13543321 | THREADED STUD | 8 |
| 22 | 105938 | Dado | 8 |
| 23 | 106852 | Rondella | 8 |
| 24 | 13543321 | THREADED STUDPer AUS q = 7 | 9 |
| 25 | 16100811 | Dado | 9 |
| 26 | 11198071 | RondellaPer AUS q = 7 | 9 |
| 27 | 105197 | Heli-coil | 1 |
| 28 | 13517211 | Prigioniero lungoNon vale per AUS | 1 |
| 29 | 103815 | Guarnizione | 1 |
| 29 | 147642 | Distributor Cap Base GasketUse on exhaustion of 103815 | 1 |
| 30 | 13541721 | THREADED STUD | 2 |
| 31 | 13541621 | THREADED STUD | 10 |
| 32 | 100044 | Dado autobloccante | 12 |
| 33 | 12601271 | Rondella | 12 |
| 34 | 10982021 | THREADED STUD | 4 |
| 35 | 12601271 | Rondella | 4 |
| 36 | 101239 | Dado autobloccante | 4 |
| 37 | 10269750 | Tappo | 3 |
| 38 | 14326150 | Tappo | 3 |
| 39 | 10269450 | Tappo | 1 |
| 40 | 107316 | Coperchio testa Dx. (con la testa completa)Vale per GTS | 1 |
| 40 | 109347 | Coperchio testa Dx. (con la testa completa)Non vale per GTS | 1 |
| 41 | 103808 | Coperchio e sfiato posteriore | 1 |
| 42 | 103809 | Guarntizione | 1 |
| 43 | 103830 | Heli-coil | 1 |
| 44 | 107312 | Guarnizione | 1 |
| 45 | 109438 | Albero distribuzione scarico Dx.Col complessivo n. 108977 | 1 |
| 45 | 108977 | Albero distribuzione scarico Dx.completa | 1 |
| 46 | 10269750 | Tappo | 2 |
| 47 | 108006 | Albero distribuzione aspirazione Dx.completeVale solo per AUS | 1 |
| 47 | 107994 | Albero distribuzione aspirazione Dx.Col complessivo n. 108006 | 1 |
| 47 | 108892 | Albero distribuzione aspirazione Dx.Col complessivo n. 108915 | 1 |
| 47 | 108915 | Albero distribuzione aspirazione Dx.completo | 1 |
| 48 | 115464 | Cappello anterioreDopo esaur. n. 105988 -105989 - 106836 - 106837-106838- 106839 - Con la testa cilindri completa | 1 |
| 48 | 105988 | Cappello anterioreFino ad esaurimento - Con la testa cilindri completa | 1 |
| 49 | 105989 | Cappello antetioreFino ad esaurimento - Con la testa cilindri completa | 1 |
| 49 | 115465 | Cappello anterioreDopo esaur. n. 105988 -105989 - 106836 - 106837-106838- 106839 - Con la testa cilindri completa | 1 |
| 50 | 106836 | Cappello intermedioFino ad esaurimento - Con la testa cilindri completa | 3 |
| 50 | 116461 | Cappello intermedioDopo esaur. n. 105988 -105989 - 106836 - 106837-106838- 106839 - Con la testa cilindri completa | 3 |
| 51 | 116458 | Cappello intermedioDopo esaur. n. 105988 -105989 - 106836 - 106837-106838- 106839 - Con la testa cilindri completa | 3 |
| 51 | 106837 | Cappello intermedioFino ad esaurimento - Con la testa cilindri completa | 3 |
| 52 | 106838 | Cappello posterioreFino ad esaurimento - Con la testa cilindri completa | 1 |
| 52 | 116459 | Cappetlo posterioreDopo esaur. n. 105988 -105989 - 106836 - 106837-106838- 106839 - Con la testa cilindri completa | 1 |
| 53 | 106839 | Cappello posterioreFino ad esaurimento - Con la testa cilindri completa | 1 |
| 53 | 116460 | Cappello posterioreDopo esaur. n. 105988 -105989 - 106836 - 106837-106838- 106839 - Con la testa cilindri completa | 1 |
| 54 | 112903 | Terminale per sede candetaDal motore n. 00963 GTB e n. 02969 GTS e AUS | 4 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
