Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

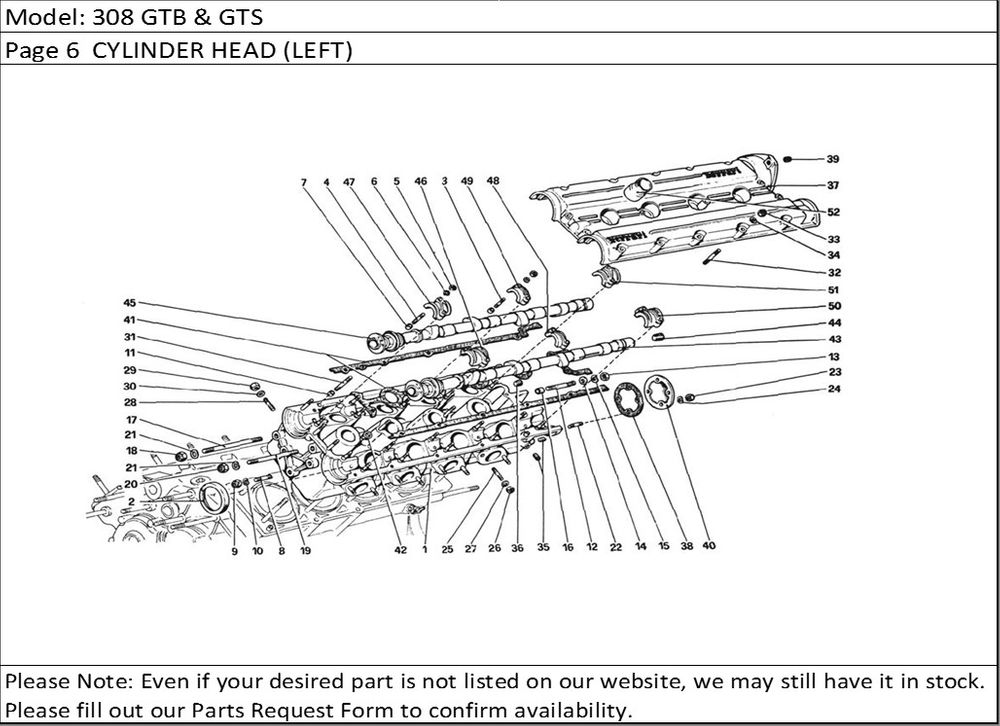

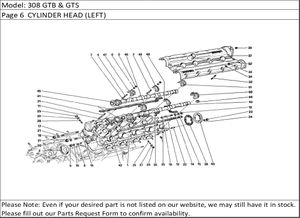

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 107111 | Testa cilindri Sx. completaFino ad esaurimento | 1 |
1 | 116475 | Testa cilindri Sx. completaDopo esaurimento n. 1071 1 1 | 1 |
1 | 105939 | Testa cilindri Sx.Col complessivo n. 1071 1 1 | 1 |
1 | 116455 | Testa cilindri Sx.Col complessivo n. 1 16475 | 1 |
2 | 105389 | Anello di tenuta | 2 |
3 | 102735 | Prigioniero per cappelli intermedi | 12 |
4 | 102754 | Prigioniero per cappelli esterni | 8 |
5 | 15896211 | Dado | 20 |
6 | 11197773 | Rondella | 20 |
7 | 102725 | Grano | 20 |
8 | 13517121 | Prigioniero fissaggio supporto tendicinghia | 3 |
9 | 16104411 | Dado autobloccante | 3 |
10 | 12601371 | Rondella | 3 |
11 | 102725 | Grano di centraggio | 2 |
12 | 13517421 | Prigioniero fissaggio distributorePer AUS q - 4 | 2 |
13 | 16100811 | Dado | 2 |
14 | 10519601 | Rondella | 1 |
15 | 11198071 | Rondella | 2 |
16 | 102704 | Grano di centraggio | 2 |
17 | 107923 | Prigioniero fissaggio carterDopo esaur. vale n. 11 5237 | 1 |
18 | 12574521 | Dado autobloccante | 1 |
19 | 13953221 | THREADED STUD | 1 |
20 | 102742 | Dado autobloccante | 1 |
21 | 12601471 | Rondella | 2 |
22 | 11500321 | THREADED STUD | 4 |
23 | 102741 | Dado autobloccante | 4 |
24 | 12601271 | Rondella | 4 |
25 | 13543321 | THREADED STUD | 8 |
26 | 105938 | Dado | 8 |
27 | 106852 | Rondella | 8 |
28 | 13516921 | Prigioniero fissaggio collettore e fascetta tubo acqua | 1 |
28 | 13543321 | Prigioniero fissaggio collettore | 8 |
29 | 16100811 | Dado | 9 |
30 | 11198071 | Rondella | 9 |
31 | 13541771 | THREADED STUD | 2 |
32 | 13541621 | THREADED STUD | 14 |
33 | 100044 | Dado autobloccante | 16 |
34 | 12601271 | Rondella | 16 |
35 | 14326150 | Tappo | 3 |
36 | 10269450 | Tappo | 1 |
37 | 105964 | Coperchio testa Sx. (Non a ricambio)Con testa cilindri completa | 1 |
38 | 104694 | GuarnizionePer AUS q = 2 | 1 |
39 | 103830 | Heli-coilPer AUS q = 2 | 1 |
40 | 103796 | Coperchio posteriore | 1 |
41 | 105965 | GuarnizionePer AUS q = 2 | 1 |
42 | 10269750 | Tappo | 3 |
43 | 105713 | Albero distribuzione scarico Sx.Col complessivo n. 1071 18 | 1 |
43 | 107118 | Albero distribuzione scarico Sx.completoVale per AUS | 1 |
43 | 109440 | Albero distribuzione scarico Sx.Col complessivo n. 108978 | 1 |
43 | 108978 | Albero distribuzione scarico Sx.completoNon vale per AUS | 1 |
44 | 10269750 | Tappo | 1 |
45 | 108990 | Albero distribuzione aspirazione Sx.completoNon vale per AUS | 1 |
45 | 108007 | Albero distribuzione aspirazione Sx.completoVale per AUS | 1 |
45 | 108989 | Albero di stribuzione asp. Sx.Col complessivo n. 108990 | 1 |
45 | 107995 | Albero distribuzione asp. Sx.Col complessivo n. 108007 | 1 |
46 | 106834 | Cappello anterioreFino ad esaurimento Con la testa cilindri completa | 1 |
46 | 115466 | Cappello anterioreVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - completa | 1 |
46 | 115466 | Cappello anterioreVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - compl | 1 |
47 | 115467 | Cappello anterioreVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - completa | 1 |
47 | 115467 | Cappello anterioreVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - compl | 1 |
47 | 106835 | Cappello anterioreFino ad esaurimento Con la testa cilindri completa | 1 |
48 | 116461 | Cappello intermedioVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - completa | 3 |
48 | 106836 | Cappello intermedioFino ad esaurimento Con la testa cilindri completa | 3 |
48 | 116461 | Cappello intermedioVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - compl | 3 |
49 | 116458 | Cappello intermedioVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - completa | 3 |
49 | 106837 | Cappello intermedioFino ad esaurimento Con la testa cilindri completa | 3 |
49 | 116458 | Cappello intermedioVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - compl | 3 |
50 | 106838 | Cappello posterioreFino ad esaurimento Con la testa cilindri completa | 1 |
50 | 116459 | Cappello posterioreVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - compl | 1 |
50 | 116459 | Cappello posterioreVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - completa | 1 |
51 | 116460 | Cappello posterioreVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - compl | 1 |
51 | 106839 | Cappello posterioreFino ad esaurimento Con la testa cilindri completa | 1 |
51 | 116460 | Cappello posterioreVale dopo esaurimento n. 106834- 106835-106836- 106837- 106838-106839- Con la testa cilindri - completa | 1 |
52 | 112903 | Terminale per sede candelaDal motore n. 00963 GTB e n. 02969 GTS e AUS | 4 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
