Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

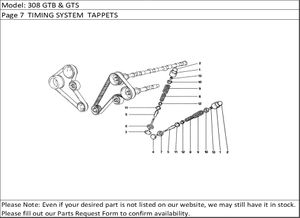

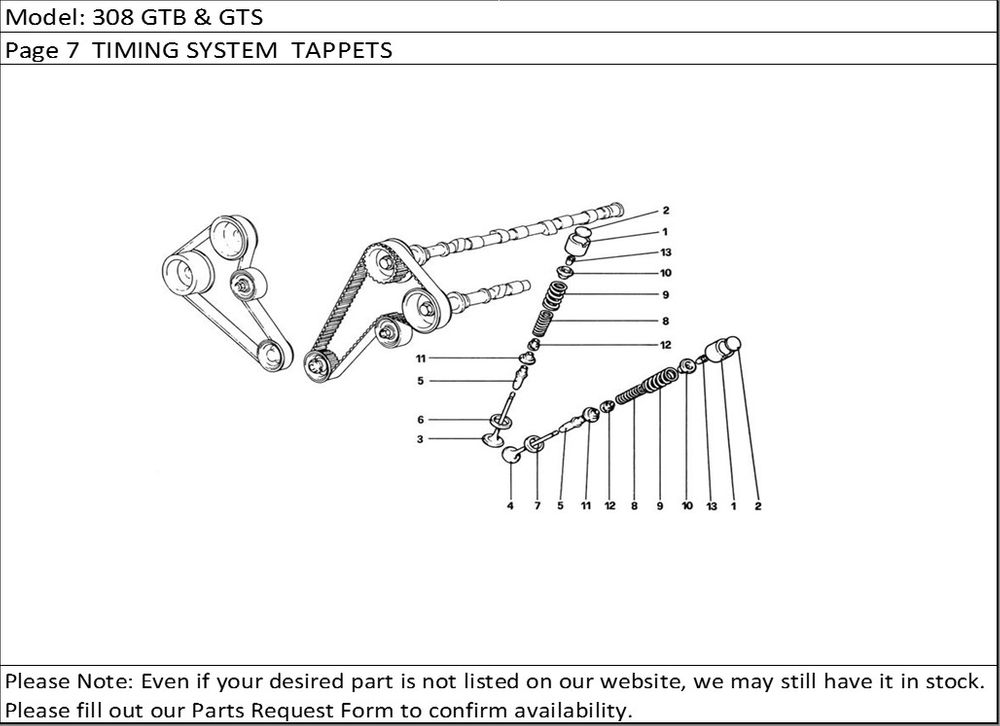

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 100232 | Punteria cornando valvola | 16 |
| 2 | 116101 | Idem spessore mm. 3,72 | 16 |
| 2 | 116100 | Idem spessore mm. 3,67 | 16 |
| 2 | 102835 | Idem spessore mm. 3,60 | 16 |
| 2 | 102833 | Idem spessore mm. 3,50 | 16 |
| 2 | 108670 | Idem spessore mm. 3,40 | 16 |
| 2 | 108668 | Idem spessore mm. 3,30 | 16 |
| 2 | 102842 | Idem spessore mm, 4,25 | 16 |
| 2 | 108669 | Idem spessore mm. 3,35 | 16 |
| 2 | 108667 | Idem spessore mm. 3,25 | 16 |
| 2 | 116102 | Idem spessore mm. 3,77 | 16 |
| 2 | 102852 | Idem spessore mm. 4.45 | 16 |
| 2 | 116103 | Idem spessore mm. 3,82 | 16 |
| 2 | 102854 | Idem spessore mm. 4,55 | 16 |
| 2 | 102850 | Idem spessore mm. 4,35 | 16 |
| 2 | 102847 | Idem spessore mm. 4,20 | 16 |
| 2 | 102846 | Idem spessore mm. 4,15 | 16 |
| 2 | 102845 | Idem spessore mm. 4,10 | 16 |
| 2 | 102844 | Idem spessore mm. 4,05 | 16 |
| 2 | 102843 | Idem spessore mm. 4,00 | 16 |
| 2 | 116105 | Idem spessore mm. 3,92 | 16 |
| 2 | 116104 | Idem spessore mm. 3,87 | 16 |
| 2 | 108671 | Idem spessore mm. 3,45 | 16 |
| 2 | 102834 | Idem spessore mm. 3,55 | 16 |
| 2 | 102849 | Idem spessore mm. 4,30 | 16 |
| 2 | 102853 | Idem spessore mm. 4,50 | 16 |
| 2 | 104347 | Idem spessore mm. 4,60 | 16 |
| 2 | 102851 | Idem spessore rnm. 4.40 | 16 |
| 2 | 102848 | Piattello registrazione valvole spessore mm. 3.95 | 16 |
| 2 | 116109 | Idem spessore mm. 4,12 | 16 |
| 2 | 116110 | Idem spessore mm. 4,17 | 16 |
| 2 | 116108 | Idem spessore mm. 4,07 | 16 |
| 2 | 116107 | Idem spessore mm. 4,02 | 16 |
| 2 | 102836 | Idem spessore mm. 3,65 | 16 |
| 2 | 102837 | Idem spessore mm. 3,70 | 16 |
| 2 | 102338 | Idem spessore mm. 3,75 | 16 |
| 2 | 102839 | Idem spessore mm. 3,80 | 16 |
| 2 | 102841 | Idem spessore mm. 3,90 | 16 |
| 2 | 102840 | Idem spessore mm. 3,85 | 16 |
| 2 | 116106 | Idem spessore mm. 3,97 | 16 |
| 3 | 103575 | Valvola di aspirazione | 8 |
| 4 | 106553 | Valvola di scarico | 8 |
| 5 | 102857 | Guida valvola | 16 |
| 5 | 107026 | Guida valvola maggiorata | 16 |
| 6 | 105722 | Sede valvota aspirazione | 8 |
| 7 | 102859 | Sede valvola scarico | 8 |
| 8 | 100239 | Molla interna richiamo valvola | 16 |
| 9 | 100240 | Molla esterna richiamo valvola | 16 |
| 10 | 106180 | Scodellmo superiore tenuta moile | 16 |
| 11 | 106181 | Scodellino inferiore tenuta molle | 16 |
| 12 | 100243 | Paraolio sulla guida valvola | 16 |
| 13 | 102862 | Semicono per scodellino nolla valvola | 32 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
