Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

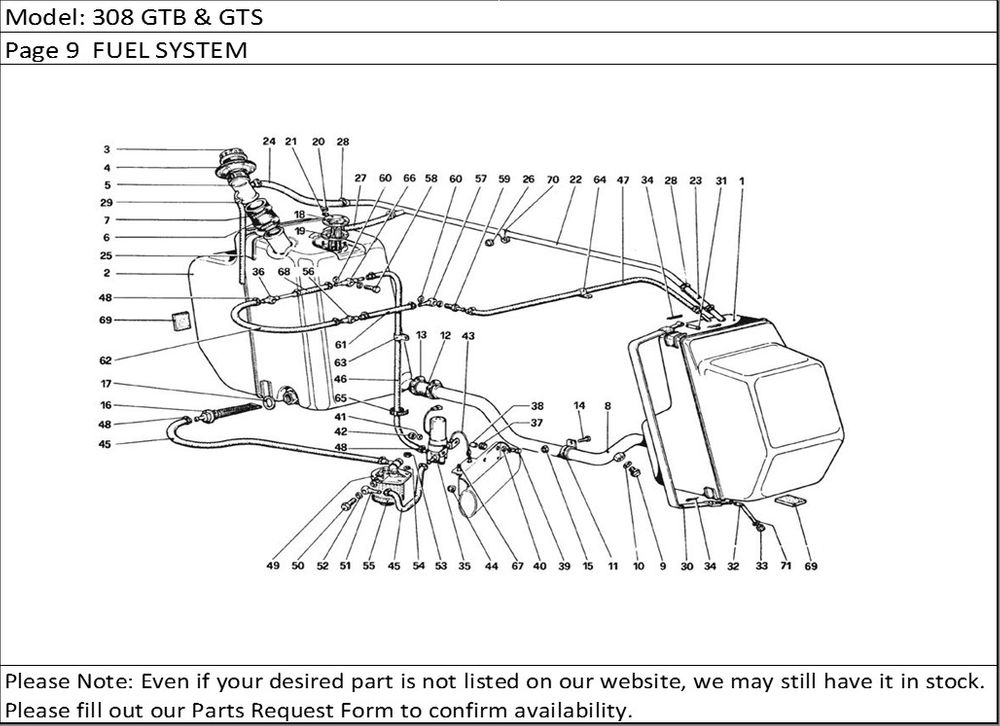

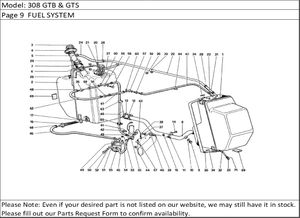

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 108137 | Serbatoio carburante Dx. | 1 |
| 2 | 108138 | Serbatoio carburante Sx. | 1 |
| 3 | 101453 | Tappo di caricoDopo esaur. Vale n. 113401 | 1 |
| 4 | 101465 | Guarnizione per bocchettone | 1 |
| 5 | 109321 | Bocchettone di carico | 1 |
| 6 | 114282 | Manicotto per bocchettone | 1 |
| 7 | 12174790 | Fascetta | 2 |
| 8 | 106675 | Tubo collegamento serbatoi | 1 |
| 9 | 10300771 | Tappo scarico carburante | 1 |
| 10 | 10278650 | Guarnizione | 1 |
| 11 | 106195 | Fascetta f issaggio tubo | 1 |
| 12 | 114277 | Manicotto | 2 |
| 13 | 108785 | Fascetta | 4 |
| 14 | 10902121 | Vite | 1 |
| 15 | 12574211 | Dado | 1 |
| 16 | 104528 | Filtro carburante sul serbatoio | 1 |
| 17 | 102645 | Guarnizione | 1 |
| 18 | 108644 | Comando indicators di livello | 1 |
| 19 | 101462 | Guarnizione | 1 |
| 20 | 10794011 | Dado | 6 |
| 21 | 106848 | Rondella | 6 |
| 22 | 108521 | Tubo sfiato serbatoio Dx. Col bocchettone | 1 |
| 23 | 109353 | Tubo per sfiato | 1 |
| 24 | 109354 | Tubo per sfiato | 1 |
| 25 | 12574211 | Dado autobloccante | 3 |
| 25 | 106666 | Tubo per sfialo | 1 |
| 27 | 109353 | Tubo sfiato serbatoio Sx. | 1 |
| 28 | 100507 | Fascetta | 6 |
| 29 | 101296 | Fascetta | 1 |
| 30 | 109328 | Nastro fissaggio serbatoi | 2 |
| 31 | 103447 | Perno | 2 |
| 32 | 12311271 | Tirante | 2 |
| 33 | 16104111 | Dado | 2 |
| 34 | 10796401 | Copiglia | 6 |
| 35 | 105454 | Pompa benzina elettrica | 1 |
| 36 | 107795 | Raccordo posteriore Sx. | 1 |
| 37 | 103549 | Gommino fissaggio pompa | 2 |
| 38 | 103550 | Boccola | 2 |
| 39 | 10902611 | Bullone | 2 |
| 40 | 12643701 | Rondella | 2 |
| 41 | 12644401 | Rondella | 2 |
| 42 | 12574211 | Dado autobloccante | 1 |
| 43 | 106153 | Cavo di massa | 1 |
| 44 | 16104111 | Dado autobloccante | 3 |
| 45 | 106654 | Tubo da filtro su serbatoio al filtro FISPA edal filtro FlSPA alla pompaDopo esaurimanto vale n. 116765 | 2 |
| 46 | 103927 | Tubo dalla pompa al raccordo sui carburatoriDopo esaurimanto vale n. 116775 | 1 |
| 47 | 103928 | Tubo dai carburatori al serbatoio Dx. per ricicloDopo esaurimento vale n. 116757 | 1 |
| 48 | 10168590 | Fascetta per tubazioni alimentazione | 14 |
| 49 | 103401 | Filtro carburante FISPA | 1 |
| 49 | 107486 | Filtro carburante FIAMMIn alternativa a n. 103401 | 1 |
| 50 | 103402 | Bocchettone per orientabile | 2 |
| 51 | 105926 | Orientabile | 2 |
| 52 | 103403 | GuarnizioneDopo esaur. vale n. 1 0280060 | 4 |
| 53 | 16100811 | Dado | 2 |
| 54 | 12601371 | Rondella | 2 |
| 55 | 95180050 | Elemento filtrante per filtro FISPAPer filtro FIAMM vale n. 95180061 | 1 |
| 56 | 106199 | Raccordo posteriore Dx. | 1 |
| 57 | 106200 | Raccordo anteriore Dx. | 1 |
| 58 | 10181717 | Bocchettone per tubo alimentazione | 3 |
| 59 | 108032 | Bocchettone per tubo alimentazione e riciclo | 1 |
| 60 | 10296160 | Guarnizione | 8 |
| 61 | 106201 | Tubo collegamento carburatoriDopo esaur. vale n. 1 14877 | 1 |
| 62 | 106202 | Tubo collegamento carburatoriDopo esaur. vale n. 1 14880 | 1 |
| 63 | 10418600 | Fascetta sostegno tubo | 2 |
| 64 | 10418400 | Fascetta sostegno tubo | 1 |
| 65 | 105549 | Fascetta fissaggio tubo | 1 |
| 66 | 107793 | Raccordo ingresso carburante | 1 |
| 67 | 16043621 | Vite fissaggio filtro al supporto | 2 |
| 68 | 105489 | Tubo collegamento carburatoriDopo esaur. vale n. 114875 | 2 |
| 69 | 107889 | Spessore adattamento serbatoi | 10 |
| 70 | 10441590 | Fascetta | 3 |
| 71 | 13605711 | Distanziale | 2 |
