Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

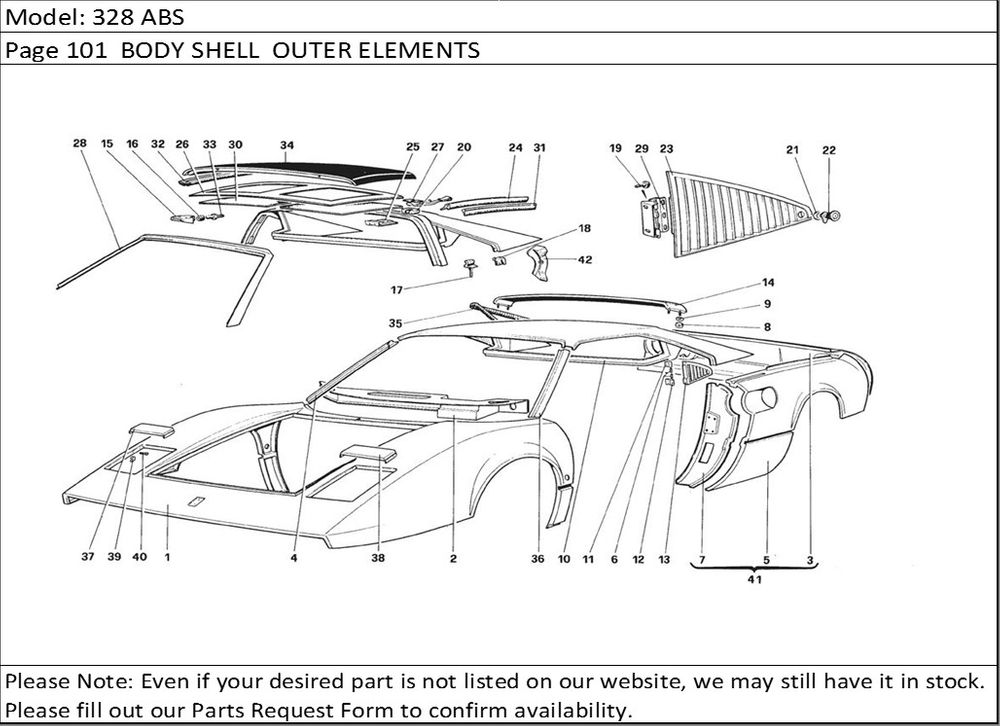

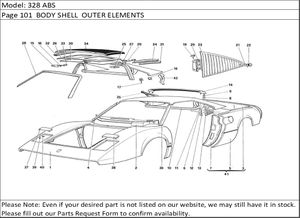

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 61751200 | Front panel. Not for US - J - SA | 1 |
1 | 61778000 | Front panel. US - J - SA | 1 |
2 | 61851100 | (V) Panel RHD | 1 |
2 | 61797700 | (V) Panel LHD | 1 |
2 | 62534800 | (N) Panel RHD | 1 |
3 | 61109600 | Rear panel - Not for US - J - SA | 1 |
3 | 61874600 | Rear panel - US - J - SA | 1 |
4 | 61141100 | Panel for R.H. post - GTB | 1 |
5 | 62354300 | R.H. rear fender - GTB - US - AUS - C7 - J - SA - From car no. 69369 | 1 |
5 | 60585700 | R.H. rear fender - GTB - US - AUS - J - SA - Until car no. 69367 | 1 |
5 | 60359205 | L.H. rear fender - GTB - Nor for US - AUS - C7 - J - SA - Until car no. 69367 | 1 |
5 | 62352100 | L.H. rear fender - GTB - Not for US - AUS - C7 - J - SA - From car no. 69369 | 1 |
5 | 62354400 | L.H. rear fender - GTB - US - AUS - C7 - J - SA - C8 - From car no. 69369 | 1 |
5 | 60585800 | L.H. rear fender - GTB - US - AUS - J - SA - C8 - Until car no. 69367 | 1 |
5 | 60586000 | L.H. rear fender - GTS - AUS - US - C7 - C8 | 1 |
5 | 60359007 | L.H. rear fender -GTS - Not for US - AUS - C7 - C8 | 1 |
5 | 62352000 | R.H. rear fender - GTB - Not for AUS - US - C7 - J - SA - From car no. 69369 | 1 |
5 | 60585900 | R.H. rear fender - GTS - AUS - US - C7 - C8 | 1 |
5 | 60358900 | R.H. rear fender - GTS - Not for US - AUS - C7 - C8 | 1 |
5 | 60359106 | R.H. rear fender - GTB - Not for AUS - US - C7 - J - SA - Until car no. 69367 | 1 |
6 | 60042108 | Pin - GTB | 2 |
7 | 60891100 | L.H. pilar for fender- RHD | 1 |
7 | 60216801 | R.H. pilar for fender - LHD | 1 |
7 | 60891000 | R.H. pilar for fender - RHD | 1 |
7 | 60216900 | L.H. pilar for fender- LHD | 1 |
8 | 12574211 | Nut | 4 |
9 | 12643701 | Washer | 4 |
10 | 60214806 | Roof panel - GTB | 1 |
11 | 60040805 | Upple hinge - GTB | 1 |
12 | 60040706 | Lower hinge - GTB | 1 |
13 | 60337409 | L.H. grill - GTB | 1 |
13 | 60370004 | R.H. grill - GTB | 1 |
14 | 61290200 | Rough spoyler | 1 |
14 | 61024700 | Sleek spoyler | 1 |
15 | 60336807 | Front bracket - GTS | 2 |
16 | 60433604 | Protection for pin - GTS | 2 |
17 | 60551400 | Central grommet - GTS | 2 |
18 | 61989600 | Rear grommet - GTS - Until car 76681 only on R.H. side | 2 |
19 | 60892600 | Grommet - GTS | 4 |
20 | 60395506 | Handle protection - GTS | 2 |
21 | 61819400 | Ring nut for grill - GTS | 2 |
22 | 61819300 | Block for grill - GTS '' | 2 |
23 | 61818700 | L.H. grill - GTS | 1 |
23 | 61818600 | R.H. grill - GTS | 1 |
24 | 60608300 | R.H. gutter - GTS | 1 |
24 | 60608400 | L.H. gutter - GTS | 1 |
25 | 60500500 | Rear bracket - GTS | 2 |
26 | 61203000 | Covering - GTS | 1 |
27 | 60421500 | Handle - GTS | 2 |
28 | 60872700 | Framework for windshield - GTS | 1 |
29 | 60325305 | Grill hinge - GTS | 2 |
30 | 61202900 | L.H. covering - GTS | 1 |
30 | 61202800 | R.H. covering - GTS | 1 |
31 | 60608500 | Gasket - GTS | 2 |
32 | 60398104 | Gasket - GTS - To exhaustionCar 68345 | 2 |
32 | 62341700 | R.H. gasket - GTS - After exhaustion 60398104 | 1 |
32 | 62341800 | L.H. gasket - GTS - After exhaustion 60398104 | 1 |
33 | 60189008 | Front pin - GTS | 2 |
34 | 61128700 | Hard top - GTS | 1 |
35 | 60528300 | Gasket | 2 |
36 | 61141200 | Panel for L.H. post - GTB | 1 |
37 | 61810800 | R.H. cover | 1 |
38 | 61810900 | L.H. cover | 1 |
39 | 20273603 | Clip | 8 |
40 | 15903878 | Screw | 8 |
41 | 61901700 | Rear panel complete - GTS - Not for US - J - SA | 1 |
41 | 62348500 | Rear panel complete - GTB - US - J - SA - From car no. 69369 | 1 |
41 | 62346200 | Rear panel complete - GTB - Not for US - J - SA - From car no. 69369 | 1 |
41 | 61874800 | Rear panel complete - GTS - US - J - SA | 1 |
41 | 61874500 | Rear panel complete - GTB - US - J - SA - Until car no. 69367 | 1 |
41 | 61901500 | Rear panel complete - GTB - Not for US - J - SA - Until car no. 69367 | 1 |
42 | 62460200 | L.H. Rear grommet - GTS - From car no. 76681 | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
