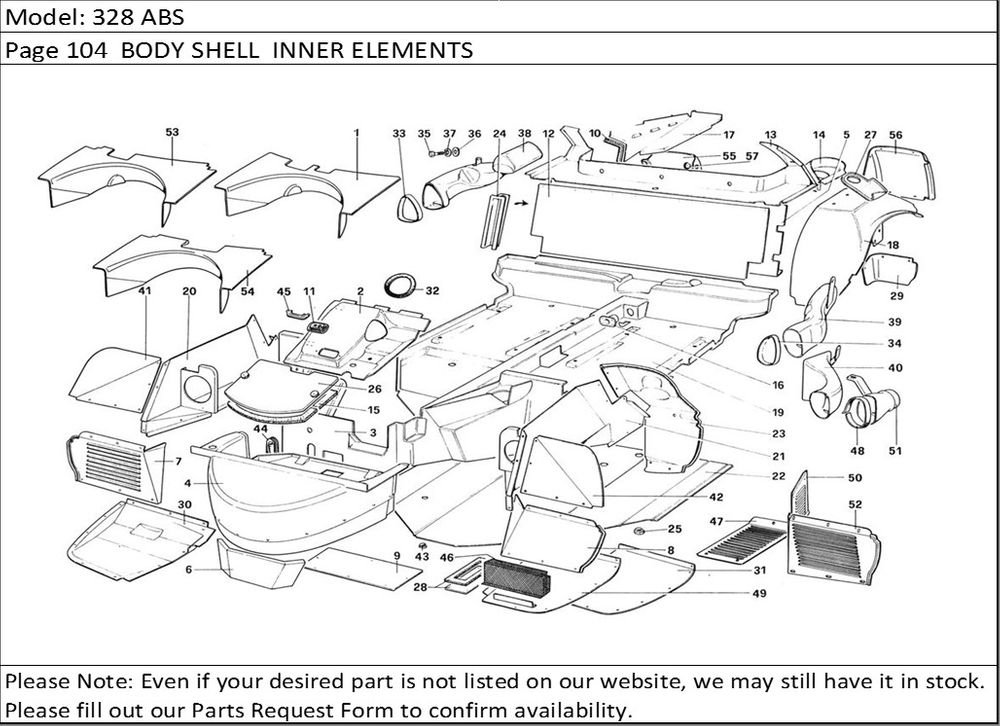

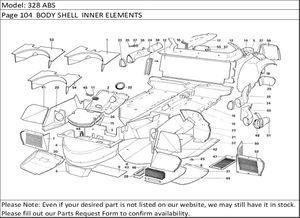

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 60350501 | (V) Cover LHD - Not for US - J - SA | 1 |
1 | 60351806 | (V) Cover RHD | 1 |
2 | 61933200 | (V) Cover RHD - From car 64653 | 1 |
2 | 61827700 | (V) Cover LHD - Until car 64651 | 1 |
2 | 61851500 | (V) Cover RHD - Until car 64651 | 1 |
2 | 61932100 | (N) Cover LHD - From car 64653 | 1 |
2 | 62535000 | (N) Cover RHD | 1 |
3 | 61778600 | (V) Front panel GTS - LHD | 1 |
3 | 62485900 | (N) Front panel GTB - LHD | 1 |
3 | 61851600 | (V) Front panel GTB - RHD | 1 |
3 | 62535100 | (N) Front panel GTB - RHD | 1 |
3 | 62501200 | (N) Front panel GTS - LHD | 1 |
3 | 62575200 | (N) Front panel GTS - RHD | 1 |
3 | 61755800 | (V) Front panel GTB - LHD | 1 |
3 | 61872800 | (V) Front panel GTS - RHD | 1 |
4 | 62484600 | (N) Housing for wheel | 1 |
4 | 61748800 | (V) Housing for wheel | 1 |
5 | 60719400 | Panel GTS - US - J - SA | 1 |
5 | 62440900 | Panel GTS - C8 | 1 |
5 | 60706500 | Panel GTB - US - J - SA | 1 |
5 | 62335300 | Panel GTS - AUS | 1 |
5 | 61193700 | Panel GTB - Not for US - J - SA - AUS | 1 |
5 | 61194200 | Panel GTS - Not for US - J - SA - RHD - C8 | 1 |
5 | 61194300 | Panel GTS - RHD - Not for AUS | 1 |
5 | 62335700 | Panel GTB - AUS | 1 |
6 | 60351707 | Battery protection | 1 |
7 | 61750200 | R.H. front gravel guardNot for US - J -SA | 1 |
7 | 61897200 | (V) R. H. front gravel guard US - J -SA | 1 |
7 | 61750200 | (*N) R.H. front gravel guard US - J - SA | 1 |
8 | 61750300 | (V) L.H. front gravel guard - Not for US - J - SA | 1 |
8 | 61897300 | (V) L.H. front gravel guard - US - J -SA | 1 |
9 | 60208600 | Panel RHD | 1 |
9 | 60059706 | Panel LHD | 1 |
10 | 60251808 | Gasket | 1 |
11 | 60197703 | Fair lead RHD - Until car 64651 | 1 |
11 | 61932400 | Fair lead LHD - From car 64653Until exha. | 1 |
11 | 61933400 | Fair lead RHD - From car 64653Until exha. | 1 |
11 | 62616800 | Fair lead - After exha. 61932400 - 61933400 | 1 |
11 | 60054905 | Fair lead LHD - Until car 64651 | 1 |
12 | 60850800 | Alluminum panel GTS - GS + (GTB US - SA - J - C7 - C*) | 1 |
12 | 61081000 | Panel GTS - RHDGTB - AUS | 1 |
13 | 61128400 | Plane rear window GTS | 1 |
13 | 61010800 | Plane rear window GTBUntil car 69367 | 1 |
13 | 62351000 | Plane rear window GTBFrom car 69369 | 1 |
14 | 60342904 | Fuel filler chambel GTS | 1 |
14 | 60441201 | Fuel filler chambel GTB | 1 |
15 | 60031101 | Gasket | 1 |
16 | 40169005 | Bushing RHD | 1 |
16 | 60084704 | Bushing LHD | 1 |
17 | 62542400 | (N) Inner panel L.H. - MY 89 - US - J - SA | 1 |
17 | 60956800 | (N) Inner panel L.H. - MY 88 - US - J - SA | 1 |
17 | 60956800 | (V) Inner panel L.H. | 1 |
17 | 60956900 | Inner panel R.H. | 1 |
17 | 62542400 | (N) Inner panel L.H. - Not for US - J - SA | 1 |
18 | 61874300 | L.H. wheeihouse - Until car 66799 - AUS - US - J - SA | 1 |
18 | 62345300 | L.H. wheelfhous - From car 66801 - AUS - SA - J - US - C7 - C8 | 1 |
18 | 61875000 | L.H. wheelouse - Until car 66799 - Not for AUS - C7 - C8 | 1 |
18 | 61874200 | R.H. wheeihouse - Until car 66799 - AUS-US-J-SA | 1 |
18 | 61991700 | L.H. wheeihouse - From car 66801 - Not for AUS - C7 - C8 | 1 |
18 | 61874900 | R.H. weelhouse - Until car 66799 - Not for AUS- C7 - C8 | 1 |
18 | 62345200 | R.H. wheeihouse - From car 66801 - AUS - US - J - SA - C7 - C8 | 1 |
18 | 61991600 | R.H. wheeihouse - From car 66801 - Not for AUS - C7 - C8 | 1 |
19 | 61856800 | (V) Resin flat bed GTS - RHD | 1 |
19 | 61748100 | Resin flat bed GTB - LHD | 1 |
19 | 61767200 | Resin flat bed GTS - LHD | 1 |
19 | 61842400 | (V) Resin flat bed GTB - RHD | 1 |
19 | 62556000 | (N) Resin flat bed GTS - RHD | 1 |
19 | 62555800 | (N) Resin flat bed GTB - RHD | 1 |
20 | 62484900 | (N) Front wheeihouse (RH) | 1 |
20 | 61749800 | (V) Front wheeihouse (RH) | 1 |
21 | 62485000 | (N) Front wheeihouse (LH) | 1 |
21 | 61749900 | (V) Front wheeihouse (LH) | 1 |
22 | 60270006 | Under flat bed RHD | 1 |
22 | 60880900 | Under flat bed LHD | 1 |
23 | 61859100 | R.H. gravel guard GTB - RHD | 1 |
23 | 61849800 | L.H. gravel guard GTB | 1 |
23 | 61850000 | L.H. gravel guard GTS | 1 |
23 | 61870600 | R.H. gravel guard GTS - RHD | 1 |
23 | 61849900 | R.H. gravel guard GTS - LHD | 1 |
23 | 61849700 | R.H. gravel guard GTB - LHD | 1 |
24 | 60093903 | Protection for ripes GTB - Not for US - J - SA - GD - C7 - C8 | 1 |
24 | 60241908 | Protection for pipes GT - RHD - Not for AUS | 1 |
25 | 40305203 | Plug | 2 |
26 | 60279809 | Cover for battery | 1 |
27 | 60134202 | Gasket for filler | 1 |
28 | 60225000 | Cover RHD | 1 |
29 | 61770300 | R.H. rear cover - Until car 66799 - Not for US - J - SA - AUS | 1 |
29 | 61770400 | L.H. rear cover - Until car 66799 - Not for US - J - SA - AUS | 1 |
29 | 62515900 | (N) R.H. rear cover. US - J - SA - C8 | 1 |
29 | 62516000 | (N) L.H. rear cover US - J - SA - C8 | 1 |
29 | 62515800 | (N) L.H. rear cover - Not for US - J - SA - C8 | 1 |
29 | 61992100 | (V) L.H. rear cover - From car 66801 - US - J - AUS - C7 - C8 | 1 |
29 | 62340400 | (V) R.H. rear cover - From car 66801 - Not for US - J - SA - AUS - C7 - C8 | 1 |
29 | 62340500 | (V) L.H. rear cover - From car 66801 - Not for US - J - SA - AUS - C7 - C8 | 1 |
29 | 61992000 | (V) R.H. rear cover - From car 66801 - US - J - SA - AUS - C7 - C8 | 1 |
29 | 61883700 | R.H. rear cover - Until car 66799 - US-J-SA-AUS | 1 |
29 | 61883800 | L.H. rear cover - From car 66801 - US-J-SA-AUS | 1 |
29 | 62515700 | (N) R.H. rear cover - Not for US - J - SA - C8 | 1 |
30 | 61975700 | R.H. Cover - From car 66801 | 1 |
30 | 61771800 | R.H. Cover - Until car 66799 | 1 |
31 | 61771900 | L.H. cover - Without bracket | 1 |
32 | 61932600 | Gasket LHD - From car 64653 | 1 |
32 | 61933500 | Gasket RHD - From car 64653 | 1 |
32 | 60186103 | Gasket RHD - Until car 64651 | 1 |
32 | 60055001 | Gasket LHD - Until car 64651 | 1 |
33 | 60200300 | R.H. grill D only | 1 |
34 | 60200409 | L.H. grill D only | 1 |
35 | 10902121 | Screw | 2 |
36 | 12643721 | Washer | 2 |
37 | 106850 | Washer | 2 |
38 | 62365400 | R.H. air duct C7 - C8 - Until 31-5-88 | 1 |
38 | 61299600 | R.H. air duct - Until 31-5-88 - NotforC7-C8 | 1 |
38 | 62500300 | R.H. air duct - From 1-6-88 | 1 |
39 | 60373602 | L.H. air duct - Until car 75272 - Not for US-J-SA-AUS - C7 | 1 |
39 | 62432400 | L.H. air duct - From car 75273 - Not for USA - J - SA - AUS - C7 - C8 | 1 |
40 | 62468500 | L.H. air duct US - J - SA - AUS - C7 - C8 - From 1-4-88 | 1 |
40 | 61823500 | L.H. air duct. US - J - SA - AUS - C7 - C8 - Until 31-3-88 | 1 |
41 | 61755400 | R.H. gravel guard | 1 |
42 | 61755500 | L.H. gravel guard | 1 |
43 | 60659400 | Plug | 1 |
44 | 101100 | Fair lead | 1 |
45 | 61932500 | Cover for fair lead - From car 64653 - Only with fair lead 61932400 and 61933400 | 1 |
46 | 61945900 | Grill + filter for electro fan - Until car 76075 SA - J - US | 1 |
46 | 61947700 | Grill + filter for electro fan - Until car 76075 - Not foro US - J - SA | 1 |
47 | 62492500 | (N) protection grill | 1 |
48 | 61049000 | Gasket | 1 |
49 | 61947300 | L.H. cover - Only for cars with filter 61947700 e 61945900 | 1 |
50 | 62492400 | (N) Protection grill | 1 |
51 | 62432400 | L.H. air duct - From car 75273 - Not for US - J - SA - AUS - C7 - C8 | 1 |
52 | 62485100 | (N) L.H. front gravel guard - Not for US - J - SA | 1 |
52 | 62576700 | (N) L.H. front gravel guard US - J - SA | 1 |
53 | 60351905 | (N) Cover LHD - Not for ABS - For US - J - SA - valid for all models without ABS | 1 |
54 | 62548900 | (N) Cover RHD with ABS - Not for AUS | 1 |
54 | 62486000 | (N) Cover LHD with ABS | 1 |
54 | 62591300 | (N) Cover - AUS with ABS | 1 |
55 | 61991400 | R.H. cover | 1 |
56 | 61991500 | L.H. cover | 1 |
57 | 40134108 | Plug | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
