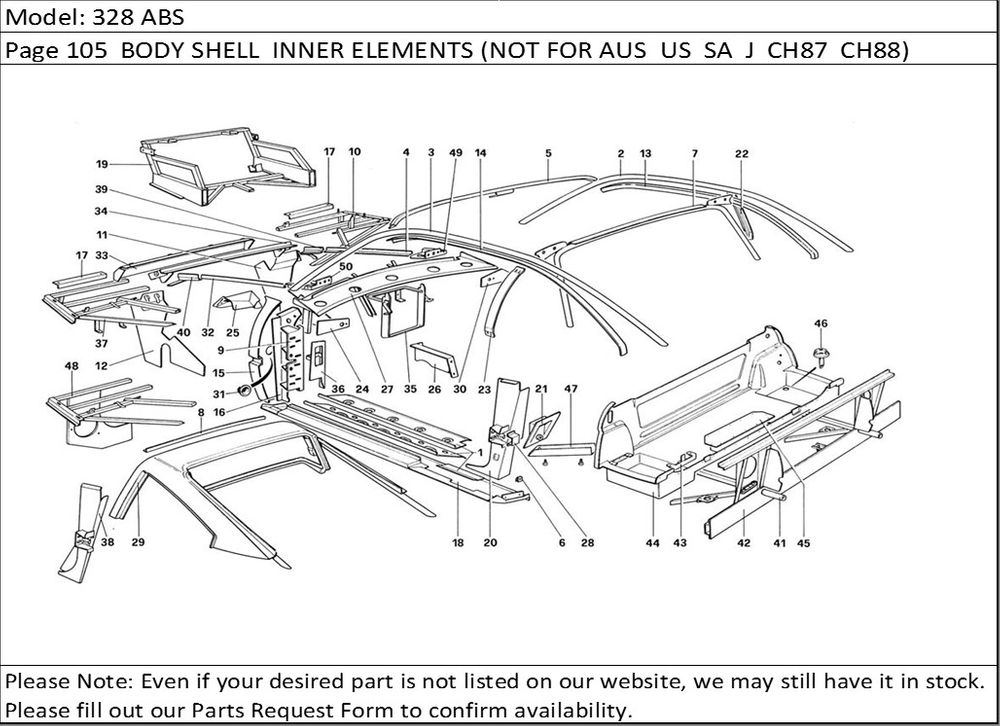

328 ABS Page 105 BODY SHELL INNER ELEMENTS (NOT FOR AUS US SA J CH87 CH88)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 60419603 | Panel, L.H. door sill GTS | 1 |
| 1 | 60303202 | Panel, L.H. door sill GTB | 1 |
| 1 | 60419504 | Panel, R.H. door sill GTS | 1 |
| 2 | 61010000 | R.H. rail GTB | 1 |
| 3 | 61010100 | L.H. rail GTB | 1 |
| 4 | 60350808 | (N) R.H. stiffening | 1 |
| 4 | 60350204 | (V) R.H. stiffening RHD | 1 |
| 4 | 60350006 | (V) R.H. stiffening LHD | 1 |
| 5 | 60371309 | Front rib roof GTB | 1 |
| 6 | 60361805 | Clip | 4 |
| 7 | 60296001 | Rear rib for roof | 1 |
| 8 | 60560400 | Angle | 1 |
| 9 | 60285202 | Post fixing hinge | 2 |
| 10 | 61748400 | R.H. front frame | 1 |
| 11 | 61748200 | R.H. shield panel radiator LHD | 1 |
| 11 | 61842600 | R.H. shield panel radiator RHD - Until car 68461 | 1 |
| 11 | 62343800 | R.H. shield panel radiator RHD - From car 68463 | 1 |
| 12 | 61748300 | L.H. shield panel radiator | 1 |
| 13 | 62350100 | R.H. rear rail GTB - From car 69369 | 1 |
| 13 | 62349900 | R.H. front rail GTB - From car 69369 | 1 |
| 13 | 60260106 | Sheet R.H. rail GTB - Until car 69367 | 1 |
| 14 | 62350200 | L.H. rear rail GTB - Until car 69369 | 1 |
| 14 | 62350000 | L.H. front rail GTB - From car 69369 | 1 |
| 14 | 60260007 | Sheet L.H. rail GTB - Until car 69367 | 1 |
| 15 | 60252509 | Hinge post L.H. door | 1 |
| 15 | 60252400 | Hinge post R.H. door | 1 |
| 16 | 61009800 | (V) Sheet for R.H. pillar | 1 |
| 16 | 60397205 | (N) Sheet for L.H. Pillar | 1 |
| 16 | 61009900 | (V) Sheet for L.H. pillar | 1 |
| 16 | 60397106 | (N) Sheet for R.H. pillar | 1 |
| 17 | 60652200 | Bracket for headlamps | 4 |
| 18 | 60003902 | Outer panel L.H. door sill | 1 |
| 18 | 60003803 | Outer panel R.H. door sill | 1 |
| 19 | 130112 | Front frame - From car 68463 | 1 |
| 19 | 129903 | Front frame - Until car 68461 | 1 |
| 20 | 60302403 | R.H. panel GTB | 1 |
| 20 | 60302304 | L.H. panel GTB | 1 |
| 21 | 60347705 | Support | 2 |
| 22 | 60260403 | R.H. post, complete GTB - Until car 69367 | 1 |
| 22 | 62350300 | R.H. post complete GTB - From car 69369 | 1 |
| 23 | 60260502 | L.H. post complete GTB - Until car 69367 | 1 |
| 23 | 62350400 | L.H. post complete GTB - From car 69369 | 1 |
| 24 | 60259306 | L.H. plate under windshield LHD | 1 |
| 24 | 61883300 | R.H. plate under windhsield RHD | 1 |
| 25 | 61902300 | Bracket for windshield wiper motor RHD | 1 |
| 25 | 61851800 | Bracket for windshield wiper motor LHD | 1 |
| 26 | 60106903 | (V) Support LHD | 1 |
| 26 | 60193109 | (V) Support RHD | 1 |
| 26 | 62555500 | (N) Support RHD | 1 |
| 26 | 62491900 | (N) Support LHD | 1 |
| 27 | 62608100* | (N) Stiffening under windshield - AUS | 1 |
| 27 | 61862600 | (V) Stiffening under windshield RHD | 1 |
| 27 | 62534400* | (N) Stiffening under windshield RHD - Not for AUS | 1 |
| 27 | 61862100 | (V) Stiffening under windshield LHD | 1 |
| 27 | 62495600* | (N) Stiffening under windshield LHD | 1 |
| 28 | 62514300 | R.H. bracket | 1 |
| 28 | 62514400 | L.H. bracket | 1 |
| 29 | 61128800 | Roof assembly GTS | 1 |
| 30 | 61850300 | R.H. plate under windshield LHD | 1 |
| 30 | 61851400 | R.H. plate under windshield RHD | 1 |
| 31 | 60284304 | Plug | 2 |
| 32 | 60350907 | (N) L.H. stiffening | 1 |
| 32 | 60397908 | (V) L.H. stiffening LHD | 1 |
| 32 | 60350402 | (V) L.H. stiffening RHD | 1 |
| 33 | 61772600 | Shieldpanel radiator | 1 |
| 34 | 61772400 | Support | 2 |
| 35 | 61846900 | Support RHD | 1 |
| 35 | 61793300 | Support LHD | 1 |
| 36 | 60640100 | Support GTS - RHD | 1 |
| 36 | 60640200 | Support GTS - LHD | 1 |
| 37 | 61748500 | L.H. front frame - Until car 76080 | 1 |
| 38 | 60421203 | R.H. panel GTS | 1 |
| 38 | 60421302 | L.H. panel GTS | 1 |
| 39 | 61854600 | R.H. stiffening | 1 |
| 40 | 61854700 | L.H. stiffening | 1 |
| 41 | 61825400 | Support | 2 |
| 42 | 61847100 | Rear frame RHD | 1 |
| 42 | 61754700 | Rear frame LHD | 1 |
| 43 | 61861200 | Support | 1 |
| 44 | 61862800 | Panel - Until car 66799 | 1 |
| 44 | 61989200 | Panel - From car 66801 | 1 |
| 45 | 60810000 | - | 1 |
| 46 | 60731300 | Plug | 2 |
| 47 | 61842500 | Protection LHD | 1 |
| 47 | 61914600 | Protection RHD | 1 |
| 48 | 62439000 | (V) L.H. front frame - From car 76081 | 1 |
| 48 | 62518000 | (N) L.H. front frame | 1 |
| 49 | 61097700 | (N) R.H. bracket | 1 |
| 50 | 62350700 | Roof frame assembly GTB - From car 69369 | 1 |
| 50 | 61010500 | Roof frame assembly GTB - Until car 69367 | 1 |
| 50 | 61097800 | (N) L.H. Bracket | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
