Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

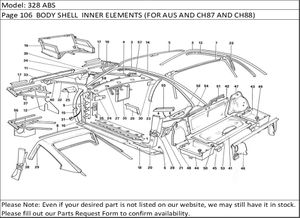

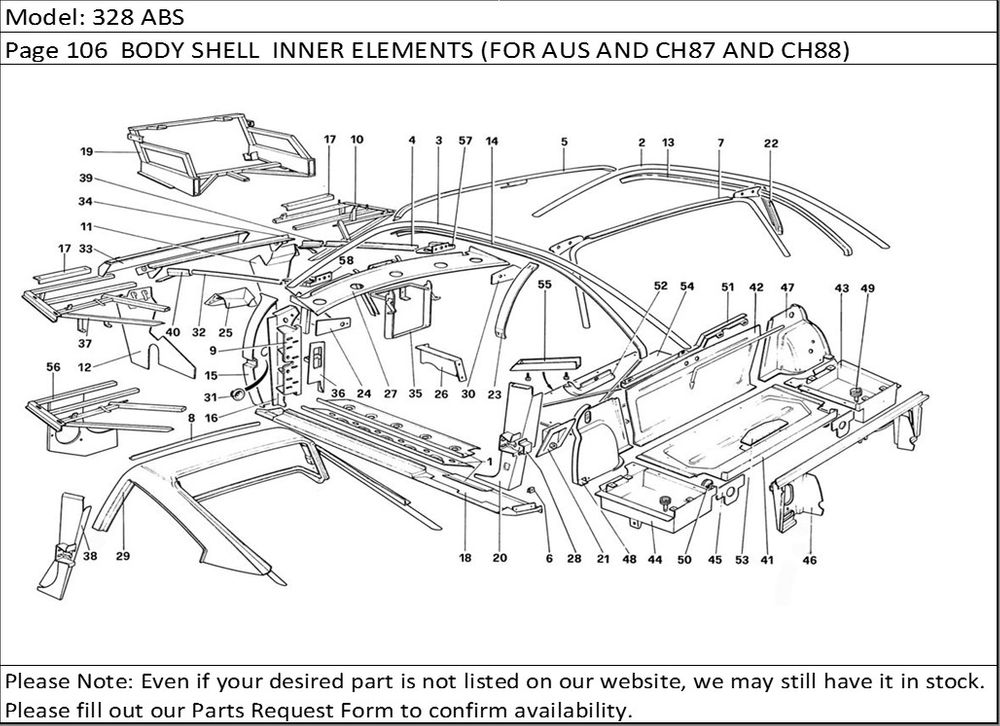

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 60419603 | Panel, L.H. door sill GTS | 1 |
1 | 60419504 | Panel, R.H. door sill GTS | 1 |
1 | 60303302 | Panel, L.H. door sill GTB | 1 |
2 | 61010000 | R.H. rail GTB | 1 |
3 | 61010100 | L.H. rail GTB | 1 |
4 | 60350006 | (V) R.H. stiffening CH | 1 |
4 | 60350204 | (V) R.H. stiffening AUS | 1 |
4 | 60350808 | (N) R.H. stiffening CH- AUS | 1 |
5 | 60371309 | Front rib roof GTB | 1 |
6 | 60361805 | Clip | 4 |
7 | 60296001 | Rear rib for roof | 1 |
8 | 60560400 | Angle | 1 |
9 | 60285202 | Post fixing hinge | 2 |
10 | 61748400 | R.H. front frame | 1 |
11 | 61748400 | R.H. shield panel radiator CH | 1 |
11 | 62343800 | R.H. sheld panel radiator AUS - From car 68463# | 1 |
11 | 61842600 | R.H. shield panel radiator AUS - Until car 68461 | 1 |
12 | 61748300 | L.H. shield panel radiator | 1 |
13 | 62349900 | R.H. front rail GTB - From car 69369 | 1 |
13 | 60260106 | Sheet R.H. rail GTB - Until car 69367 | 1 |
13 | 62350100 | R.H. rear rail GTB - From car 69369 | 1 |
14 | 62350000 | L.H. front rail GTB - From car 69369 | 1 |
14 | 62350200 | L.H. rear rail GTB - From car 69369 | 1 |
14 | 60260007 | Sheet L.H. rail GTB - Until car 69367 | 1 |
15 | 60252400 | Hinge post. R.H. door | 1 |
15 | 60252509 | Hinge post L.H. door | 1 |
16 | 60397106 | (N) Sheet for R.H. pillar CH | 1 |
16 | 61009900 | (V) Sheet for L.H. pillar CH - AUS | 1 |
16 | 61009800 | (V) Sheet for R.H. pillar CH- AUS | 1 |
16 | 60397205 | (N) Sheet for L.H. pillar CH | 1 |
17 | 60652200 | Bracket for headlamps | 4 |
18 | 60003803 | Outer panel R.H. door sill | 1 |
18 | 60003902 | Outer panel L.H. door sill | 1 |
19 | 129903 | Front frame AUS and C8 with ABS - For CH - Until 30-9-86 | 1 |
19 | 135685 | Front frame CH from 1-10-86 | 1 |
20 | 60295201 | R.H. panel GTB -AUS | 1 |
20 | 60302304 | L.H. panel GTB - CH | 1 |
20 | 60295300 | L.H. panel GTB - AUS | 1 |
20 | 60302403 | R.H. panel GTB - CH | 1 |
21 | 60347705 | Support | 2 |
22 | 60260403 | R.H. post complete GTB - Until car 69367 | 1 |
22 | 62350300 | R.H. post complete GTB - From car. 69369 | 1 |
23 | 62350400 | L.H. post complete GTB - From car 69369 | 1 |
23 | 60260502 | L.H. post complete GTB - Until car 69367 | 1 |
24 | 61883300 | R.H. plate under windhsield AUS | 1 |
24 | 60259306 | L.H. plate under windhsield CH | 1 |
25 | 61851800 | Bracket for windhsield wiper motor CH | 1 |
25 | 61902300 | Bracket for windshield wiper motor AUS | 1 |
26 | 60106903 | Support CH | 1 |
26 | 60193109 | Support AUS | 1 |
27 | 61862600 | (V) Stiffening under wind shield AUS | 1 |
27 | 62534400 | (N) Stiffening RHD - With parts 57 - 58 | 1 |
27 | 61862100 | (V) Stiffening under wind shield CH | 1 |
27 | 62495600 | (N) Stiffening LHD - With parts 57 - 58 | 1 |
28 | 62514300 | R.H. bracket | 1 |
28 | 62514400 | L.H. bracket | 1 |
29 | 61128800 | Roff assembly GTS | 1 |
30 | 61850300 | R.H. plate under windshield CH | 1 |
30 | 61851400 | R.H. plate under windshield AUS | 1 |
31 | 60284304 | Plug | 2 |
32 | 60350907 | (N) L.H. stiffening AUS | 1 |
32 | 60350402 | (V) L.H. stiffening AUS | 1 |
32 | 60397908 | (V) L.H. stiffening CH | 1 |
32 | 60350907 | (N) L.H. stiffening CH | 1 |
33 | 61772600 | Shieldpanel radiator | 1 |
34 | 61772400 | Support | 2 |
35 | 61846900 | Support AUS | 1 |
35 | 61793300 | Support CH | 1 |
36 | 60640200 | Support GTS - CH | 1 |
36 | 60640100 | Support GTS - AUS | 1 |
37 | 61748500 | L.H. front frame - Until car 76080 | 1 |
38 | 60432100 | L.H. panel GTS - AUS | 1 |
38 | 60421302 | L.H. panel GTS - CH | 1 |
38 | 60432000 | R.H. panel GTS - AUS | 1 |
38 | 60421203 | R.H. Panel GTS - CH | 1 |
39 | 61854600 | R.H. stiffening | 1 |
40 | 61854700 | L.H. stiffening | 1 |
41 | 61828600 | Panel | 1 |
42 | 61805800 | Panel | 1 |
43 | 61806200 | R.H. bottom panel AUS | 1 |
43 | 62431100 | R.H. bottom panel C8 | 1 |
43 | 61972300 | R.H. bottom panel C7 | 1 |
44 | 61972400 | L.H. bottom panel CH | 1 |
44 | 61806300 | L.H. bottom panel AUS | 1 |
45 | 61806900 | Sheet AUS | 2 |
45 | 61973100 | Sheet CH | 2 |
46 | 61976000 | Rear frame AUS | 1 |
46 | 61805700 | Rear frame CH | 1 |
47 | 62431200 | R.H. panel C8 | 1 |
47 | 61807000 | R.H. panel AUS - Until car 66799 | 1 |
47 | 61991800 | R.H. panel C7 - For AUS from car 66801 | 1 |
48 | 61807100 | L.H. panel AUS - Until car 66799 | 1 |
48 | 61991900 | L.H. panel C7 - For AUS from car 66801 | 1 |
49 | 60731300 | Plug | 2 |
50 | 14507187 | Plug | 2 |
51 | 61950900 | Protection C7 - AUS | 1 |
52 | 61951000 | Protection AUS | 1 |
53 | 60810000 | Cover | 1 |
54 | 132659 | Insulation panel CH | 1 |
55 | 61914600 | Protection AUS | 1 |
55 | 61842500 | Protection CH | 1 |
56 | 62439000 | (V) L.H. front frame - From car 76081 | 1 |
56 | 62518000 | (N) L.H. front frame | 1 |
57 | 61097700 | (N) R.H. bracket | 1 |
58 | 61097800 | (N) L.H. bracket | 1 |
58 | 61010500 | Roof frame assembly GTB - Until car 69367 | 1 |
58 | 62350700 | Roof frame assembly GTB - From car 69369 | 1 |
