Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

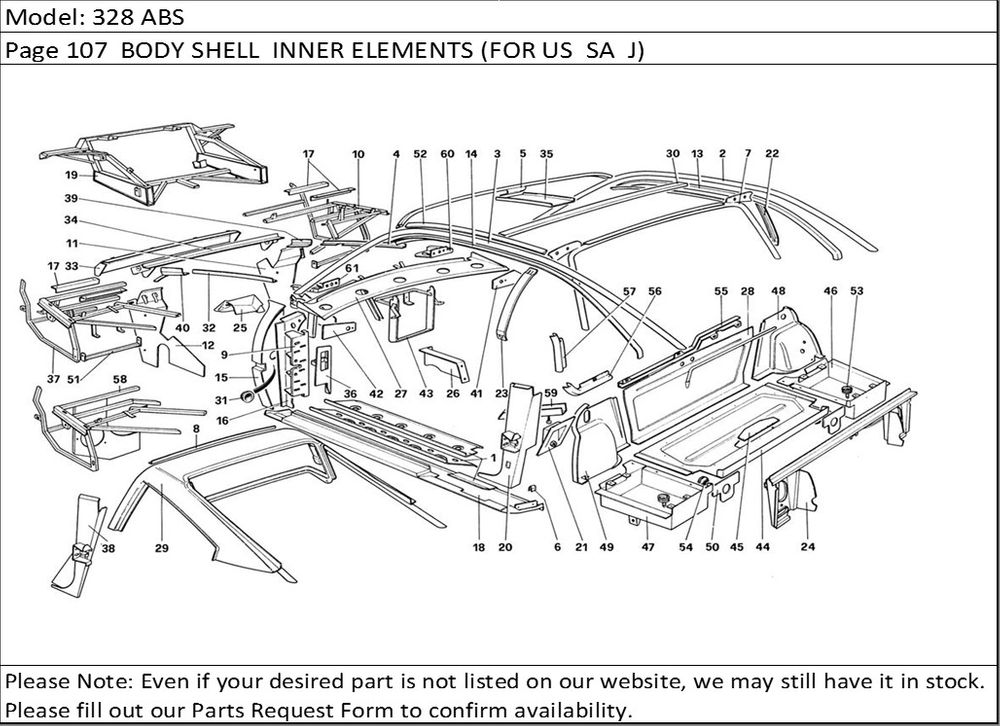

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 60919603 | Panel, L.H. door sill GTS | 1 |
1 | 60419504 | Panel, R.H. door sill GTS | 1 |
1 | 60303302 | Panel, L.H. door sill GTB | 1 |
2 | 61010000 | R.H. rail GTB | 1 |
3 | 61010100 | L.H. rail GTB | 1 |
4 | 60350808 | R.H. stiffening front bonnet | 1 |
5 | 60371309 | Front rib roof GTB | 1 |
6 | 60361805 | Clip | 1 |
7 | 60296001 | Rear rib for roof | 1 |
8 | 61885400 | Angle GTS - Not for SA- J | 1 |
9 | 60285202 | Post fixing hinge | 1 |
10 | 61743400 | R.H. front frame | 1 |
11 | 61775900 | R.H. shiled panel radiator | 1 |
12 | 61776000 | L.H. shiled panle radiator | 1 |
13 | 62349900 | Front R.H. rail GTB - From car 69369 | 1 |
13 | 60260106 | Sheet R.H. rail GTB - Until car 68367 | 1 |
13 | 62350100 | Rear R.H. rail GTB - From car 69369 | 1 |
14 | 62350000 | Front L.H. rail GTB - From car 69369 | 1 |
14 | 60260007 | Sheet L.H. rail GTB - Until car 69367 | 1 |
14 | 62350200 | Rear L.H. rail GTB - From car 69369 | 1 |
15 | 60252509 | Hinge post L.H. door | 1 |
15 | 60252400 | Hinge post. R.H. door | 1 |
16 | 61009900 | (V) Sheet for L.H. pillar | 1 |
16 | 60397205 | (N) Sheet for L.H. pillar | 1 |
16 | 60397106 | (N) Sheet for R.H. pillar | 1 |
16 | 61009800 | (V) Sheet for R.H. pillar | 1 |
17 | 60652200 | Bracket for headlamps | 1 |
18 | 60003902 | Outer panel L.H. door sill | 1 |
18 | 60003803 | Outer panel R.H. door sill | 1 |
19 | 129904 | Front frame R.H. panel GTB | 1 |
20 | 60295300 | R.H. post complete GTB | 1 |
20 | 60295201 | L.H. panel GTB Support | 1 |
21 | 60347705 | Support | 1 |
22 | 62350300 | L.H. post complete GTB - From car 69369 | 1 |
22 | 60260403 | R.H. post complete GTB - Until car 69367 | 1 |
23 | 62350400 | L.H. post complete GTB - From car 69369 | 1 |
23 | 60260502 | L.H. post complete GTB - Until car 69367 | 1 |
24 | 61805700 | Rear frame | 1 |
25 | 61851800 | Bracket for windhshield wiper motor | 1 |
26 | 60106903 | (V) Support | 1 |
26 | 62491900 | (N) Support | 1 |
27 | 62495600 | (N) Stiffening under wind shiled | 1 |
27 | 61862500 | (V) Stiffening under wind shield | 1 |
28 | 61805800 | Bulkhead | 1 |
29 | 61128800 | Roff assembly GTS | 1 |
30 | 60371705 | Central rib GTB | 2 |
31 | 60284304 | Plug | 1 |
32 | 60350907 | L.H. stiffening front ''bonnet | 1 |
33 | 61772600 | Shield panel radiator | 2 |
34 | 61898200 | Support | 1 |
35 | 60371002 | Stiffening for front rib GTB | 1 |
36 | 60640200 | Support GTS | 1 |
37 | 61743500 | L.H. front frame | 1 |
38 | 60432101 | L.H. panel GTS | 1 |
38 | 60432002 | R.H. panel GTS | 1 |
39 | 61854600 | R.H. stiffening | 1 |
40 | 61854700 | L.H. stiffening | 1 |
41 | 61850300 | R.H. plate under windshield | 1 |
42 | 60259306 | L.H. plate under windshiled | 1 |
43 | 61793300 | Support | 1 |
44 | 61828600 | Bottom panel for luggage comp. | 1 |
45 | 60810000 | Cover | 1 |
46 | 61806200 | R.H. side bottom for luggage comp. | 1 |
47 | 61806300 | L.H. side bottom for luggage comp. | 1 |
48 | 61991800 | R.H. sheet - From car 66801 | 1 |
48 | 61807000 | R.H. sheet - Until car. 66799 | 1 |
49 | 61991900 | L.H. sheet - From car 66801 | 1 |
49 | 61807100 | L.H. sheet - Until car 66799 | 1 |
50 | 61806900 | Sheet | 2 |
51 | 61746100 | Tubular reinforcement | 2 |
52 | 60371606 | Reinforcement GTB | 2 |
53 | 60731300 | Plug | 2 |
54 | 14507187 | Plug | 2 |
55 | 61950900 | Protection - Not for SA | 1 |
56 | 61951000 | Protection - Not for SA | 1 |
57 | 61951100 | Protection - Not for SA | 1 |
58 | 62440600 | (V) L.H. front crame - From car 76081 | 1 |
58 | 62507800 | (N) L.H. front frame | 1 |
59 | 61842500 | Protection | 1 |
60 | 61097700 | R.H. bracket | 1 |
61 | 61097800 | L.H. bracket | 1 |
61 | 62354000 | Roof frame assembly GTB - From car 69369 | 1 |
61 | 60370905 | Roof frame assembly GTB - Until car 69367 | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
