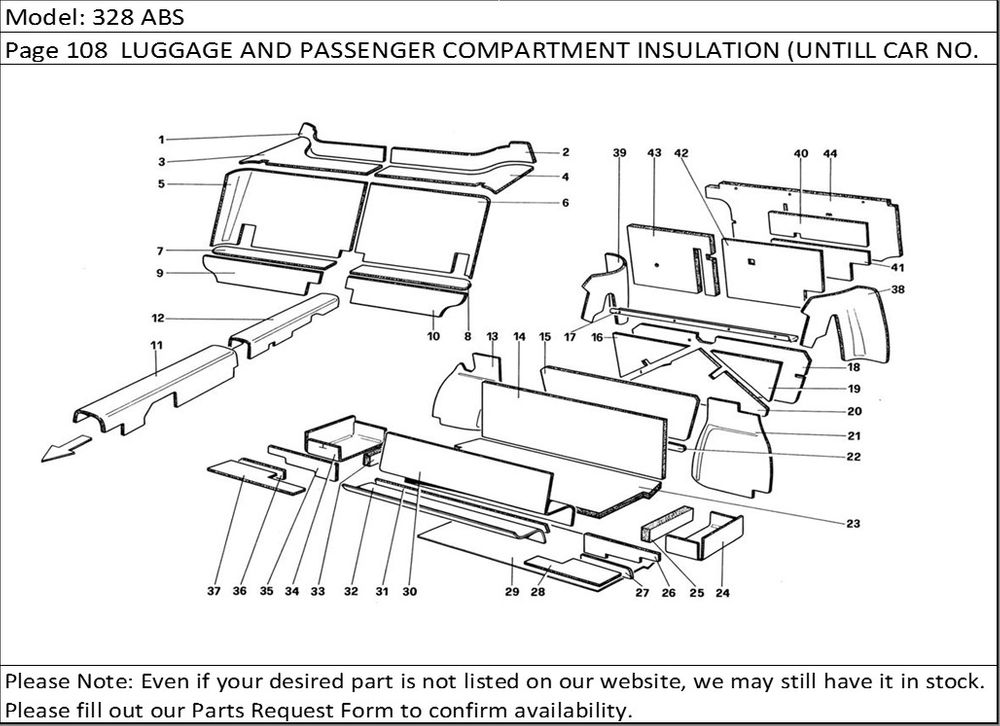

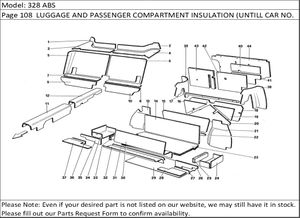

328 ABS Page 108 LUGGAGE AND PASSENGER COMPARTMENT INSULATION (UNTILL CAR NO. 66965 NOT FOR US AUS CH87 SA J)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 60352804 | Insulation | 1 |
| 2 | 60352903 | Insulation | 1 |
| 3 | 60353000 | Insulation GTS | 1 |
| 3 | 60412202 | Insulation GTB | 1 |
| 4 | 60353000 | Insulation GTS | 1 |
| 4 | 60412301 | Insulation GTB | 1 |
| 5 | 60158201 | Insulation GTB | 1 |
| 5 | 60353208 | Insulation GTS | 1 |
| 6 | 60353307 | Insulation GTS | 1 |
| 6 | 60158300 | Insulation GTB | 1 |
| 7 | 60158409 | Insulation GTB | 1 |
| 8 | 60158508 | Insulation GTB | 1 |
| 9 | 60158607 | Insulation GTB | 1 |
| 9 | 60353604 | Insulation GTS | 1 |
| 10 | 60353703 | Insulation GTS | 1 |
| 10 | 60158706 | Insulation GTB | 1 |
| 11 | 60218807 | Insulation RHD | 1 |
| 11 | 60109006 | Insulation LHD | 1 |
| 12 | 61860500 | Insulation RHD | 1 |
| 12 | 61860100 | Insulation LHD | 1 |
| 13 | 61798900 | Insulation | 1 |
| 14 | 61798800 | Insulation | 1 |
| 15 | 61799700 | Insulation | 1 |
| 16 | 61275800 | Insulation | 1 |
| 17 | 61830800 | Insulation fixing support | 1 |
| 18 | 61823600 | Insulation | 1 |
| 19 | 61275600 | Insulation | 1 |
| 20 | 61275700 | Insulation | 1 |
| 21 | 61799000 | Insulation | 1 |
| 22 | 61799400 | Insulation | 1 |
| 23 | 61818900 | Insulation | 1 |
| 24 | 61799100 | Insulation | 1 |
| 25 | 61819000 | Insulation | 1 |
| 26 | 61799600 | Insulation | 1 |
| 27 | 61876000 | Insulation | 1 |
| 28 | 61875800 | Insulation | 1 |
| 29 | 61875400 | Insulation | 1 |
| 30 | 61799300 | Insulation | 1 |
| 31 | 61875900 | Insulation | 1 |
| 32 | 61875600 | Insulation | 1 |
| 33 | 61819100 | Insulation | 1 |
| 34 | 61799200 | Insulation | 1 |
| 35 | 61799500 | Insulation | 1 |
| 36 | 61876100 | Insulation | 1 |
| 37 | 61875700 | Insulation | 1 |
| 38 | 61278500 | R.H. insulation - For C6 | 1 |
| 39 | 61278600 | L.H. insulation - For C6 | 1 |
| 40 | 61275200 | Insulation GTB - For C6 | 1 |
| 41 | 61275300 | Insulation GTB - For C6 | 1 |
| 42 | 61275400 | Insulation GTB - For C6 | 1 |
| 43 | 61275500 | Insulation GTB - For C6 | 1 |
| 44 | 61276100 | Insulation GTS - For C6 | 1 |
| 61 | 60412608 | Insulation passenger compartment GTB | 1 |
| 61 | 60352705 | Insulation passenger compartment GTS | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
