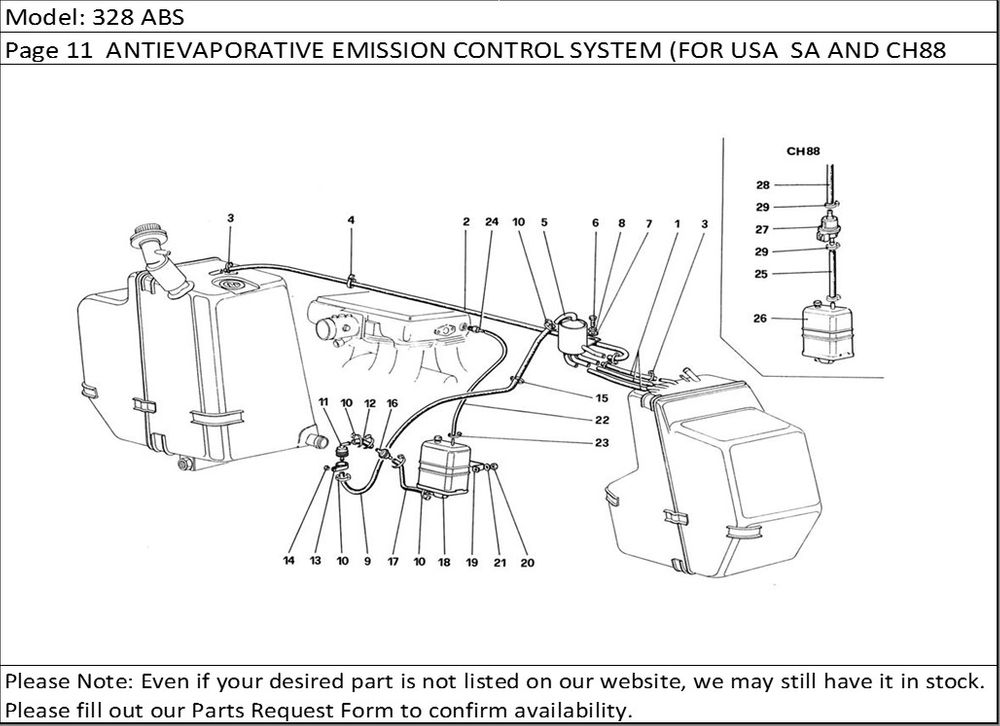

328 ABS Page 11 ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR USA SA AND CH88 VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 114876 | Pipe from tank to separator | 3 |
| 2 | 114887 | Pipe | 1 |
| 4 | 103755 | Clip holding pipe | 3 |
| 5 | 114846 | Vapor separator | 1 |
| 6 | 10902121 | Screw | 2 |
| 7 | 12643701 | Washer | 2 |
| 8 | 106850 | Spring washer | 2 |
| 9 | 116771 | Pipe | 1 |
| 10 | 10175090 | Clip | 6 |
| 11 | 124193 | Anti-downflow valve | 1 |
| 12 | 114876 | Pipe | 1 |
| 13 | 124226 | Clip | 1 |
| 14 | 12574211 | Nut | 1 |
| 15 | 110381 | Clamp | 1 |
| 16 | 114910 | Two - way valve | 1 |
| 17 | 114880 | Pipe | 1 |
| 18 | 114675 | Charcoal carbon canister | 1 |
| 19 | 114676 | Bracket for filter | 1 |
| 20 | 15896211 | Nut | 2 |
| 21 | 106850 | Washer | 2 |
| 22 | 114845 | Pipe | 1 |
| 23 | 12179090 | Clip | 2 |
| 24 | 117286 | Union - For US | 1 |
| 25 | 129839 | Union - For SA | 1 |
| 25 | 133337 | Pipe | 1 |
| 26 | 135698 | Charcoal carbon canister | 1 |
| 27 | 130978 | Antievaporative valve | 1 |
| 28 | 137639 | Pipe | 1 |
| 29 | 12179190 | Clamp | 2 |
