Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

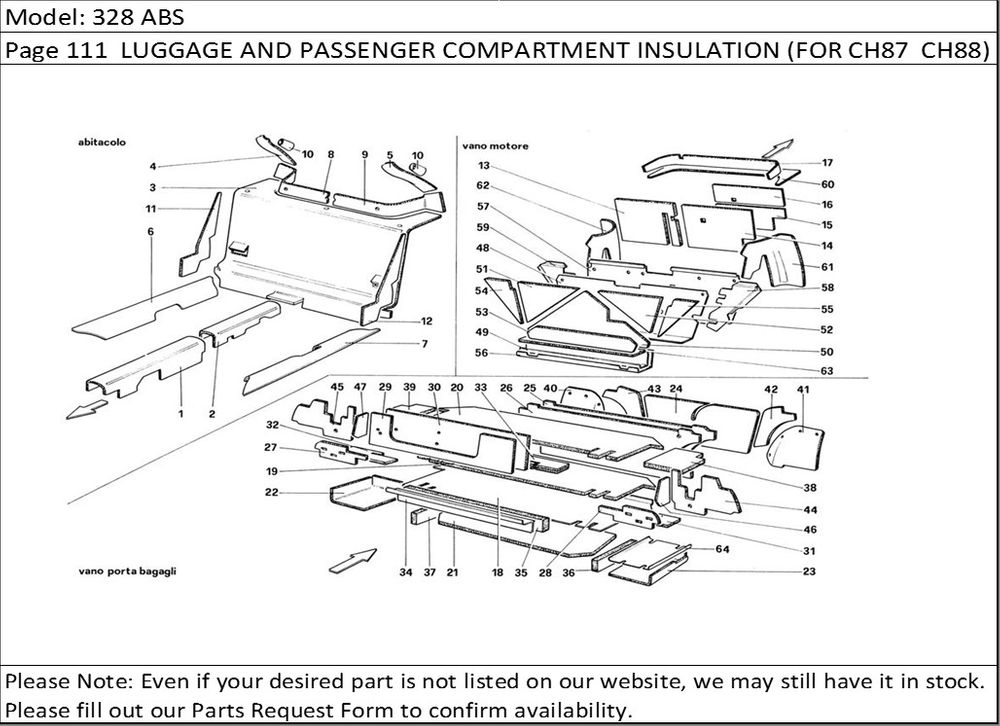

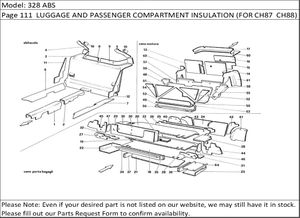

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 60109006 | Front tunnel insulation | 1 |
2 | 61860100 | Rear tunnel insulation | 1 |
3 | 61984200 | Insulation GTS | 1 |
3 | 61986800 | Insulation GTS - Until 1987 | 1 |
3 | 62488100 | Insulation GTS - From 1988 | 1 |
4 | 61984300 | Insulation | 1 |
5 | 61984400 | Insulation | 1 |
6 | 61984500 | Insulation GTB | 1 |
7 | 61984600 | Insulation GTB | 1 |
8 | 61984000 | Insulation | 1 |
9 | 61984100 | Insulation | 1 |
10 | 61985300 | Insulation | 2 |
11 | 61987000 | Insulation GTS | 1 |
12 | 61986900 | Insulation GTS | 1 |
13 | 61985700 | Insulation | 1 |
14 | 61985900 | Insulation GTB | 1 |
14 | 61987300 | Insulation GTS | 1 |
15 | 61984800 | Insulation GTB | 1 |
16 | 61985800 | Insulation GTB | 1 |
17 | 61985200 | Insulation | 1 |
18 | 61889300 | Insulation | 1 |
19 | 61889400 | Insulation | 1 |
20 | 61889500 | Insulation | 1 |
21 | 61889600 | Insulation | 1 |
22 | 61889700 | Insulation | 1 |
23 | 61889800 | Insulation C7 | 1 |
23 | 62431300 | Insulation C8 | 1 |
32 | 61990800 | Insulation | 1 |
33 | 61890900 | Insulation | 1 |
34 | 61891000 | Insulation | 1 |
35 | 61891100 | Insulation | 1 |
36 | 61891200 | Insulation | 1 |
37 | 61891300 | Insulation | 1 |
38 | 61891400 | Insulation | 1 |
39 | 61891500 | Insulation | 1 |
40 | 61891600 | Insulation | 1 |
41 | 61891700 | Insulation | 1 |
42 | 61894600 | Insulation | 1 |
43 | 61894700 | Insulation | 1 |
44 | 61891800 | Insulation | 1 |
45 | 61891900 | Insulation | 1 |
46 | 61892000 | Insulation | 1 |
47 | 61894900 | Insulation | 1 |
48 | 61892100 | Insulation | 1 |
49 | 61892200 | Insulation | 1 |
50 | 61892300 | Insulation | 2 |
51 | 61892400 | Insulation | 1 |
52 | 61892500 | Insulation | 1 |
53 | 61892600 | Insulation | 1 |
54 | 61892700 | Insulation | 1 |
55 | 61892800 | Insulation | 1 |
56 | 61879300 | Under shield | 1 |
57 | 61879400 | Central shield C7 | 1 |
57 | 62431000 | Central shield C8 | 1 |
58 | 61879500 | .R.H. shield | 1 |
59 | 61879600 | L.H. shield | 1 |
60 | 61987100 | Insulation GTS | 1 |
60 | 61985100 | Insulation GTB | 1 |
61 | 61278500 | Insulation | 1 |
62 | 61278600 | Insulation | 1 |
63 | 62349600 | Insulation | 1 |
64 | 62431400 | Plate C8 | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
