Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

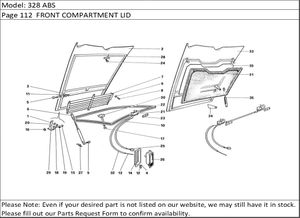

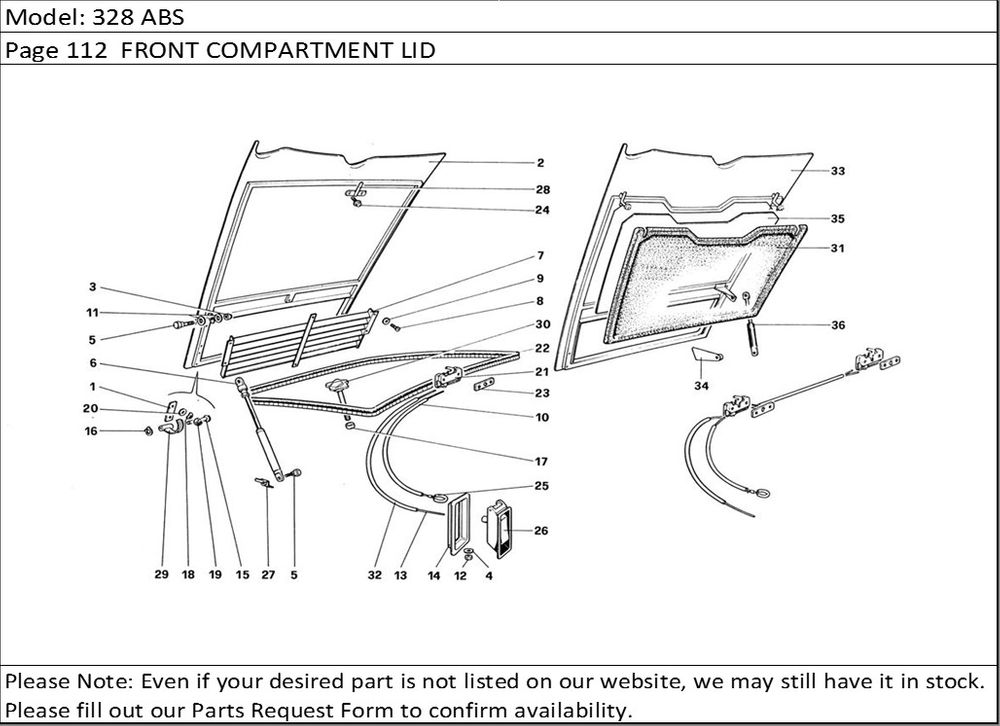

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 61751900 | Hinge plate | 2 |
| 2 | 61751500 | Bonnet LHD - Not for US-J-SA | 1 |
| 2 | 61756000 | Bonnet US-J-SA | 1 |
| 3 | 12577811 | Nut | 1 |
| 4 | 10615371 | Washer | 1 |
| 5 | 40161903 | Pin | 2 |
| 6 | 60118007 | Support - Until exhaustion | 1 |
| 7 | 61752500 | Grill | 1 |
| 7 | 61752510 | BONNET GRILLE | 1 |
| 8 | 15688308 | Screw | 6 |
| 9 | 61276300 | Washer | 6 |
| 10 | 61992700 | Sheath for safety cable | 1 |
| 11 | 12638101 | Washer | 2 |
| 12 | 15896411 | Nut | 1 |
| 13 | 60276904 | Cable | 1 |
| 14 | 60765500 | Flange GTB | 1 |
| 15 | 62402100 | Pin - After exhaustion 60061504 | 2 |
| 15 | 60061504 | Pin - Until exhaustion | 2 |
| 16 | 11087976 | Seeger- Only with pin 62402100 | 2 |
| 16 | 60962400 | Seeger - Only with pin 60061504 | 2 |
| 17 | 61609500 | (V) Spacer | 1 |
| 17 | 61426100 | (N) Spacer | 1 |
| 18 | 106852 | Washer | 4 |
| 19 | 16100811 | Nut | 4 |
| 20 | 12646701 | Washer | 4 |
| 21 | 60277407 | Lock | 2 |
| 22 | 61826600 | Gasket | 1 |
| 23 | 60276508 | Plate | 2 |
| 24 | 13835871 | (V) Screw - Not for US - J - SA | 2 |
| 25 | 60126703 | Safety cabe - Not for J - SA - US | 1 |
| 25 | 60277100 | Safety cable - US - J - SA | 1 |
| 26 | 60297207 | (V) Handle -US-J-SA | 1 |
| 26 | 61756700 | (V) Handle with cable - Not for US - J - SA | 1 |
| 26 | 62498100 | (N) Handle with cable | 1 |
| 27 | 61748600 | Bracket for support (L.H. side) | 1 |
| 28 | 61090400 | (V) Pin lock - Not fo''r US-J-SA | 1 |
| 29 | 60275302 | Hing arm | 2 |
| 30 | 62532200R | (N) Wind nut LHD - Not for SA | 1 |
| 30 | 61609400 | (V) Wind nut | 1 |
| 30 | 62532200 | (N) Wind nut LHD - Not for SA | 1 |
| 30 | 61609400R | Wind Nut | 1 |
| 30 | 61609400 | (N) Wind nut. RHD - SA | 1 |
| 31 | 62575900 | Carpet | 1 |
| 32 | 60277209 | Sheath | 1 |
| 33 | 62483100 | (V) Bonnet LHD | 1 |
| 33 | 62619200 | (N) Bonnet -US-J-SA - With ABS | 1 |
| 33 | 62483900 | (N) Bonnet -US-J-SA - Without ABS | 1 |
| 33 | 62548600 | (V) Bonnet RHD | 1 |
| 33 | 62483500 | (V) Bonnet RHD | 1 |
| 33 | 62486200 | (N) Bonnet LHD | 1 |
| 34 | 62484300 | Bracket for support (R.H. side) | 1 |
| 35 | 62576000 | (N) Adhesive | 1 |
| 36 | 62380500 | Support - After exhaustion 60118007 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
