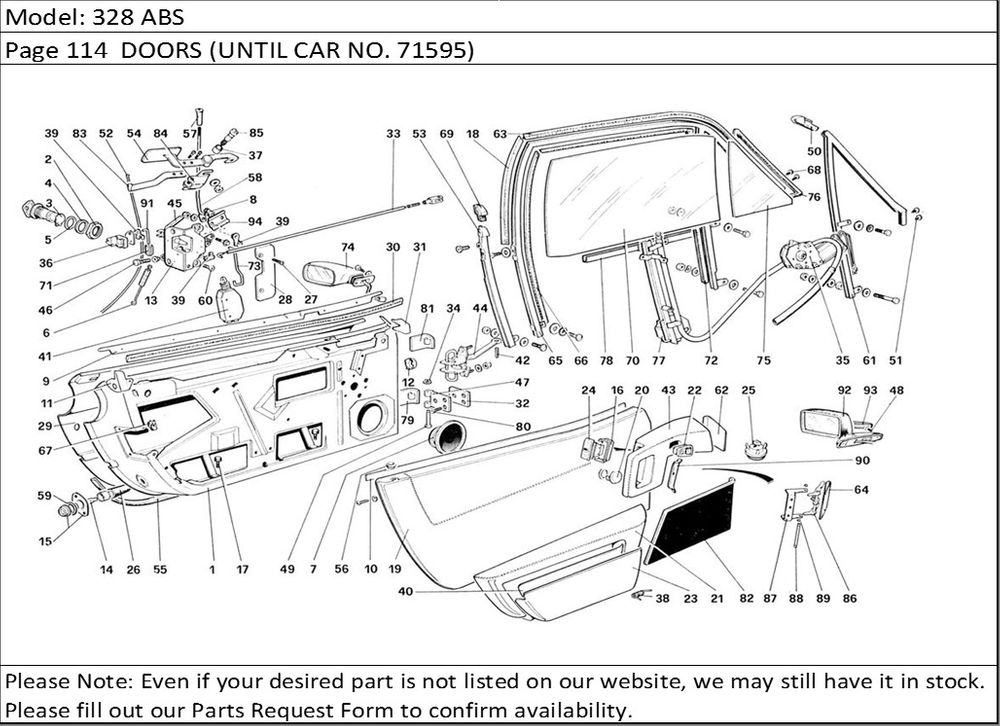

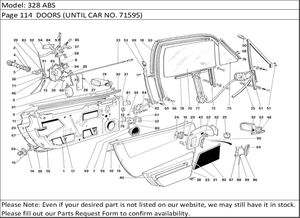

328 ABS Page 114 DOORS (UNTIL CAR NO. 71595)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 62312200 | R.H. window lifting guide with motor | 1 |
| - | 62312300 | L.H. window lifting guide with motor | 1 |
| 1 | 61857100* | R.H. door GTB | 1 |
| 1 | 61814200* | R.H. door GTS SA | 1 |
| 1 | 62326500* | R.H. door GTS - L.H.D. US - SA | 1 |
| 1 | 61967400* | R.H. door GTS | 1 |
| 1 | 62303000* | R.H. door GTB - L.H.D. | 1 |
| 1 | 61873400* | R.H. door GTS NotforAUS | 1 |
| 1 | 61809800* | R.H. door GTB | 1 |
| 1 | 61967100* | L.H. door GTB AUS | 1 |
| 1 | 61809900* | L.H. door GTB US - | 1 |
| 1 | 61967500* | L.H. door GTS | 1 |
| 1 | 61814300* | L.H. door GTS | 1 |
| 1 | 61873500* | L.H. door GTS | 1 |
| 1 | 62326600* | L.H. door GTS - L.H.D. | 1 |
| 1 | 61967000* | R.H. door GTB | 1 |
| 1 | 61857200* | L.H. door GTB R.H.D | 1 |
| 2 | 20063202 | Ring nut | 2 |
| 3 | 50371608 | Block, R.H. and L.H. door lock | 2 |
| 4 | 20035804 | Spacer | 2 |
| 5 | 20181103 | Gasket | 2 |
| 6 | 60046000 | Return spring handle | 2 |
| 7 | 61835200 | Loud speaker | 2 |
| 8 | 60813500 | Clip | 2 |
| 9 | 61861700 | R.H. moulding | 1 |
| 9 | 61861800 | L.H. moulding | 1 |
| 10 | 61811100 | Inner gasket | 2 |
| 11 | 60601900 | Rear R.H. moulding GTS | 1 |
| 11 | 60269206 | Rear R.H. moulding GTB | 1 |
| 11 | 60269305 | Rear L.H. moulding GTB | 1 |
| 11 | 60602000 | Rear L.H. moulding GTS | 1 |
| 12 | 40127409 | Plug | 3 |
| 13 | 20170809 | R.H. lock | 1 |
| 13 | 20170908 | L.H. lock | 1 |
| 14 | 101525 | Lamp | 2 |
| 15 | 60291200 | Open-door marker light | 2 |
| 16 | 61896600 | Switchs frame | 3 |
| 17 | 62302700 | PLug | 4 |
| 18 | 60278405 | Gasker GTB | 2 |
| 19 | 61964700 | R.H. inner panel + coveringFrom car 64385 | 1 |
| 19 | 62308700 | L.H. covering | 1 |
| 19 | 62304700 | L.H. inner panel + coveringUntil car 64383 | 1 |
| 19 | 61964800 | L.H. inner panel + coveringFrom car 64385 | 1 |
| 19 | 62308600 | R.H. covering | 1 |
| 19 | 62304600 | R.H. inner panel + coveringUntil car 64383 | 1 |
| 20 | 62305700 | Plug | 2 |
| 21 | 61964600 | L.H. armrest + coveringFrom car 64385 | 1 |
| 21 | 62303900 | L.H. armrest + coveringUntil car 64383 | 1 |
| 21 | 62303800 | R.H. armrest + coveringUntil car 64383 | 1 |
| 21 | 61964500 | R.H. armrest + coveringFrom car 64385 | 1 |
| 22 | 61803100 | Outside mirror swithc | 1 |
| 23 | 62304100 | L.H. pocket with covering | 1 |
| 23 | 62311000 | Covering for L.H. pocket | 1 |
| 23 | 62310900 | Covering for R.H. pocket | 1 |
| 23 | 62304000 | R.H. pochet with covering | 1 |
| 24 | 126817 | R.H. window control swithc | 1 |
| 24 | 126818 | L.H. window control swithc | 1 |
| 25 | 61804700 | Light | 2 |
| 26 | 60101200 | Protection for door marker light | 2 |
| 27 | 13296915 | Screw | 4 |
| 28 | 60304805 | Moulding for R.H. block | 1 |
| 28 | 60304904 | Moulding for L.H. block | 1 |
| 29 | 62306300 | R.H. covering | 1 |
| 29 | 62306400 | L.H. covering | 1 |
| 30 | 60827600 | Outside gasket L.H. | 1 |
| 30 | 60827500 | Outside gasket R.H. | 1 |
| 31 | 60269008 | Front R.H. moulding GTB | 1 |
| 31 | 60602200 | Front L.H. moulding GTS | 1 |
| 31 | 60269107 | Front L.H. moulding GTB | 1 |
| 31 | 60602100 | Front R.H. moulding GTS | 1 |
| 32 | 60269404 | Plate for fixed hinge | 4 |
| 33 | 61841300 | Cable for inside door handle | 2 |
| 34 | 11065775 | Seeger | 2 |
| 35 | 62312500 | L.H. window motor | 1 |
| 35 | 62312400 | R.H. window motor | 1 |
| 36 | 60606600 | L.H. block | 1 |
| 36 | 60606500 | R.H. block | 1 |
| 37 | 61956100 | Bush | 2 |
| 38 | 62311700 | Spring | 2 |
| 38 | 62311800 | Spring | 2 |
| 39 | 40063208 | Clip for lower safety rod | 8 |
| 40 | 62304500 | L.H. covered interior for pocket | 1 |
| 40 | 62304400 | R.H. covered interior for pocket | 1 |
| 41 | 62437700 | Door locking - After exhaustion 61813300 | 2 |
| 41 | 61811300 | Door locking deviceFor car 67999 - Until exhaustion | 2 |
| 41 | 61329500 | L.H. door locking deviceUntil car 67997 | 1 |
| 41 | 61329400 | R.H. door locking deviceUntil car 67997 | 1 |
| 42 | 60730200 | Pin | 2 |
| 43 | 61920600 | R.H. handle with covering R.H.D. | 1 |
| 43 | 62305000 | L.H. handle with covering L.H.D. | 1 |
| 43 | 62304900 | R.H. handle with covering L.H.D. | 1 |
| 43 | 61920700 | L.H. handle with covering R.H.D. | 1 |
| 44 | 61260800 | Tie rod | 2 |
| 45 | 60566200 | Gasket | 2 |
| 46 | 60088705 | Screw | 2 |
| 47 | 60251204 | Fixed hinge | 4 |
| 48 | 13297611 | Screw - For US - J - SA | 6 |
| 49 | 20074100 | Pin for hinge | 4 |
| 50 | 60265907 | Upper L.H. terminal GTS | 1 |
| 50 | 60265808 | Upper R.H. terminal GTS | 1 |
| 51 | 60815200 | Screw GTS | 4 |
| 52 | 61822400 | Cable for door handle | 2 |
| 53 | 60292307 | Rear glass frame, L.H. GTS | 1 |
| 53 | 60292208 | Rear glass frame, R.H. GTS | 1 |
| 54 | 61955900 | L.H. otuside handle | 1 |
| 54 | 61955800 | R.H. outside handle | 1 |
| 55 | 60159605 | Under gasket | 2 |
| 56 | 40162307 | Bushing for safety rod | 2 |
| 57 | 20170403 | Knob for safety rod | 2 |
| 58 | 61923000 | Upper safety rod, L.H. | 1 |
| 58 | 61920200 | Upper safety rod, R.H. | 1 |
| 59 | 60591000 | Gasket | 2 |
| 60 | 20298303 | Screw | 8 |
| 61 | 60292109 | Front frame for L.H. glass GTS | 1 |
| 61 | 60292000 | Front frame for R.H. glass GTS | 1 |
| 62 | 62305200 | L.H. covered panel | 1 |
| 62 | 62305100 | R.H. covered panel | 1 |
| 63 | 60278504 | Gasket GTB | 2 |
| 63 | 60343100 | Gasket GTS | 2 |
| 64 | 61841200 | Inside door handle L.H. | 1 |
| 64 | 61841100 | Inside door handle R.H. | 1 |
| 65 | 61443600 | L.H. glass frame GTB | 1 |
| 65 | 61443500 | R.H. glass frame GTB | 1 |
| 66 | 60302205 | Rear channel for glass GTB | 2 |
| 66 | 60343308 | Rear channel for glass GTS | 2 |
| 67 | 20037008 | Clip | 8 |
| 68 | 20286704 | Screw GTB | 4 |
| 69 | 60266103 | L.H. terminal GTS | 1 |
| 69 | 60266004 | R.H. terminal GTS | 1 |
| 70 | 60263902 | L.H. mobile glass, GTB | 1 |
| 70 | 60162508 | L.H. mobile glass, GTS | 1 |
| 70 | 60263803 | R.H. mobile glass, GTB | 1 |
| 70 | 60162409 | R.H. mobile glass, GTS | 1 |
| 71 | 40133902 | Terminal for rod | 1 |
| 72 | 60302205 | Front channel for glass GTS | 2 |
| 72 | 60302106 | Front channel for glass GTB | 2 |
| 73 | 61328600 | Lower safety rod. R.H.Until car 67997 | 1 |
| 73 | 61973500 | Lower safety rod. L.H.From car 67999 | 1 |
| 73 | 61973600 | Lower safety rod. R.H.From car 67999 | 1 |
| 73 | 61328500 | Lower safety rod, L.H.Until car 67997 | 1 |
| 74 | 60812800 | R.H. rear mirror - AUS | 1 |
| 74 | 61021800 | L.H. rear mirror - Not for US - RHD - J - SA | 1 |
| 74 | 61172700 | L.H. rear mirror R.H.D. - Not for AUS | 1 |
| 74 | 61990200 | L.H. rear mirror - AUS | 1 |
| 74 | 61021900 | R.H. rear mirror - Not for US - RHD - J - SA | 1 |
| 74 | 61172800 | R.H. rear mirror R.H.D. - Not for AUS | 1 |
| 75 | 62344400 | R.H. fixed glass GTS | 1 |
| 75 | 62344500 | L.H. fixed glass GTS | 1 |
| 75 | 60264405 | R.H. fixed glass GTB | 1 |
| 75 | 60264504 | L.H. fixed glass GTB | 1 |
| 76 | 60322500 | Weatherstrip for fixed glass GTB | 2 |
| 76 | 60519100 | Weatherstrip for fixed glass GTS | 2 |
| 77 | 62312600 | R.H. window lifting guide | 1 |
| 77 | 62312700 | L.H. window lifting guide | 1 |
| 78 | 61909800 | Base for L.H. glassFrom car 70937 | 1 |
| 78 | 62306200 | Base for L.H. glassUntil car 70935 | 1 |
| 78 | 61909700 | Base for R.H. glassFrom car 70937 | 1 |
| 78 | 62306100 | Base for R.R. glassUntil car 70935 | 1 |
| 79 | 50031608 | Lower mobile hinge | 2 |
| 80 | 50206408 | Screw | 12 |
| 81 | 60265402 | Upper mobile hinge R.H. | 1 |
| 81 | 60265501 | Upper mobile hinge L.H. | 1 |
| 82 | 62308900 | L.H. panel, lower covering | 1 |
| 82 | 62308800 | R.H. panel, lower covering | 1 |
| 83 | 62313500 | L.H. lock control lever | 1 |
| 83 | 62313400 | R.H. lock control lever | 1 |
| 84 | 62313600 | Support for R.H. handle | 1 |
| 84 | 62316000 | Support for L.H. handle | 1 |
| 85 | 61956000 | Hinge pin for handle | 2 |
| 86 | 62314100 | R.H. handle lever | 1 |
| 86 | 62314200 | L.H. handle lever | 1 |
| 87 | 62313800 | Support | 2 |
| 88 | 62314300 | Hinge pin for interior handle | 2 |
| 89 | 11087276 | Seeger elastic ring | 4 |
| 90 | 62315300 | L.H. protection | 1 |
| 90 | 62315200 | R.H. protection | 1 |
| 91 | 60709000 | Tie rod | 2 |
| 92 | 61095600 | R.H. rear mirror- For US -J- SA | 1 |
| 92 | 60812600 | L.H. rear mirror- For US- J- SA | 1 |
| 93 | 60991600 | Cover - For US - J - SA | 2 |
| 94 | 62359000 | Lever for door locking device P.N. 61811300 | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
