Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

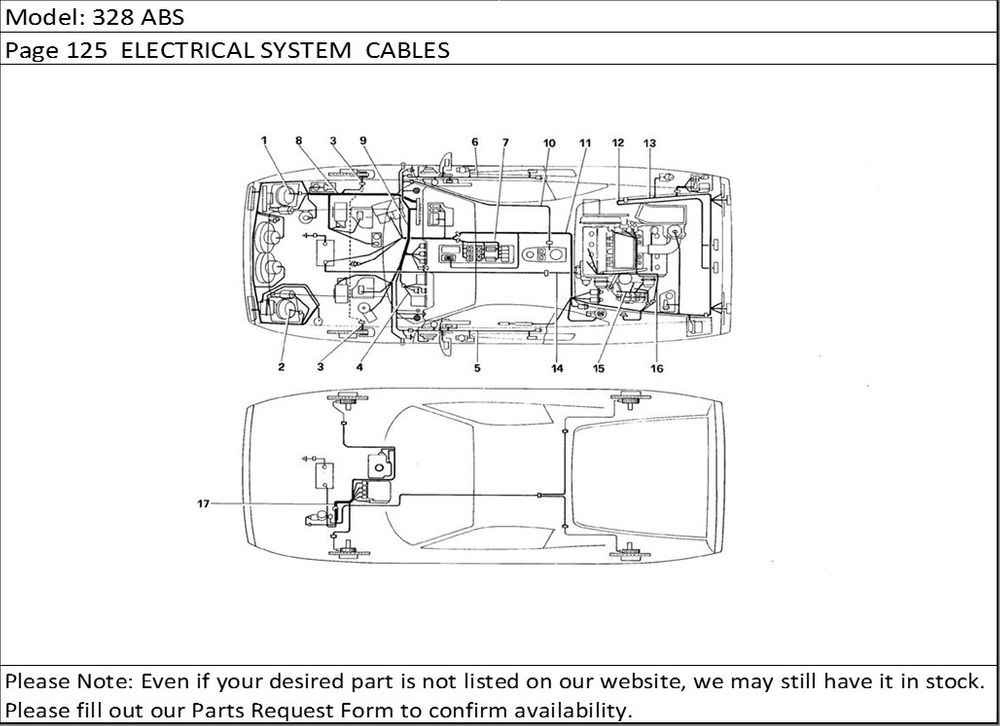

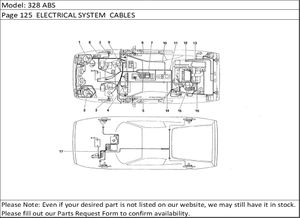

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 115607 | Cables for R.H. head lamp | 1 |
2 | 115608 | Gables for L.H. heard lamp | 1 |
3 | 116372 | (V) Cables for front brake pad | 2 |
4 | 61916700 | (V) Cables for instruments AUS - SA - C7 - C8 | 1 |
4 | 62463800 | (N) Cables for instruments C8From MY 89 for US - J | 1 |
4 | 61836700 | (V) Cables for instrumentsNot for RHD - US - SA - J - C7 - C8 | 1 |
4 | 62575100 | (N) Cables for instruments RHDNot for AUS | 1 |
4 | 61836800 | (V) Cables for instruments US - JUntil MY 88 | 1 |
4 | 61886100 | (V) Cables for instruments RHDNot for AUS | 1 |
4 | 62461900 | (N) Cables for instrumentsNot for RHD - US - J - C8 | 1 |
5 | 61970600 | Cables for L.H. door .US - SA - AUS | 1 |
5 | 61803800 | Cables for L.H. doorNot for RHD - US - SA - C7 - C8 | 1 |
5 | 61919800 | Cables for L.H. doorUS - SA - AUS | 1 |
5 | 61970400 | Cables for L.H. doorNot for RHD - US - SA | 1 |
5 | 61886000 | Cables for L.H. door RHDNot for AUS | 1 |
5 | 61970800 | Cables for L.H. door RHDNor for AUS | 1 |
6 | 61919700 | Cables for R.H. doorUS - SA - AUS | 1 |
6 | 61970700 | Cables for R.H. door RHD | 1 |
6 | 61885900 | Cables for R.H. door RHDNot for AUS | 1 |
6 | 61970500 | Cables for R.H. door US-SA-AUS | 1 |
6 | 61803700 | Cables for R.H. doorNot for RHD - US - SA - C7 - C8 | 1 |
6 | 61970300 | Cables for R.H. doorNot for RHD - US - SA | 1 |
7 | 61917900 | Cables for tunnel | 1 |
8 | 61808500 | Front cables US | 1 |
8 | 61937200 | Front cables J | 1 |
8 | 61991100 | Front cables J | 1 |
8 | 61803300 | Front cabesNot for US-RHD-J-C7-C8 | 1 |
8 | 61990900 | Front cables US | 1 |
8 | 61990800 | Front CablesNot for US - RHD - J | 1 |
8 | 61991000 | Front cables RHD | 1 |
8 | 61885700 | Front cables RHD | 1 |
9 | 61808600 | Dashboard cables USUntil car 64165 | 1 |
9 | 61955000 | Dashboard cables LHDNot for US - SA - C7 - J - From car 64127 | 1 |
9 | 61955200 | Dashboard cables RHDNot for AUS - From car 64167 to car 68195 | 1 |
9 | 61803400 | Dashboard cables LHDNot for US - SA - C7 - J - Until car 64125 | 1 |
9 | 61955400 | Dashboard cables JFrom car 64167 | 1 |
9 | 62342600 | Dashboard cables RHDNot for AUS - From car 68197 | 1 |
9 | 61885800 | Dashboard cables RHDNot for AUS - Until car 64165 | 1 |
9 | 62346700 | Dashboard cables C7 | 1 |
9 | 61955100 | Dashboard cables USFrom car 64167 | 1 |
9 | 61963100 | Dashboard cables AUS | 1 |
9 | 62423500 | (V) Dashboard cables C8 | 1 |
9 | 62563700 | (N) Dashboard cables US - MY 89 | 1 |
9 | 62451300 | (N) Dashboard cables LHDNot for MY 89 US and J | 1 |
9 | 62564200 | (N) Dashboard cables J - MY 89 | 1 |
9 | 62463700 | (N) Dashboard cables C8 | 1 |
9 | 61916500 | Dashboard cables SAUntil car 64165 | 1 |
9 | 61955300 | Dashboard cables SAFrom car 64167 | 1 |
9 | 61937100 | Dashboard cables JUntil car 64125 | 1 |
9 | 62462000 | (N) Dashboard cables RHD | 1 |
10 | 117017 | Cables for interior light GTS | 1 |
10 | 117013 | Roof cables GTB | 1 |
11 | 62359600 | Rear cables - From car 71059AUS - Until MY 88 for US and J | 1 |
11 | 62496500 | (N) Rear cablesNot for US - AUS - J - C7 - C8 | 1 |
11 | 61808700 | Rear cables US - AUS - J - Until car 71057 | 1 |
11 | 62566400 | Rear cables US - J from MY 89 | 1 |
11 | 62423600 | (V) Rear cables C8 | 1 |
11 | 62346800 | Rear cables C7 - Until car 71057 | 1 |
11 | 61803500 | Rear cables - Not for US - AUS - J - C6 - C7Until car 71057 | 1 |
11 | 62496600 | (N) Rear cables C8 | 1 |
11 | 62357800 | (V) Rear cablesNot for US - AUS - J - C7 - C8 - From car 71059 | 1 |
11 | 62359800 | Rear cables C7 - From car 71059 | 1 |
11 | 61931400 | Rear cables C6 | 1 |
12 | 61896000 | Rear bonnet cables | 1 |
13 | 61937300 | Rear lights cables AUS - J | 1 |
13 | 61835100 | Rear lights cablesNot for US - AUS - SA - J | 1 |
13 | 61916600 | Rear lights cables SA | 1 |
13 | 61835500 | Rear lights cables US | 1 |
14 | 61912600 | Cables to starter motor | 1 |
15 | 62357600 | Sensors wires - From 71019 | 1 |
15 | 61804000 | Sensors wires - Until car 71057 | 1 |
16 | 62359900 | Engine cables C7Until car 71057 - From car 71059 | 1 |
16 | 61931500 | Engine cables C6 - C7Until car 71057 - From car 71059 | 1 |
16 | 62359700 | Engine cables - US -AUS -JUntil car 71057 - From car 71059 | 1 |
16 | 62357700 | Engine cablesNot for US - AUS - J - C7 - C8 - Until car 71057 - From car 71059 | 1 |
16 | 61803900 | Engine cablesNot for US - AUS - J - CH | 1 |
16 | 62423700 | Engine cables C8Until car 71057 - From car 71059 | 1 |
16 | 61809100 | Engine cables US -AUS -JUntil car 71057 - From car 71059 | 1 |
17 | 62451500 | ABS cables LHD | 1 |
17 | 62462100 | ABS cables RHD | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
