Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

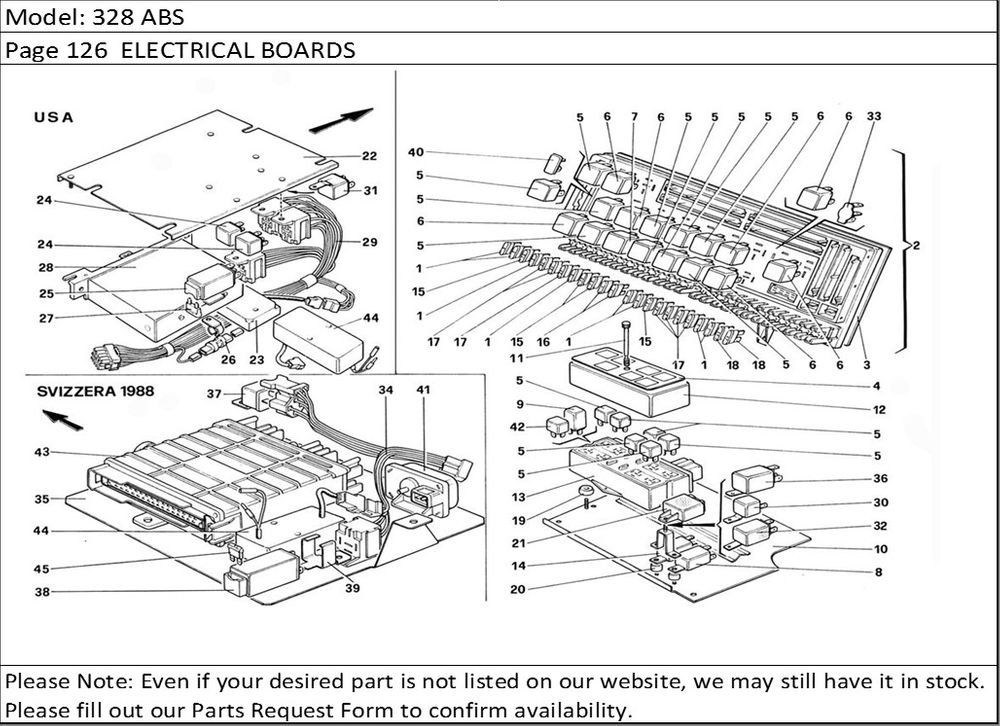

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 125242 | 15AfnseRHD | 7 |
| 1 | 125242 | 15AfuseLHD | 8 |
| 2 | 62344200 | Electrical board complete RHDFrom car 68197 | 1 |
| 2 | 61804200 | Electrical board complete LHDNot for C8 (For RHD until car 68195) | 1 |
| 3 | 116055 | Rear cover | 1 |
| 4 | 61804500 | Plate USA and J MY 88 - AUS | 1 |
| 4 | 62567300 | Plate USA and J MY 89 | 1 |
| 5 | 40130007 | Relay C8 | 15 |
| 5 | 40130007 | Relay - Not for C8 | 16 |
| 6 | 40130106 | Relay C8 | 6 |
| 6 | 40130106 | Relay- Not for C8 | 7 |
| 7 | 40283905 | Relay | 1 |
| 8 | 61827800 | Timer for interior lights | 1 |
| 9 | 61651800 | Flasher for direction lights - USUnderneath the dash board | 1 |
| 9 | 61814700 | Flasher for direction lights - USBehind the footrest | 1 |
| 9 | 61048000 | Flasher for direction lightsFrom car 64127 - Not for US - Underneath the dashboard | 1 |
| 9 | 61111200 | Flascher for direction lights - Until car 64125 - Not for US - Behind the footrest | 1 |
| 10 | 61831400 | Passenger footrest GTB - RHD | 1 |
| 10 | 61848100 | Passenger footrest GTS - RHD | 1 |
| 10 | 61820100 | Passenger footrest GTB - LHD | 1 |
| 10 | 61821800 | Passenger footrest GTS - LHD | 1 |
| 11 | 116138 | Screw | 1 |
| 12 | 127081 | Cover | 1 |
| 13 | 61804400 | Secondary electric board withitems 5-9-4-11-12 | 1 |
| 14 | 61827900 | Windshield wiper relay | 1 |
| 15 | 125240 | 7, 5 A fuse | 4 |
| 16 | 125241 | 10 A fuse | 2 |
| 17 | 125243 | 20 A fuse - For RHD quantity 8 | 7 |
| 18 | 126031 | 25 A fuse | 2 |
| 19 | 61876200 | Spacer for RHD | 2 |
| 19 | 61825600 | Spacer for LHD | 2 |
| 20 | 61876200 | Spacer for RHD | 2 |
| 21 | 61830700 | Seat belt control unitFor US - SA - J - Not for A87 | 1 |
| 22 | 61809200 | Plate for ECUUS - J - SA - AUS - Until car 76529 | 1 |
| 22 | 62356300 | Plate for ECU C7For US - SA - J - AUS from car 76529 | 1 |
| 23 | 61402500 | Cataiityc computer control unitUS - J until car 76515 | 1 |
| 24 | 40130106 | Relay for oxygen sensor - US - J | 2 |
| 25 | 61766200 | Relay for oxygen sensor - US - J | 1 |
| 26 | 121776 | Diode for oxygen sensor and controlMicroswitch for injection ECU - US | 2 |
| 27 | 125241 | Fuse 10 A US | 1 |
| 28 | 127479 | Electronic control unit US | 1 |
| 29 | 61864900 | Cables US - J | 1 |
| 30 | 61914500 | Control relay for brake warning light AUS | 1 |
| 31 | 62347600 | Injector control relayC7 until car | 1 |
| 31 | 62374200 | Injector control relay - Not for C8C7 from car | 1 |
| 32 | 131486 | Buzzer for lower oil pressure and exhaust hight temperature C7 | 1 |
| 33 | 115459 | Bridge GD - Only from car 68197 | 1 |
| 34 | 62423800 | Cabes C8 | 1 |
| 35 | 62424000 | Plate C8 | 1 |
| 36 | 62370600 | Tachimetric relay for fuel pump C8 | 1 |
| 37 | 62424100 | Relay for cut-off valve C8 | 1 |
| 38 | 61766200 | Relay protection electrical system C8 | 1 |
| 39 | 62349700 | Bracket C8 | 1 |
| 40 | 61936600 | Bridge C8 | 1 |
| 41 | 134808 | Barometric valve C8 | 1 |
| 42 | 62567200 | Control relay for ABS systemUSA and J MY 89 | 1 |
| 43 | 134153 | Electronic control unit C8 | 1 |
| 44 | 62347000 | Catalytic converter control unitC7 - C8 - For J and US from car 76529 | 1 |
| 45 | 125241 | Fuse 10 A C8 | 1 |
