Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

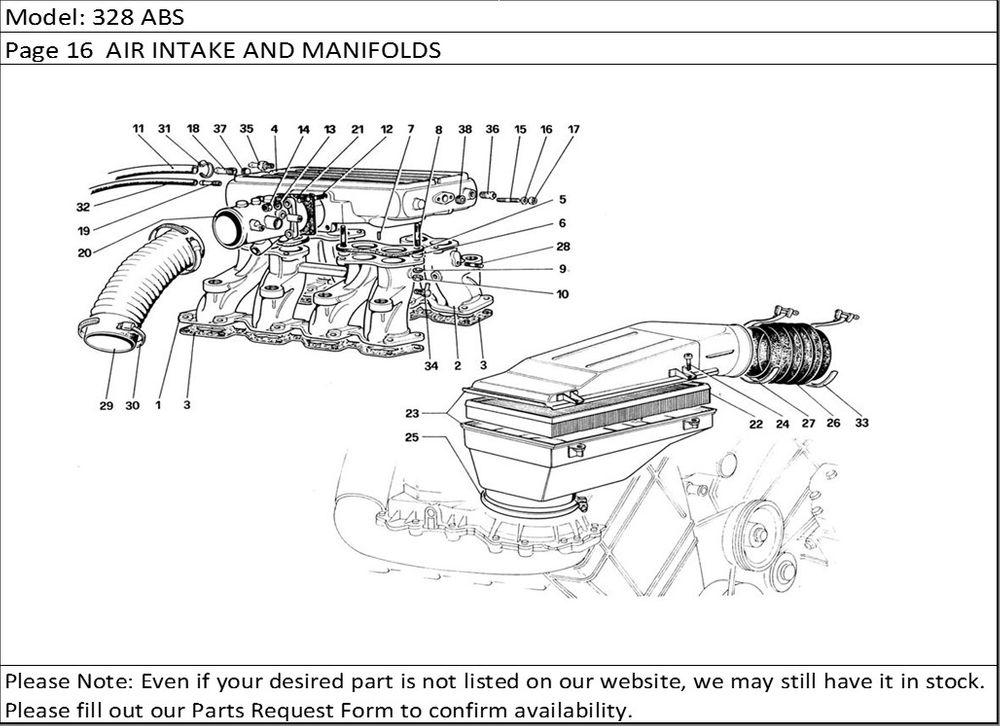

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 135032 | Intake manifold, right complete - For C8 | 1 |
| 1 | 128034 | Intake manifold, right complete - For US | 1 |
| 2 | 135033 | Intake manifold, left complete - For CS | 1 |
| 2 | 128201 | Intake manifold, left complete - Not for US and C8 | 1 |
| 2 | 128035 | Intake manifold, left complete - For US | 1 |
| 3 | 117262 | Gasket - Not for C8 | 2 |
| 3 | 135093 | Gasket - For C8 | 2 |
| 4 | 135133 | (B) Body, air delivery to manifolds complete - For C8 | 1 |
| 4 | 136434 | (A) Body, air delivery to manifolds complete - Not for US | 1 |
| 4 | 128023 | Body for air delivery to manifolds - With assembly no. 136434 | 1 |
| 4 | 128203 | Body for air delivery to manifolds - With assembly no. 127544 | 1 |
| 4 | 128023 | Body for air delivery to manifolds - With assembly no. 127097 | 1 |
| 4 | 127097 | (B) Body, air delivery to manifolds complete - Not for US | 1 |
| 4 | 127544 | (B) Body, air delivery to manifolds - complete - For US | 1 |
| 4 | 134873 | Body for air delivery to manifolds - With assembly no. 136435 | 1 |
| 4 | 136435 | (A) Body, air delivery to manifolds complete - For C8 | 1 |
| 4 | 134873 | Body for air delivery to manifolds - With assembly no. 135133 | 1 |
| 5 | 114983 | Gasket | 4 |
| 6 | 114984 | Spacer | 8 |
| 7 | 10331111 | Centring dowel | 4 |
| 8 | 13543521 | Stud | 8 |
| 9 | 11198071 | Washer | 8 |
| 10 | 16100811 | Nut | 8 |
| 11 | 107982 | (B) Rubber hose for servo-brake depression | 1 |
| 12 | 13541121 | Stud | 4 |
| 13 | 12601271 | Washer | 4 |
| 14 | 12574211 | Nut | 4 |
| 15 | 13540821 | Stud - For C8 | 2 |
| 15 | 13541621 | Stud - Not for C8 | 2 |
| 15 | 14305721 | Screw - Starting from car no. 76347 | 2 |
| 16 | 12601271 | Washer | 2 |
| 17 | 12574211 | Nut | 2 |
| 18 | 103870 | (B) Nipple for intake servo - brake depression | 1 |
| 19 | 113652 | Nipple for depression on the central ignition station | 1 |
| 20 | 134985 | Complete throttle body For CS | 1 |
| 20 | 128957 | Complete throttle body For US | 1 |
| 20 | 127899 | Throttle body - Not spare With assembly no. 128957 | 1 |
| 20 | 127163 | Throttle body - Not spare With assembly no. 128956 | 1 |
| 20 | 134980 | Throttle body - Not spare With assembly no. 134985 | 1 |
| 20 | 128956 | Complete throttle body Not for US and C8 | 1 |
| 21 | 135098 | Gasket - For C8 | 1 |
| 21 | 115038 | Gasket - Not for C8 | 1 |
| 22 | 118006 | Cartridge - Not for C7 and C8 | 1 |
| 22 | 132626 | Cartridge For C7 and C8 | 1 |
| 23 | 132874 | Air inlet - For C7 and C8 - Until to car no. 78068 | 1 |
| 23 | 121736 | Air inlet - For US - Until to car no. 78068 | 1 |
| 23 | 137781 | Air inlet - Not for US - C7 and C8 - Starting from car no. 78069 | 1 |
| 23 | 118313 | Air inlet - Not for US - C7and C8 Until to car no. 78068 | 1 |
| 23 | 137780 | Air inlet - For US - Starting from car no. 78069 | 1 |
| 23 | 137576 | Air inlet - For C7 and C8 - Starting from car no. 78069 | 1 |
| 24 | 14305426 | Screw | 4 |
| 25 | 138982 | Clamp | 1 |
| 26 | 114019 | Sleeve - For C7 and C8 use no. 133152 - Until to car no. 78068 | 1 |
| 26 | 136008 | Sleeve - Starting from car no. 78069 | 1 |
| 27 | 10300190 | Clamp - Not for C7 and C8 Until to car no. 78068 | 1 |
| 28 | 11500021 | Sud | 1 |
| 29 | 118310 | Pipe from support throttle | 1 |
| 30 | 12174990 | Clamp | 2 |
| 31 | 12179590 | Clamp | 1 |
| 32 | 128305 | Vacuum hose digiplex | 1 |
| 33 | 10301890 | Clamp - For C7 and C9 Q = 2 Until to car no. 78068 | 1 |
| 34 | 128016 | Union - For US | 8 |
| 35 | 119466 | Nipple for blow-by and A.C. Not for US | 1 |
| 35 | 119465 | Nipple for A.C. Not for US | 1 |
| 36 | 128208 | Union - Not for US and SA | 1 |
| 37 | 10269550 | (A) Plug | 1 |
| 38 | 10268450 | (A) Plug - For C8 | 1 |
