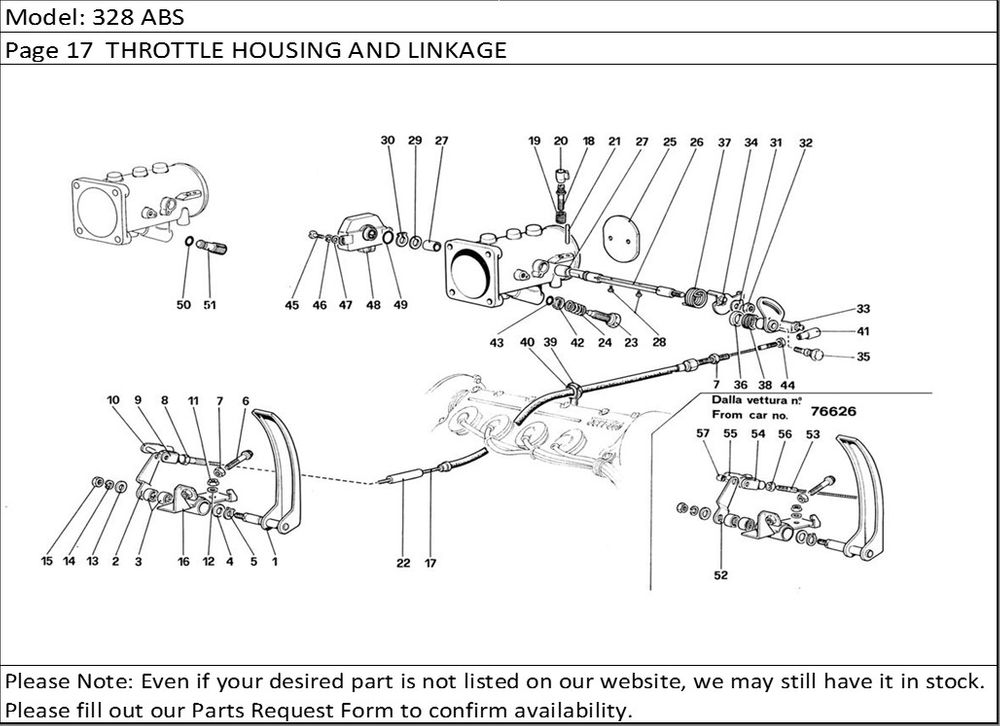

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 115393 | Accelerator pedal | 1 |
| 2 | 115399 | Lever | 1 |
| 4 | 108576 | Shim | 1 |
| 5 | 11066076 | Seeger ring | 1 |
| 6 | 105232 | Adjusting screw | 1 |
| 7 | 16102311 | Nut | 2 |
| 8 | 10725911 | Locknut | 1 |
| 9 | 100655 | Fork | 1 |
| 10 | 100656 | Pin with strap | 1 |
| 11 | 16100811 | Nut | 2 |
| 12 | 106852 | Washer | 2 |
| 13 | 10519601 | Spacer | 1 |
| 14 | 106852 | Washer | 1 |
| 15 | 16100811 | Nut | 1 |
| 16 | 115396 | Support for accelerator pedal | 1 |
| 17 | 120260 | Control cable for accelerator | 1 |
| 18 | 114366 | Adjust screw for throttle control lever | 1 |
| 19 | 107824 | Spring | 1 |
| 20 | 111182 | Inviolability cap | 1 |
| 21 | 114367 | Pin for cap | 1 |
| 22 | 118810 | Cable protection For RHD use no. 120499 | 1 |
| 23 | 119308 | Air adjusting screw - Not for US and C8 | 1 |
| 24 | 113571 | Spring - Not for US and C8 | 1 |
| 25 | 114851 | Throttle - Not spare | 1 |
| 26 | 121802 | Throttle spindle - Not spare | 1 |
| 27 | 107443 | Bush - Not spare | 2 |
| 28 | 115361 | Screw - Not spare | 2 |
| 29 | 121835 | Washer | 1 |
| 30 | 104182 | Seeger ring | 1 |
| 31 | 113566 | Lock washer | 1 |
| 32 | 16102311 | Nut | 1 |
| 33 | 118296 | Throttle control lever - After exhaustion use no. 128942 | 1 |
| 34 | 115590 | Throttle control lever | 1 |
| 35 | 114863 | Lever pin - After exhaustion use no. 10903021 | 1 |
| 36 | 114986 | Spacer washer - Not spare | 1 |
| 37 | 115573 | Spring | 1 |
| 38 | 118294 | Spring | 1 |
| 39 | 118809 | Support plate for cable | 1 |
| 40 | 10396580 | Fair - lead | 1 |
| 41 | 105617 | Ball ring | 1 |
| 42 | 115204 | Plate - Not for US and C8 | 1 |
| 43 | 114919 | Grommet - Not for US and C8 | 1 |
| 44 | 15896411 | Nut | 1 |
| 45 | 10444621 | Screw | 2 |
| 46 | 106848 | Washer | 2 |
| 47 | 10519201 | Washer | 2 |
| 48 | 121517 | Microswitch | 1 |
| 49 | 116736 | Sealing ring | 1 |
| 50 | 105661 | Sealing ring - For US and C8 | 1 |
| 51 | 127916 | Screw - For US and C8 | 1 |
| 52 | 132206 | Lever | 1 |
| 53 | 133061 | Control cable for accelerator | 1 |
| 54 | 132290 | Fork | 1 |
| 55 | 132291 | Pin with strap | 1 |
| 56 | 10725011 | Nut | 1 |
| 57 | 132212 | Bush | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
