Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

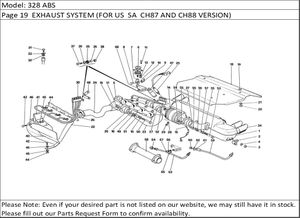

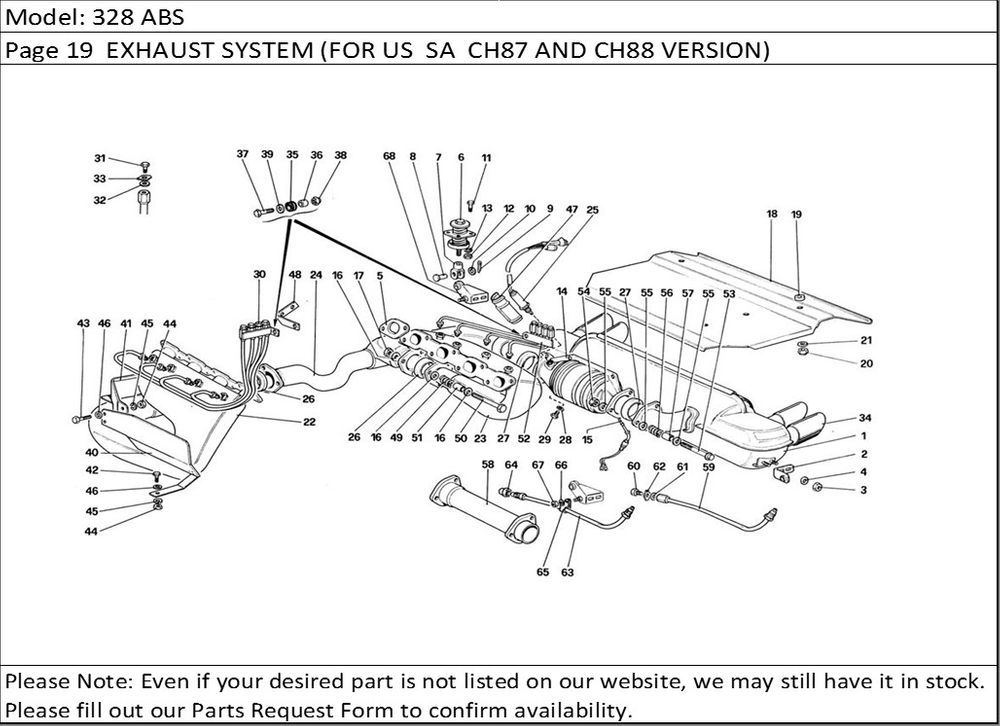

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 131194 | Exhaust silencer - For AUS and SA | 1 |
1 | 131954 | After exhaustion use no. 131954 - Exhaust silencer - For C7 and C8 | 1 |
2 | 108290 | Bracket - Unit car no. 75608 | 2 |
3 | 114748 | Nut | 4 |
4 | 10519601 | Washer | 4 |
5 | 111532 | Gasket | 8 |
6 | 106052 | Buffer for supporting silencer | 2 |
7 | 108257 | Fork on buffer | 2 |
8 | 10033411 | Pin | 2 |
9 | 10796401 | Split pin | 2 |
10 | 103167 | Washer | 2 |
11 | 10977621 | Screw fixing buffer to chissis | 8 |
12 | 15896411 | Nut | 8 |
13 | 106849 | Washer | 8 |
14 | 121385 | Catalytic converter - Not for SA | 1 |
15 | 62347100 | Thermocouple - For C7 and C8 - Starting from car no. 76529 - Use for US | 1 |
15 | 61402400 | Thermocouple - For US | 1 |
16 | 112761 | Washer | 18 |
17 | 114748 | Selflocking nut | 5 |
18 | 128711 | Proteciton plate | 1 |
19 | 105924 | Spacer | 6 |
20 | 116416 | Nut | 6 |
21 | 106744 | Washer | 6 |
22 | 118821 | Front exhaust manifold | 1 |
23 | 129003 | Rear exhaust manifold | 1 |
24 | 128188 | Extension pipe from manifold | 1 |
25 | 10300811 | Plug - Only for C7 | 1 |
25 | 121515 | Oxygen sensor - Not for C7 and SA | 1 |
26 | 103377 | Gasket | 2 |
27 | 121426 | Gasket | 2 |
28 | 10298460 | Gasket - Up to car no. 75608 | 1 |
29 | 110860 | Plug - Up to car no. 75608 | 1 |
30 | 118886 | Analyzing pipes, front | 1 |
31 | 103748 | Plug | 8 |
32 | 103749 | Gasket | 8 |
33 | 103587 | Plate | 8 |
34 | 132577 | Terminal - For C7 - C8 - SA and AUS | 4 |
34 | 114743 | Terminal - Not C7 | 4 |
35 | 103549 | Anti - vibration rubber | 2 |
36 | 103550 | Bush for rubber | 2 |
37 | 10902621 | Screw for pipes | 2 |
38 | 12574211 | Selflocking nut | 2 |
39 | 106744 | Washer | 2 |
40 | 115557 | Protection plate | 1 |
41 | 115552 | Protection plate | 1 |
42 | 10902321 | Screw | 2 |
43 | 10902121 | Screw | 2 |
44 | 15896211 | Nut | 4 |
45 | 106850 | Washer | 4 |
46 | 12643701 | Washer | 6 |
47 | 121833 | Protection for oxygen sensor Not for C7 and SA | 1 |
48 | 118999 | Bracket | 1 |
48 | 132577 | Bracket - Only for SA | 1 |
49 | 111743 | Spring, fixing flanges | 6 |
50 | 115675 | Screw | 6 |
51 | 114749 | Spacer for spring | 6 |
52 | 121780 | Analyzing pipes, rear | 1 |
53 | 121676 | Screw | 6 |
54 | 121677 | Nut | 6 |
55 | 121678 | Washer | 18 |
56 | 121674 | Spring | 6 |
57 | 121675 | Spacer | 6 |
58 | 126534 | Pipe to extension pipe from silencer - Only for SA | 1 |
59 | 136253 | Analyzing pipe - From car no. 75609 and until exhaustion - Not for C8 | 1 |
60 | 103748 | PlugFor pipe no. 136253 | 1 |
61 | 103749 | GasketFor pipe no. 136253 | 1 |
62 | 103587 | PlateFor pipe no. 136253 | 1 |
63 | 136747 | Analizing pipe - After exhaustion no. 136253 | 1 |
64 | 16109642 | Plug - For pipe no. 136747 | 1 |
65 | 10418101 | Clamp | 1 |
66 | 12644601 | Washer | 1 |
67 | 116416 | Nut | 1 |
68 | 136251 | Right bracket - From car no. 75609 | 1 |
68 | 108290 | Left bracket - From car no. 75609 | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
