Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

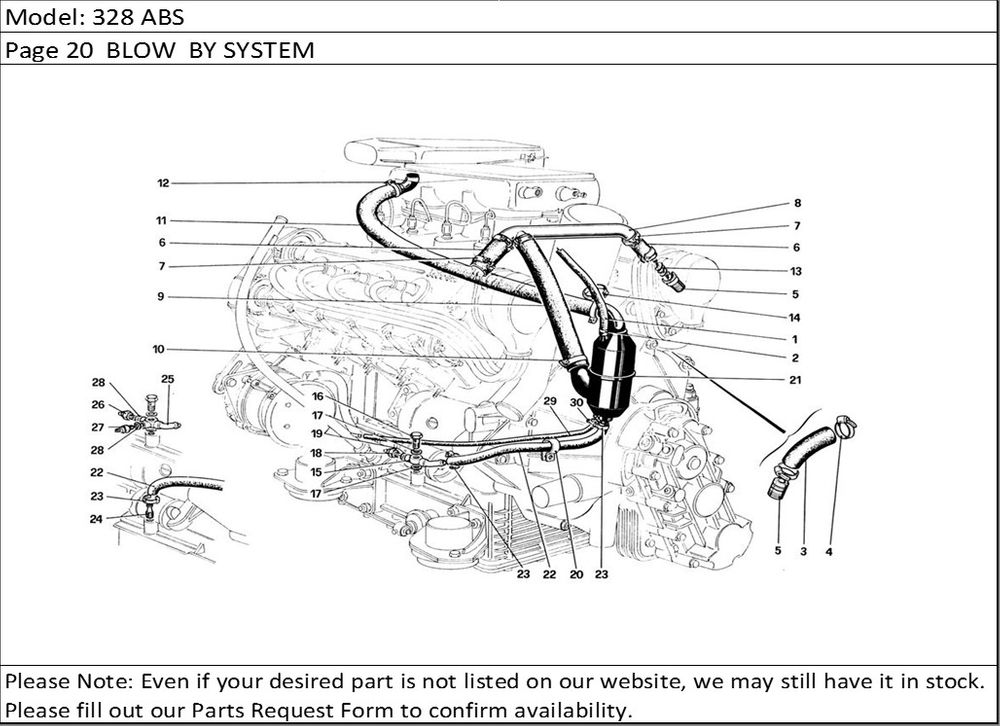

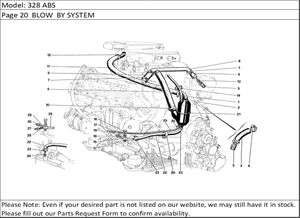

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 111199 | Hose from separator to air intake - Not for US | 1 |
| 1 | 129109 | Hose from vapor separator to air - delivery pipe - For US | 1 |
| 3 | 118216 | Sleeve | 1 |
| 4 | 12179990 | Clamp | 2 |
| 5 | 119236 | Union | 1 |
| 6 | 116783 | Sleeve | 2 |
| 7 | 12180290 | Clamp | 4 |
| 8 | 118312 | 3 way pipe | 1 |
| 9 | 118958 | Tube from 3 way pipe to vapour separator | 1 |
| 10 | 12179990 | Clamp | 2 |
| 11 | 118959 | Tube from vapor separator to oil sump | 1 |
| 12 | 12179990 | Clamp | 2 |
| 13 | 119237 | Splash screen | 2 |
| 14 | 105550 | Clamp | 3 |
| 15 | 121842 | Revolving device - For US | 1 |
| 16 | 121424 | Union | 1 |
| 17 | 10282460 | Gasket | 2 |
| 18 | 115652 | Bimetal thermostat - For US | 1 |
| 19 | 10260060 | Gasket - For US | 1 |
| 20 | 10450490 | Pipe securing clamp | 1 |
| 21 | 128532 | Oil vapour separator - Not for | 1 |
| 21 | 132548 | Oil vapour separator - For C7 | 1 |
| 22 | 106338 | Hose from vapor separator to oil | 1 |
| 23 | 12179490 | Clamp | 2 |
| 24 | 115934 | Union - Not for C6 - C7 and US | 1 |
| 25 | 129650 | Revolving device For C6 and C7 | 1 |
| 26 | 125857 | Thermostat - For C6 and C7 | 1 |
| 27 | 127155 | Thermostat - For C6 and C7 | 1 |
| 28 | 10260060 | Gasket - For C6 and C7 | 2 |
| 29 | 132513 | Pipe - For C7 and C8 | 1 |
| 30 | 12178990 | Clamp - For C7 and C8 | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
