Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

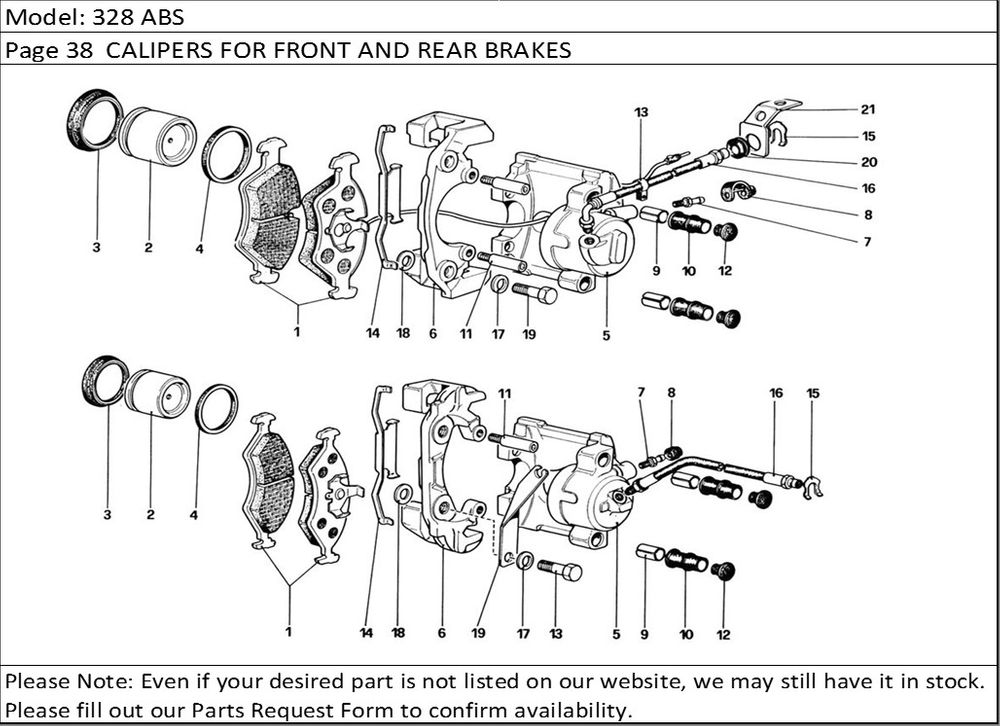

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 118589 | Set of FERIT 1/D 346GG rear pads - With Amianthus | 1 |
| 1 | 136600 | Right front caliper unit with pads Without Amianthus | 1 |
| 1 | 117181 | Left front caliper unit with pads With Amianthus | 1 |
| 1 | 136601 | Left front caliper unit with pads Without Amianthus | 1 |
| 1 | 118588 | Set of FERIT 1/D 346GG front pads - With Amianthus | 1 |
| 1 | 135704 | Set of FERODO 3416 F front pads - Without Amianthus | 1 |
| 1 | 135705 | Set of FERODO 3416 F rear pads - Without Amianthus | 1 |
| 2 | - | Brake cylinderNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 2 | - | Brake cylinderNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 3 | - | Sealing ring - With kit no. 116927 | 2 |
| 4 | - | Stop ringNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 4 | - | Stop ringNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 5 | - | Cylinder bodyNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 5 | - | Cylinder bodyNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 6 | - | Support for caliperNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 6 | - | Support for caliperNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 7 | - | BleederNot supplied as spare parts but only with units 117181 abd 117182 - 136600 and 136601 | 2 |
| 7 | - | BleederNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 8 | 116928 | Overhaul kit rear calipers | 2 |
| 8 | 116927 | Overhaul kit front calipers | 1 |
| 8 | - | Bleeder capNot supplied as spare parts but only with units 117181 and 117182 - 136602 and 136603 | 2 |
| 8 | - | Bleeder cap | 2 |
| 9 | - | Guide bush - With kit no. 116928 | 2 |
| 9 | - | Guide bush - With kit no. 116727 | 2 |
| 10 | - | Dust protection ring - Col kit no. 116927 | 4 |
| 10 | - | Dust protection ring - With kit no. 116928 | 4 |
| 11 | 95691540 | Threaded pin | 4 |
| 12 | - | Cap - With kit no. 116927 | 4 |
| 12 | - | Cap - With kit no. 116928 | 4 |
| 13 | 40135402 | Clamp for pad cable | 8 |
| 13 | 117194 | Calipers fixing screw | 4 |
| 14 | 95691542 | Clip for caliper | 2 |
| 14 | 95691541 | Clip for caliper | 2 |
| 15 | 116374 | Clamp for hose | 2 |
| 16 | 118100 | Hose | 2 |
| 16 | 118101 | Hose | 2 |
| 17 | 11198371 | Washer | 4 |
| 17 | 106854 | Washer | 4 |
| 18 | 108921 | Ditto, thickness 0,6 mm. | 4 |
| 18 | 117086 | Ditto, thickness 0,5 mm. | 4 |
| 18 | 108283 | Ditto, thickness 0,4 mm. | 4 |
| 18 | 108920 | Ditto, thickness 0,5 mm. | 4 |
| 18 | 117085 | Ditto, thickness 0,3 mm. | 4 |
| 18 | 108919 | Ditto, thickness 0,3 mm. | 4 |
| 18 | 108922 | Ditto, thickness 0,7 mm. | 4 |
| 18 | 108918 | Shim between caliper and stub axle, 0,2 mm. Thickness | 4 |
| 18 | 117084 | Shim between caliper and hub holder - 0,2 mm. Thickness | 4 |
| 18 | 107835 | Ditto, thickness 1mm | 4 |
| 18 | 108924 | Ditto, thickness 1 mm. | 4 |
| 18 | 108923 | Ditto, thickness 0,8 mm. | 4 |
| 19 | 131870 | Left bracket | 1 |
| 19 | 117193 | Screw fixing caliper to stub axle | 4 |
| 19 | 131869 | Right bracket | 1 |
| 20 | 10397680 | Fair-lead | 2 |
| 21 | 127847 | Right braket for hose | 1 |
| 21 | 117184 | Right rear caliper unit with pads -With Amianthus | 1 |
| 21 | 117183 | Left rearcaliper unit with pads - With Amianthus | 1 |
| 21 | 136602 | Right rear caliper unit with pads -With Amianthus | 1 |
| 21 | 127839 | Left braket for hose | 1 |
| 21 | 136603 | Left rear caliper unit with pads -Without Amianthus | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
