Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

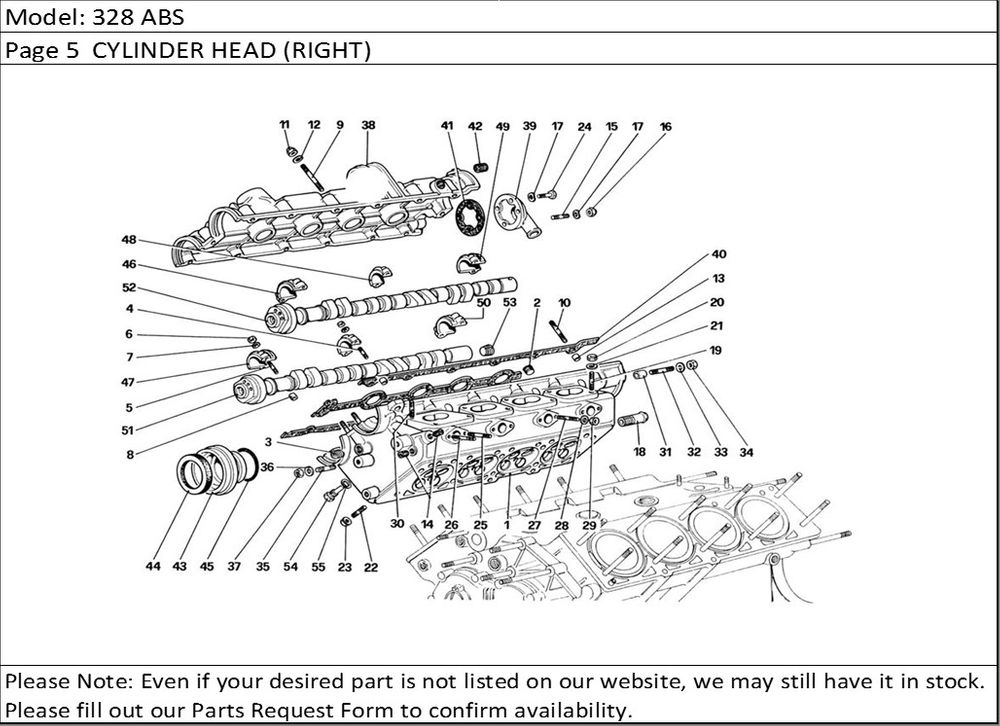

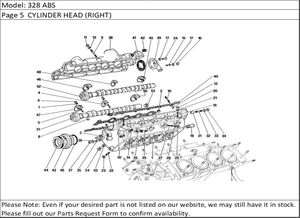

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 127488 | Right cylinder head completeFor US and CH | 1 |
| 1 | 131877 | Right cylinder head completeNot for US and. CH | 1 |
| 1 | 127489 | Right cylinder headWith complete cylinder head no. 127488 | 1 |
| 1 | 127489 | Right cylinder headWith complete cylinder head no. 131877 | 1 |
| 2 | 127635 | Plug | 5 |
| 3 | 13526070 | Heli - coil | 1 |
| 4 | 102735 | Stud for intermediate caps | 12 |
| 5 | 102754 | Stud for outer caps | 8 |
| 6 | 15896211 | Nut | 20 |
| 7 | 11197773 | Washer | 20 |
| 8 | 102725 | Dowel | 20 |
| 9 | 13541621 | Stud | 12 |
| 10 | 13541721 | Stud | 2 |
| 11 | 100044 | Selflocking nut | 14 |
| 12 | 11197771 | Washer | 14 |
| 13 | 102725 | Dowel | 2 |
| 14 | 14326150 | Plug | 3 |
| 15 | 11500521 | Stud | 2 |
| 16 | 12575411 | Nut | 2 |
| 17 | 12601271 | Washer | 4 |
| 18 | 106227 | Nipple for heater | 1 |
| 19 | 13543321 | Stud | 8 |
| 20 | 16100811 | Nut | 10 |
| 21 | 11198071 | Washer | 10 |
| 22 | 12354521 | Stud securing exhaust manifold | 8 |
| 23 | 124525 | Nut | 8 |
| 24 | 10902221 | Screw | 2 |
| 25 | 13541621 | Short stud | 3 |
| 26 | 13541721 | Long stud | 4 |
| 27 | 13541821 | Stud for water manifold (cylinder no. 3) | 1 |
| 28 | 11197773 | Washer | 8 |
| 29 | 15896211 | Nut | 8 |
| 30 | 13543521 | Stud for fixing suction manifoldFront part | 2 |
| 31 | 102725 | Dowel | 22 |
| 32 | 11500521 | Stud for fixing calotte support | 2 |
| 33 | 11197773 | Washer | 2 |
| 34 | 15896211 | Nut | 2 |
| 35 | 13543321 | Stud | 3 |
| 36 | 12601371 | Washer | 3 |
| 37 | 16104411 | Nut | 3 |
| 38 | 111564 | Head cover, complet With complete cylinder head | 1 |
| 38 | 117220 | Right head cover With complete cover | 1 |
| 39 | 103808 | End cover with blow-by inlet | 1 |
| 40 | 117263 | Gasket - Not for C8 | 1 |
| 40 | 132916 | Gasket - For C8 | 1 |
| 41 | 132919 | Gasket - For C8 | 1 |
| 41 | 119067 | Gasket - Not for C8 | 1 |
| 42 | 13525470 | Heli - coil | 3 |
| 43 | 117257 | Front cover | 2 |
| 44 | 105389 | Sealing ring | 2 |
| 45 | 117275 | Sealing ring | 2 |
| 46 | 117039 | Front cap inlet side - With complete cylinder head | 1 |
| 47 | 117040 | Front cap exhaust side With complete cylinder head | 1 |
| 48 | 126811 | Intermediate cap With complete cylinder head | 6 |
| 49 | 126813 | Rear cap inlet side With complete cylinder head | 1 |
| 50 | 126812 | Rear cap exhaust side With complete cylinder head | 1 |
| 51 | 126556 | Right exhaust camshaft, complete | 1 |
| 52 | 126186 | Right intake camshaft complete | 1 |
| 53 | 10269750 | Plug | 1 |
| 54 | 127545 | Plug -Not for US and CH | 4 |
| 55 | 10257060 | Gasket-Not for US and CH | 4 |
