Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

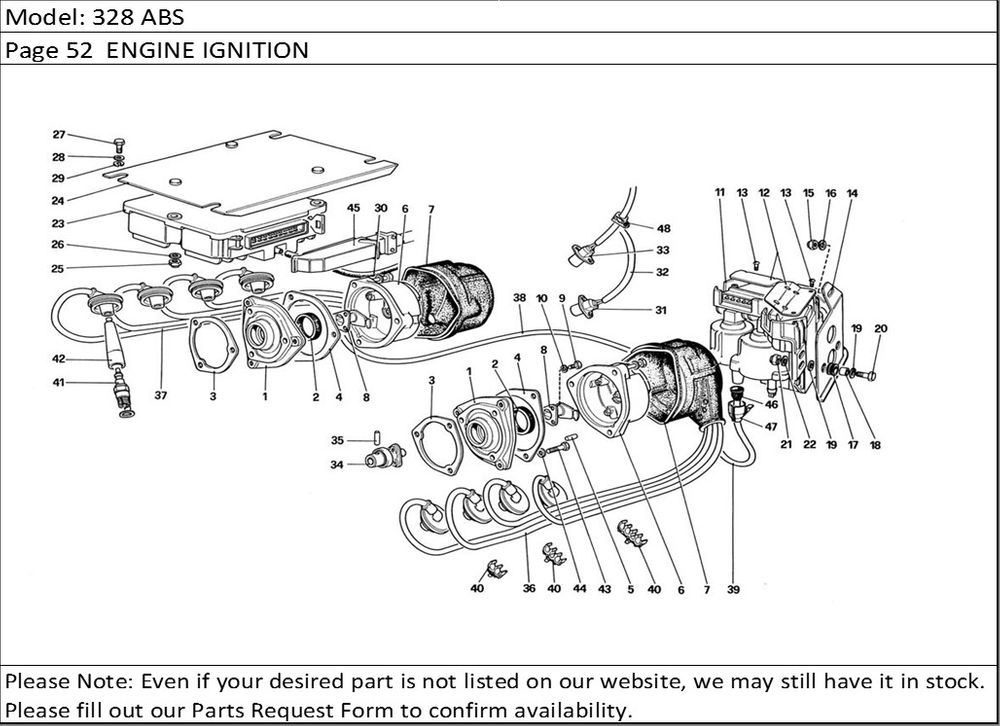

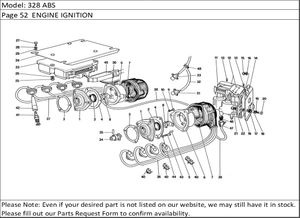

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | HT021 | Complete HT Leads Set | 1 |
| 1 | 133100 | Cap distributor support | 2 |
| 2 | 132453 | DISTRIBUTOR OIL SEAL | 2 |
| 3 | 134956 | Gasket - For C8 | 2 |
| 3 | 117261 | Gasket - Not for C8 | 2 |
| 4 | 119409 | Gasket | 2 |
| 5 | 10331111 | Dowel | 2 |
| 6 | 115518 | Distributor cap | 2 |
| 7 | 118889 | Distributor boot | 2 |
| 8 | 126139 | Rotor arm | 2 |
| 9 | 10444521 | Screw | 6 |
| 10 | 12544071 | Washer | 6 |
| 11 | 127134 | Power module with coil - After exhaustion use no. 124273 | 2 |
| 12 | 128169 | Protection | 2 |
| 13 | 15921807 | Screw | 4 |
| 14 | 127136 | Coil support | 1 |
| 14 | 136940 | Coil support | 1 |
| 15 | 12574211 | Nut | 2 |
| 16 | 14496401 | Washer | 2 |
| 17 | 103549 | Bush vibration damping | 4 |
| 18 | 103550 | Spacer | 4 |
| 19 | 12643701 | Washer | 8 |
| 20 | 10903021 | Screw | 1 |
| 20 | 10902821 | Screw | 3 |
| 21 | 12574211 | Nut | 4 |
| 22 | 14496401 | Washer | 4 |
| 23 | 127422 | Electronic ignition module | 1 |
| 24 | 127918 | Plate - For US and C8 | 1 |
| 24 | 127138 | Plate - Not for US and C8 | 1 |
| 25 | 12574211 | Nut | 3 |
| 26 | 14496401 | Washer | 3 |
| 27 | 10902021 | Screw | 4 |
| 28 | 12643701 | Washer | 4 |
| 29 | 106850 | Washer | 4 |
| 30 | 129969 | Pipe | 1 |
| 31 | 128364 | TDC sensor | 1 |
| 32 | 128365 | Black pipe | 1 |
| 33 | 119052 | Angular speed sensor | 1 |
| 34 | 126166 | Coupling - After exhaustion use no. 133063 | 2 |
| 35 | 132355 | Pin | 2 |
| 36 | 118826 | Cables, left spark plugs | 1 |
| 37 | 118827 | Cables, right spark plugs | 1 |
| 38 | 119356 | Cable coil right distributor | 1 |
| 39 | 128166 | Cable coil left distributor | 1 |
| 40 | 121788 | Small clip for cable support | 4 |
| 40 | 121789 | Small clip for cable support | 2 |
| 40 | 121790 | Small clip for cable support | 2 |
| 41 | 131121 | Spark plug (CHAMPION) In alternative | 8 |
| 41 | 130965 | Spark plug (BOSCH) In alternative | 8 |
| 41 | 124274 | Spark plug (CHAMPION) After exhausiton use no. 131922 | 8 |
| 42 | 126699 | Extension | 8 |
| 42 | 138261 | Extension - For US and CH | 8 |
| 43 | 10902321 | Screw | 2 |
| 44 | 11197771 | Washer | 2 |
| 45 | 61916900 | 25 way connector | 1 |
| 46 | 122970 | Cover | 2 |
| 47 | 129620 | Cover protection | 2 |
| 48 | 129544 | Clamp - From car no. 63027 | 1 |
