Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

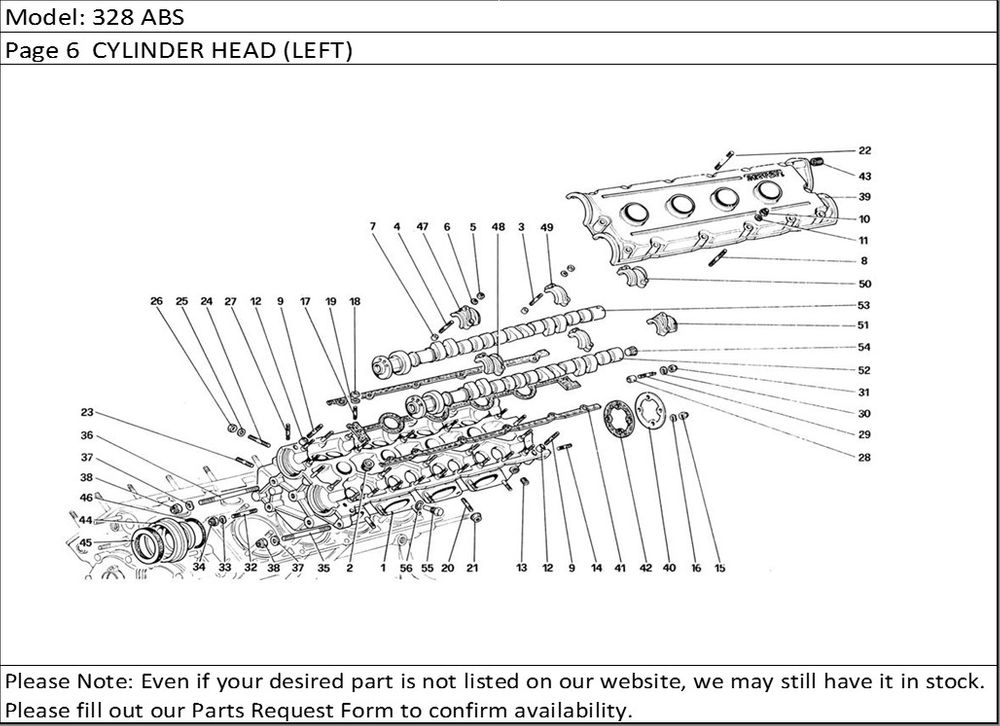

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 131890 | Left cylinder head, completeNot for US and CH | 1 |
| 1 | 131892 | Left cylinder head, completeNot for US and CH | 1 |
| 1 | 127491 | Left cylinder headWith complete cylinder head no. 131890 | 1 |
| 1 | 127491 | Left cylinder headWith complete cylinder head no. 131892 | 1 |
| 2 | 127635 | Plug | 5 |
| 3 | 102735 | Stud for intermediate caps | 12 |
| 4 | 102754 | Stud for outer caps | 8 |
| 5 | 15896211 | Nut | 20 |
| 6 | 11197773 | Washer | 20 |
| 7 | 102725 | Dowel | 20 |
| 8 | 13541621 | Stud | 11 |
| 9 | 13541721 | Stud | 2 |
| 10 | 100044 | Selflocking nut | 14 |
| 11 | 11197771 | Washer | 14 |
| 12 | 102725 | Dowel | 2 |
| 13 | 14326150 | Plug | 3 |
| 14 | 11500321 | Stud | 4 |
| 15 | 12575411 | Nut | 4 |
| 16 | 12601271 | Washer | 4 |
| 17 | 13543321 | Stud | 9 |
| 18 | 16100811 | Nut | 10 |
| 19 | 11198071 | Washer | 10 |
| 20 | 12354521 | Stud securing exhaust manifold | 8 |
| 21 | 124525 | Nut | 8 |
| 22 | 13541721 | Stud | 1 |
| 23 | 13541621 | Short stud | 3 |
| 24 | 13541721 | Long stud | 5 |
| 25 | 11197773 | Washer | 8 |
| 26 | 15896211 | Nut | 8 |
| 27 | 13543521 | Stud for fixing suction manifoldFront part | 1 |
| 28 | 102725 | Dowel | 2 |
| 29 | 11500521 | Stud for fixing distributor cap support | 2 |
| 30 | 11197773 | Washer | 2 |
| 31 | 15896211 | Nut | 2 |
| 32 | 13543721 | Stud | 3 |
| 33 | 12601371 | Washer | 3 |
| 34 | 16104411 | Nut | 3 |
| 35 | 13953421 | Stud securing cover For US | 1 |
| 35 | 13953821 | Stud securing cover Not for US | 1 |
| 36 | 115237 | Stud to fix crankcase and compressor support - For US | 1 |
| 36 | 13451821 | Stud to fix. crankcase and compressor support - Not for US | 1 |
| 37 | 14496621 | Washer | 1 |
| 37 | 107993 | Washer | 1 |
| 38 | 12574521 | Nut | 2 |
| 39 | 117221 | Left head cover - With complete head cover | 1 |
| 39 | 111565 | Left head cover, complete - With complete cylinder head | 1 |
| 40 | 103796 | Rear cover | 1 |
| 41 | 132917 | Gasket - For C8 | 1 |
| 41 | 117264 | Gasket - Not for C8 | 1 |
| 42 | 104694 | Gasket - Not for C8 | 1 |
| 42 | 132918 | Gasket - For C8 | 1 |
| 43 | 13525470 | Heli - coil | 3 |
| 44 | 117257 | Front cover | 2 |
| 45 | 105389 | Sealing ring | 2 |
| 46 | 117275 | Sealing ring | 2 |
| 47 | 117042 | Front cap inlet side - With complete cylinder head | 1 |
| 48 | 117041 | Front cap exhaust side - With complete cylinder head | 1 |
| 49 | 126811 | Intermediate cap - With complete cylinder head | 6 |
| 50 | 126202 | Rear cap inlet side - With complete cylinder head | 1 |
| 51 | 126203 | Rear cap exhaust side - With complete cylinder head | 1 |
| 52 | 126558 | Left exhaust camshaft complete | 1 |
| 53 | 126188 | Left intake camshaft complete | 1 |
| 54 | 10269750 | Plug | 1 |
| 55 | 127545 | Plug - Not for US and CH | 4 |
| 56 | 10257060 | Gasket- Not for US and CH | 4 |
