Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

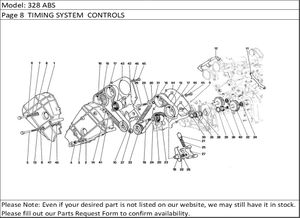

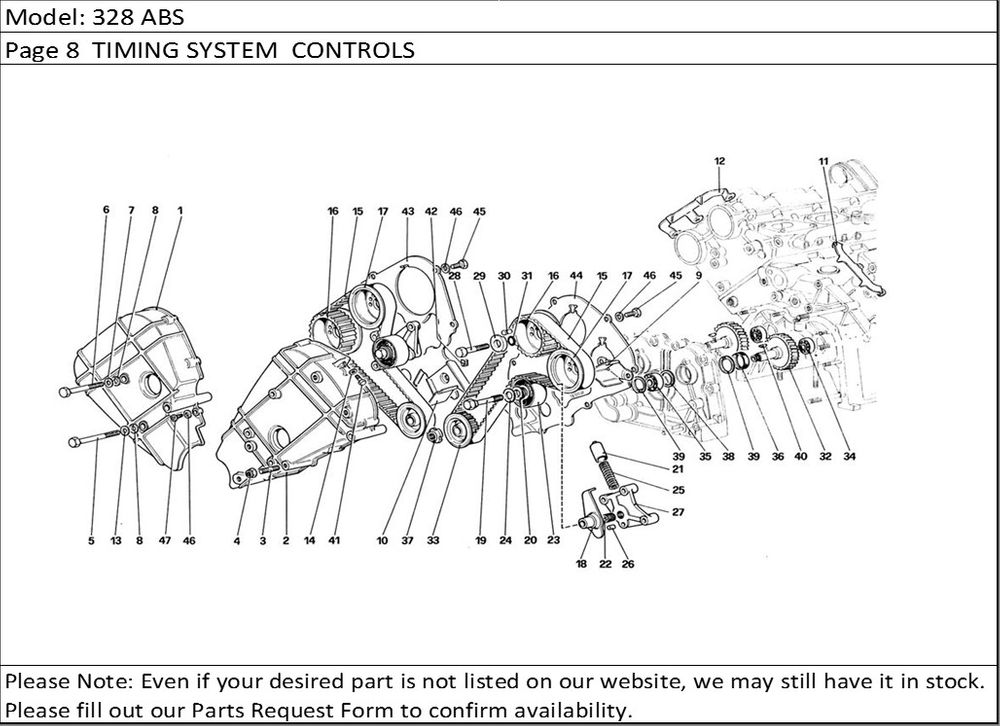

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 117438 | Left cover, complete | 1 |
| 1 | 121653 | Right cover | 1 |
| 2 | 124681 | Left cover, complete | 1 |
| 2 | 123697 | Left cover - With assembly no. 124681 Not for US | 1 |
| 3 | 13546221 | Stud | 1 |
| 4 | 13598021 | Nut | 1 |
| 5 | 121660 | Screw | 2 |
| 6 | 109013 | Screw | 1 |
| 7 | 12638601 | Washer | 2 |
| 8 | 106853 | Washer | 3 |
| 9 | 125115 | Protection left belt - Not for US | 1 |
| 10 | 125114 | Protection right belt - Not for US | 1 |
| 11 | 125110 | Timing reference plate left cylinder head - Not for US | 1 |
| 12 | 125109 | Timing reference plate right cylinder head - Not for US | 1 |
| 13 | 105391 | Washer | 1 |
| 14 | 12601271 | Washer | 1 |
| 15 | 111334 | Timing belt | 2 |
| 16 | 126569 | Driver gear | 2 |
| 17 | 126568 | Driver gear | 2 |
| 18 | 117256 | Pelt stretcher plate | 2 |
| 19 | 111458 | Screw | 2 |
| 20 | 111460 | Spacer | 2 |
| 21 | 102819 | Pin | 2 |
| 22 | 13524670 | Heli - coil | 2 |
| 23 | 126720 | Belt idler ring - After exhaustion use no. 105206 | 2 |
| 24 | 102824 | Washer | 2 |
| 25 | 104148 | Spring | 2 |
| 26 | 10839610 | Dowel pin | 2 |
| 27 | 118152 | Support for right belt stretcher | 1 |
| 27 | 118153 | Support for left belt stretcher | 1 |
| 28 | 16326431 | Screw | 4 |
| 29 | 117274 | Washer | 4 |
| 30 | 106203 | Dowel | 4 |
| 31 | 114808 | Sealing ring | 4 |
| 32 | 121272 | Drive gear for camshaft | 2 |
| 33 | 121273 | Driving pulley | 2 |
| 34 | 121275 | Bearing of crankcase | 2 |
| 35 | 121274 | Bearing on front cover | 2 |
| 36 | 121276 | Oil retaining | 2 |
| 37 | 104919 | Ring nut | 2 |
| 38 | 121279 | Washer | 2 |
| 39 | 121277 | Seeger | 4 |
| 40 | 10206320 | Tongue | 2 |
| 41 | 10902011 | Screw | 1 |
| 42 | 60793500 | Spring clip - For US | 1 |
| 43 | 117628 | Protection right belt - For US | 1 |
| 44 | 117627 | Protection left belt - For US | 1 |
| 45 | 10977711 | Screw - For US | 12 |
| 46 | 12601181 | Washer - For US | 13 |
| 47 | 15688502 | Screw - For US | 1 |
