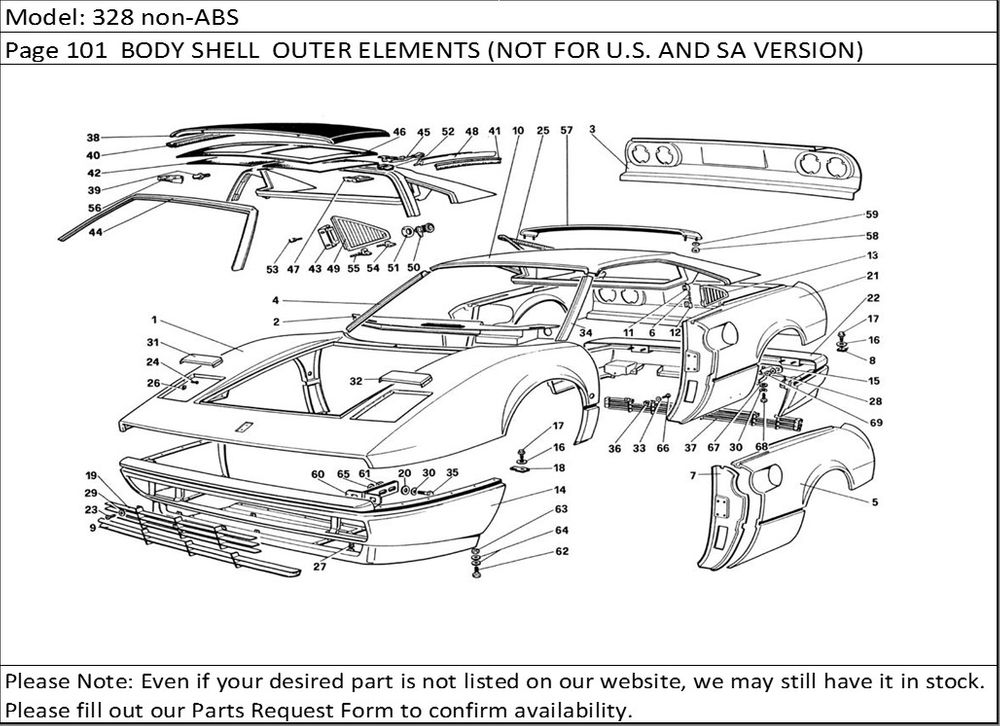

328 non-ABS Page 101 BODY SHELL OUTER ELEMENTS (NOT FOR U.S. AND SA VERSION)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 61751200 | Front panel | 1 |
| 2 | 61797700 | Panel L.H.D. | 1 |
| 3 | 61109600 | Panel for number plate seat | 1 |
| 4 | 61141100 | Panel for R.H. post GTB | 1 |
| 5 | 60358900 | Rear fender R.H. GTS | 1 |
| 5 | 60359106 | Rear fender R.H. GTB | 1 |
| 5 | 60359007 | Rear fender L.H. GTS | 1 |
| 5 | 60359205 | Rear fender L.H. GTB | 1 |
| 6 | 60042108 | Hinge pin GTB | 2 |
| 7 | 60216801 | R.H. pillar for fender L.H.D. | 1 |
| 7 | 60891000 | R.H. pillar for fender R.H.D. | 1 |
| 7 | 60216900 | L.H. pillar for fender L.H.D. | 1 |
| 7 | 60891100 | L.H. pillar for fender R.H.D. | 1 |
| 8 | 61878200 | Clip | 8 |
| 9 | 61797300 | Under grill | 1 |
| 10 | 60214806 | Roof panel GTB | 1 |
| 11 | 60040805 | Upper hinge GTB | 1 |
| 12 | 60040706 | Lower hinge GTB | 1 |
| 13 | 60337409 | L.H. grill GTB | 1 |
| 13 | 60370004 | R.H. grill GTB | 1 |
| 14 | 61741700 | Front lower panel | 1 |
| 15 | 61640600 | Bracket | 2 |
| 16 | 12640608 | Washer | 20 |
| 17 | 15926101 | Screw | 20 |
| 18 | 61848800 | Clip | 12 |
| 19 | 61736800 | Grill | 1 |
| 20 | 12642001 | Washer | 4 |
| 21 | 61901500 | Rear panel GTB | 1 |
| 21 | 61901700 | Rear panel GTS | 1 |
| 22 | 61740400 | Rear lower panel | 1 |
| 23 | 15688178 | Screw | 8 |
| 24 | 15903878 | Screw | 8 |
| 25 | 60528300 | Gasket | 2 |
| 26 | 60679600 | Clip | 8 |
| 27 | 60696300 | Clip | 8 |
| 28 | 20291308 | Washer | 4 |
| 29 | 10519306 | Washer | 8 |
| 30 | 106852 | Washer | 6 |
| 31 | 61810800 | R.H. cover | 1 |
| 32 | 61810900 | L.H. cover | 1 |
| 33 | 12637806 | Washer | 9 |
| 34 | 61141200 | Covering for L.H. post. GTB | 1 |
| 35 | 16043421 | Screw | 4 |
| 36 | 61066500 | Clip | 9 |
| 37 | 61734400 | Rear grill | 1 |
| 38 | 61128700 | Hard top GTS | 1 |
| 39 | 60189008 | Front pin GTS | 2 |
| 40 | 60398104 | Gasket GTS | 2 |
| 41 | 60608500 | Gasket GTS | 2 |
| 42 | 61202800 | R.H. covering GTS | 1 |
| 42 | 61202900 | L.H. covering GTS | 1 |
| 43 | 60325305 | Grill hinge GTS | 2 |
| 44 | 60872700 | Framework for windshield GTS | 1 |
| 45 | 60421500 | Hard top opening handle GTS | 2 |
| 46 | 61203000 | Covering GTS | 1 |
| 47 | 60500500 | Rear bracket GTS | 2 |
| 48 | 60608300 | R.H. gutter GTS | 1 |
| 48 | 60608400 | L.H. gutter GTS | 1 |
| 49 | 61818600 | R.H. grill GTS | 1 |
| 49 | 61818700 | L.H. grill GTS | 1 |
| 50 | 61819300 | Block for grill GTS | 2 |
| 51 | 61819400 | Ring nut for grill GTS | 2 |
| 52 | 60395506 | Handle portection GTS | 2 |
| 53 | 60892600 | Grommet GTS | 4 |
| 54 | 20106001 | Rear gr.ommet GTS | 2 |
| 55 | 60551400 | Central grommet GTS | 2 |
| 56 | 60336807 | Front bracket GTS | 2 |
| 57 | 61290200 | Rough spoyler | 1 |
| 57 | 61024700 | Sleek spoyler | 1 |
| 58 | 12574211 | Nut | 4 |
| 59 | 12643701 | Washer | 4 |
| 60 | 61741500 | Braket | 2 |
| 61 | 16104111 | Nut | 4 |
| 62 | 10902221 | Screw | 10 |
| 63 | 15896211 | Nut | 10 |
| 64 | 12643701 | Washer | 20 |
| 65 | 12646201 | Washer | 4 |
| 66 | 15688278 | Screw | 9 |
| 67 | 12642001 | Washer | 2 |
| 68 | 16043411 | Screw | 2 |
| 69 | 16104111 | Nut | 4 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
