Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

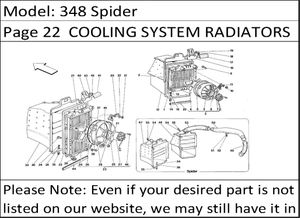

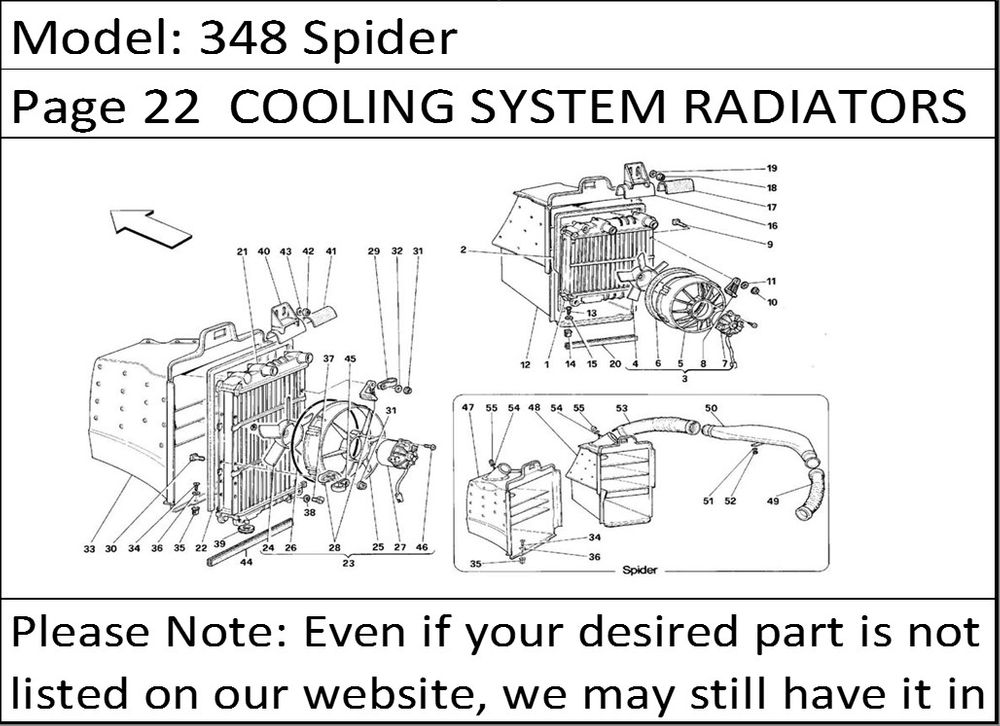

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 137619 | WATER R.H. RADIATOR | 1 |
| 2 | 63370800 | UPPER GASKET | 1 |
| 3 | 140403 | COMPLETE R.H. ELECTROFAN | 1 |
| 4 | 143544 | BLOWER | 1 |
| 5 | 143545 | AIR CONVEYOR | 1 |
| 6 | 147577 | RUBBER EDGE | 1 |
| 7 | 140808 | MOTOR | 1 |
| 8 | 147576 | SUPPORT | 4 |
| 9 | 11944811 | SCREW | 4 |
| 10 | 15896214 | NUT | 4 |
| 11 | 12644424 | WASHER | 4 |
| 12 | 62097900 | R.H. AIR INLET-Not for Spider- | 1 |
| 13 | 15903901 | SCREW | 2 |
| 14 | 14202580 | BLOCK | 2 |
| 15 | 12638124 | WASHER | 2 |
| 16 | 137621 | RADIATOR FASTENING BRACKET | 1 |
| 17 | 137630 | RUBBER THICKNESS | 2 |
| 18 | 16104411 | NUT | 2 |
| 19 | 12646724 | WASHER | 2 |
| 20 | 63370900 | LOWER GASKET | 1 |
| 21 | 137617 | WATER L.H. RADIATOR | 1 |
| 22 | 63370800 | UPPER GASKET | 1 |
| 23 | 140404 | COMPLETE L.H. ELECTROFAN | 1 |
| 24 | 147579 | BLOWER | 1 |
| 25 | 147578 | AIR CONVEYOR | 1 |
| 26 | 147580 | O RING GASKET | 1 |
| 27 | 140808 | MOTOR | 1 |
| 28 | 147581 | SUPPORT | 4 |
| 29 | 10418301 | BRACKET | 2 |
| 30 | 11944511 | SCREW | 4 |
| 31 | 15896214 | NUT | 2 |
| 32 | 12644424 | WASHER | 2 |
| 33 | 62098000 | L.H. AIR INLET-Not for Spider- | 1 |
| 34 | 15903901 | SCREW | 2 |
| 35 | 14202580 | BLOCK | 2 |
| 36 | 12638124 | WASHER | 2 |
| 37 | 140149 | THREADED PLUG | 2 |
| 38 | 140150 | GASKET | 2 |
| 39 | 137624 | PAD | 2 |
| 40 | 137621 | RADIATOR FASTENING BRACKET | 1 |
| 41 | 137630 | RUBBER THICKNESS | 1 |
| 42 | 16104411 | NUT | 2 |
| 43 | 12646724 | WASHER | 2 |
| 44 | 63370900 | LOWER GASKET | 1 |
| 45 | 10418801 | BRACKET | 2 |
| 46 | 123298 | SCREW | 8 |
| 47 | 63634400 | L.H. AIR INLET-Valid for Spider- | 1 |
| 48 | 63634300 | R.H. AIR INLET-Valid for Spider- | 1 |
| 49 | 155062 | AIR INTAKE DUCT-Valid for Spider- | 2 |
| 50 | 155040 | R.H. CENTRAL DUCT-Valid for Spider- | 1 |
| - | 155038 | L.H. CENTRAL DUCT-Valid for Spider- | 1 |
| 51 | 12637821 | WASHER-Valid for Spider- | 2 |
| 52 | 169180 | NUT-Valid for Spider- | 2 |
| 53 | 155061 | R.H. AIR INLET PIPE-Valid for Spider- | 1 |
| - | 155059 | L.H. AIR INLET PIPE-Valid for Spider- | 1 |
| 54 | 14496424 | WASHER-Valid for Spider- | 2 |
| 55 | 102741 | NUT-Valid for Spider- | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
