Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

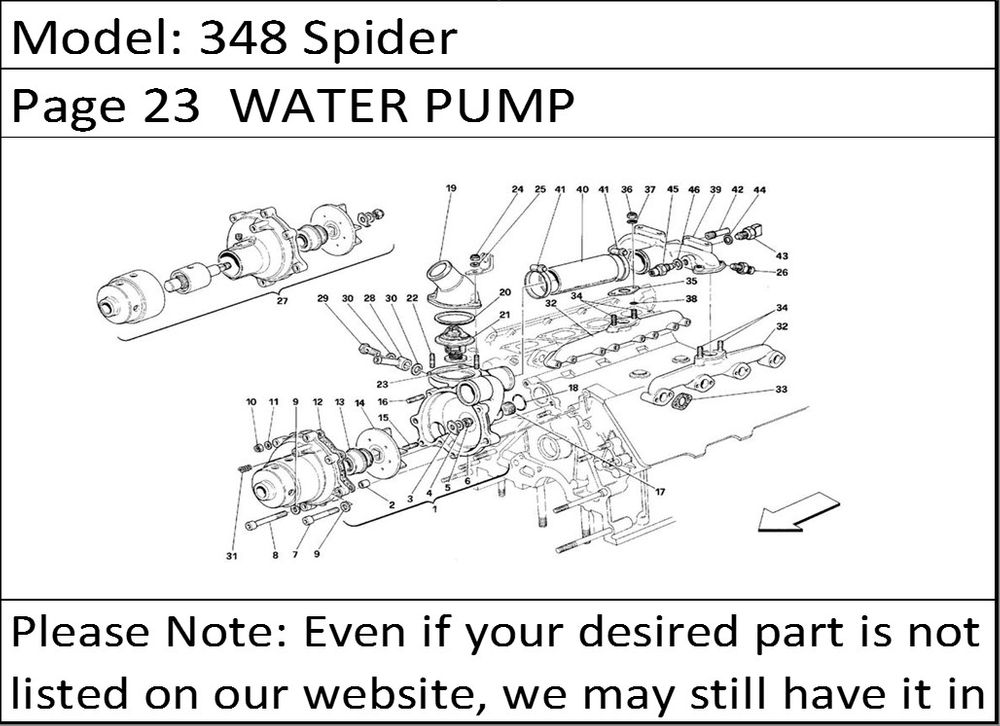

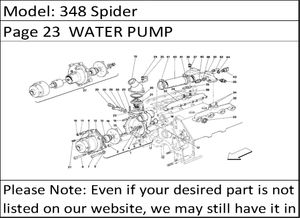

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 160473 | COMPLETE WATER PUMP | 1 |
| 2 | 102704 | DOWEL | 2 |
| 3 | 139457 | PLATE | 1 |
| 4 | 10730321 | WASHER | 1 |
| 5 | 100436 | NUT | 1 |
| 6 | 156350 | WATER PUMP BODY WITH STUDS | 1 |
| 7 | 14306921 | SCREW | 2 |
| 8 | 14302221 | SCREW | 2 |
| 9 | 12601374 | WASHER | 4 |
| 10 | 102741 | NUT | 4 |
| 11 | 12639701 | WASHER | 4 |
| 12 | 132979 | GASKET | 1 |
| 13 | 183759 | SEAL RING | 1 |
| 14 | 160456 | WATER PUMP IMPELLER | 1 |
| 15 | 13541124 | STUD | 1 |
| 16 | 13541324 | STUD | 3 |
| 17 | 10268450 | PLUG | 1 |
| 18 | 101044 | O RING GASKET | 1 |
| 19 | 136570 | THERMOSTATIC VALVE COVER | 1 |
| 20 | 105192 | GASKET | 1 |
| 21 | 165473 | THERMOSTAT | 1 |
| 22 | 13541124 | STUD | 2 |
| 23 | 13541224 | STUD | 1 |
| 24 | 102948 | NUT | 3 |
| 25 | 12639701 | WASHER | 3 |
| 26 | 104628 | THERMISTOR | 1 |
| 27 | 143275 | FRONT PART COMPLETE WATER PUMP | 1 |
| 28 | 152416 | UNION | 1 |
| 29 | 152417 | UNION | 1 |
| 30 | 10259960 | GASKET | 2 |
| 31 | 13525470 | THREADED INSERT | 1 |
| 32 | 138852 | WATER MANIFOLD | 2 |
| 33 | 132980 | GASKET | 8 |
| 34 | 13516821 | STUD | 4 |
| 35 | 132981 | GASKET | 2 |
| 36 | 16100821 | NUT | 4 |
| 37 | 11198074 | WASHER | 4 |
| 38 | 103039 | O RING GASKET | 4 |
| 39 | 144246 | WATER OUTLET MANIFOLD CONNECTION DUCT | 1 |
| 40 | 138981 | SLEEVE | 1 |
| 41 | 13000690 | SCREW COLLAR | 2 |
| 42 | 106241 | UNION | 1 |
| 43 | 125769 | TEMPERATURE SENSOR | 2 |
| 44 | 10298460 | GASKET | 2 |
| 45 | 136304 | THERMOMETRIC SWITCH | 1 |
| 46 | 10298460 | GASKET | 1 |
