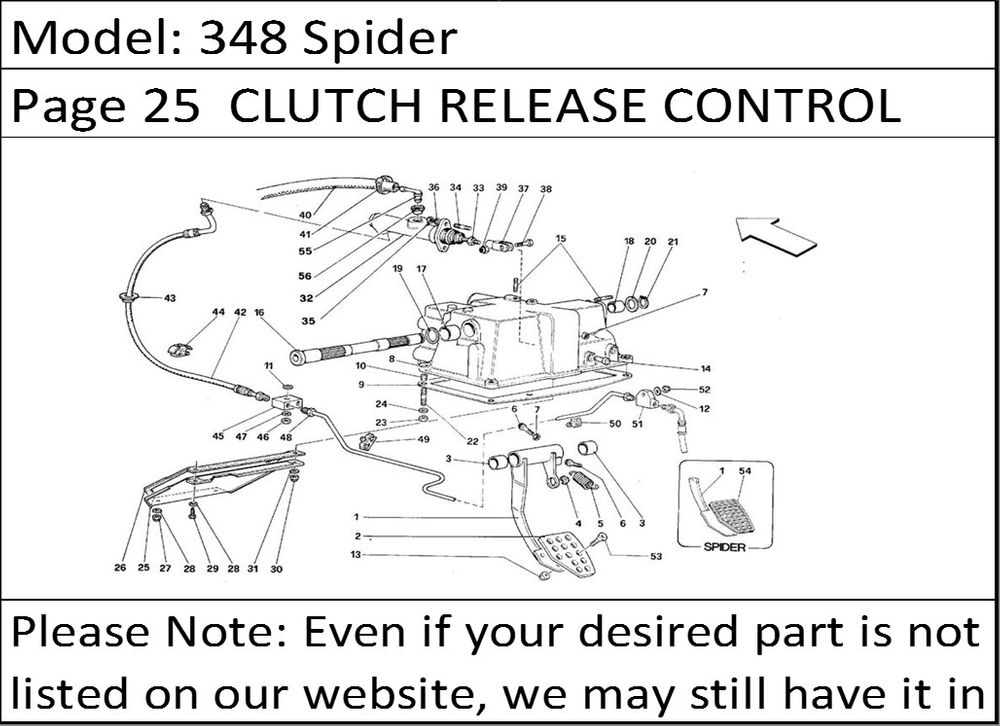

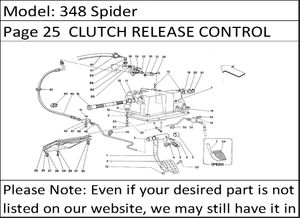

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 157268 | CLUTCH PEDAL-Not for Spider- | 1 |
- | 149293 | CLUTCH PEDAL-Valid for Spider- | 1 |
2 | 157273 | PEDAL SLAB-Not for Spider- | 1 |
3 | 103163 | BUSHING | 2 |
4 | 109407 | JOINT | 1 |
5 | 101305 | SPRING | 1 |
6 | 144011 | PIN | 2 |
7 | 16102314 | NUT | 2 |
- | 147690 | COMPLETE PEDAL SUPPORT | 1 |
8 | ------ | PEDAL SUPPORT-Not as spare part--With complete pedal support- | 1 |
9 | 129615 | GASKET | 1 |
10 | 13525770 | THREADED INSERT | 2 |
11 | 143041 | SPACER | 1 |
12 | 12639701 | WASHER | 1 |
13 | 15896214 | NUT | 2 |
14 | 129612 | PIN | 1 |
15 | 11500124 | STUD | 4 |
16 | 129613 | PEDALS SUPPORT PIN | 1 |
17 | 101314 | BUSHING | 1 |
18 | 112153 | BUSHING | 1 |
19 | 112125 | SPACER WASHER | 1 |
20 | 112127 | WASHER 0.9 mm-Possible fitting- | 1 |
- | 112128 | WASHER 1.0 mm-Possible fitting- | 1 |
- | 112129 | WASHER 1.1 mm-Possible fitting- | 1 |
- | 112130 | WASHER 1.2 mm-Possible fitting- | 1 |
- | 112131 | WASHER 1.3 mm-Possible fitting- | 1 |
21 | 11066676 | SEEGER RING | 1 |
22 | 13516821 | STUD | 4 |
23 | 16104121 | NUT | 4 |
24 | 14499401 | WASHER | 4 |
25 | 62877200 | PEDAL SUPPORT PROTECTION | 1 |
26 | 62694400 | GASKET | 1 |
27 | 102948 | NUT | 2 |
28 | 12646601 | WASHER | 3 |
29 | 15925601 | SCREW | 1 |
30 | 16104121 | NUT | 1 |
31 | 14499401 | WASHER | 1 |
32 | 175211 | CLUTCH PUMP | 1 |
33 | 16102314 | NUT | 1 |
34 | 13516821 | STUD | 2 |
35 | 133215 | NUT | 2 |
36 | 12638524 | WASHER | 2 |
37 | 10248271 | FORK | 1 |
38 | 130926 | SCREW | 1 |
39 | 16104411 | NUT | 1 |
40 | 151845 | PIPE | 1 |
41 | 157934 | SCREW COLLAR | 2 |
42 | 140669 | HOSE | 1 |
43 | 105369 | CABLE GROMMET | 1 |
44 | 141699 | CLIP | 1 |
45 | 139375 | UNION | 1 |
46 | 102741 | NUT | 1 |
47 | 12639701 | WASHER | 1 |
48 | 140666 | INTERMEDIATE TUBE | 1 |
49 | 141522 | CLIP | 9 |
50 | 141521 | CLIP | 2 |
51 | 139471 | UNION | 1 |
52 | 102741 | NUT | 1 |
53 | 14441324 | SCREW | 2 |
54 | 149295 | PEDAL SLAB-Valid for Spider- | 1 |
55 | 184497 | PUMP INLET UNION | 1 |
56 | 175189 | SEALING RING FOR UNION | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
