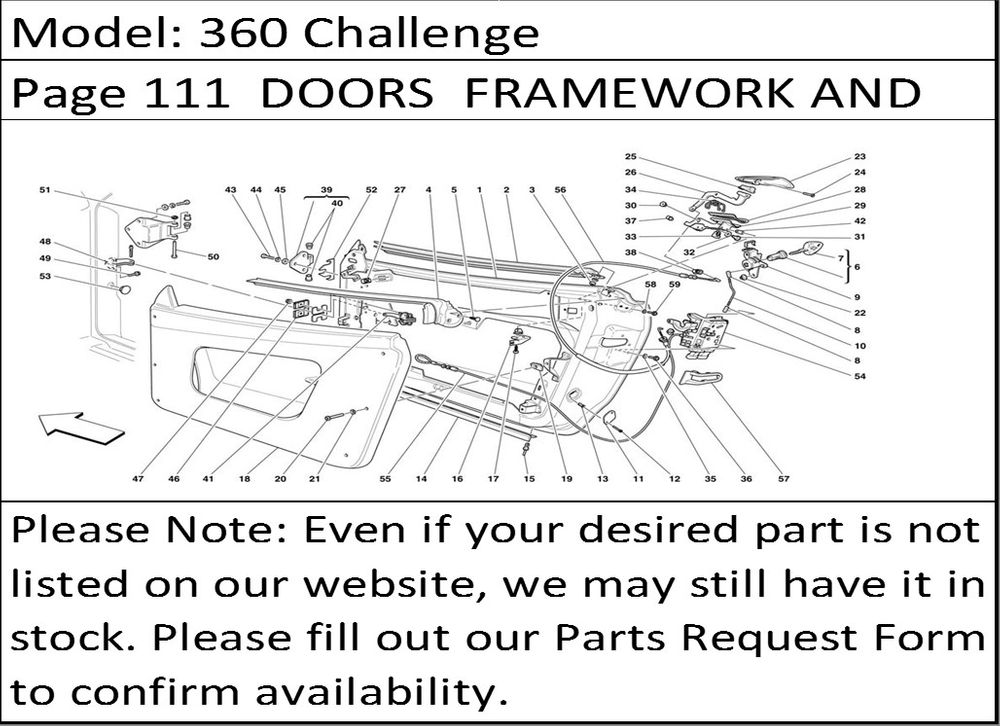

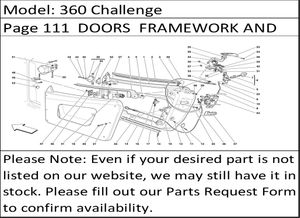

360 Challenge Page 111 DOORS FRAMEWORK AND COVERINGS OPENING CONTROL AND HINGES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 66144111 | L.H. DOOR FRAME | 1 |
| 1 | 66144511 | R.H. DOOR FRAME | 1 |
| 2 | 65164400 | R.H. GASKET OUTER GLASS SCRAPER | 1 |
| 2 | 65164500 | L.H. GASKET OUTER GLASS SCRAPER | 1 |
| 3 | 14042177 | NUT | 2 |
| 4 | 65544700 | L.H. GASKET INNER GLASS SCRAPER | 1 |
| 4 | 65544600 | R.H. GASKET INNER GLASS SCRAPER | 1 |
| 5 | 14591687 | FIXING BUTTON | 4 |
| 6 | 183289 | LOCKS SET COMPLETED WITH KEY | 1 |
| 7 | 183474 | BLANK KEY | |
| 8 | 62794000 | FLEXIBLE JOINT | 4 |
| 9 | 65839400 | R.H. DOOR LOCK BLOCK | 1 |
| 9 | 65839500 | L.H. DOOR LOCK BLOCK | 1 |
| 10 | 65836500 | SAFETY TIE ROD | 2 |
| 11 | 182531 | PLUG | 2 |
| 12 | 15901570 | SCREW | 4 |
| 13 | 65704200 | FIXING CLIP | 4 |
| 14 | 64855600 | GASKET | 2 |
| 15 | 62764000 | RIVET | 14 |
| 16 | 65546400 | R.H. BRACKET | 1 |
| 16 | 65547800 | L.H. BRACKET | 1 |
| 17 | 15644075 | SCREW | 4 |
| 18 | 65980900 | R.H. COVERED DOOR PANEL | 1 |
| 18 | 65981000 | L.H. COVERED DOOR PANEL | 1 |
| 19 | 14190290 | NUT | 12 |
| 20 | 60815200 | SCREW | 12 |
| 21 | 12638104 | WASHER | 12 |
| 22 | 13046011 | NUT | 4 |
| 23 | 63576110 | L.H. OUTER DOOR HANDLE | 1 |
| 23 | 63576010 | R.H. OUTER DOOR HANDLE | 1 |
| 24 | 13309277 | SCREW | 2 |
| 25 | 64861200 | L.H. INNER GASKET | 1 |
| 25 | 64861100 | R.H. INNER GASKET | 1 |
| 26 | 64860600 | LEVER | 2 |
| 27 | 14190190 | NUT | 4 |
| 28 | 64860900 | R.H. HANDLE GASKET | 1 |
| 28 | 64861000 | L.H. HANDLE GASKET | 1 |
| 29 | 64860510 | L.H. HANDLE SEAT | 1 |
| 29 | 64860410 | R.H. HANDLE SEAT | 1 |
| 30 | 65398700 | BUSHING | 2 |
| 31 | 64860800 | PIN | 2 |
| 32 | 65520700 | WASHER | 4 |
| 33 | 65398600 | GUIDE | 2 |
| 34 | 64860700 | SPRING FOR HANDLE | 2 |
| 35 | 65545900 | WASHER | 6 |
| 36 | 66207700 | SCREW | 6 |
| 37 | 63853400 | RUBBER PAD | 2 |
| 38 | 14578283 | CLIP | 2 |
| 39 | 64803300 | MOBILE HINGE | 4 |
| 40 | 62825300 | BUSHING | 8 |
| 41 | 65195200 | TIE ROD | 2 |
| 42 | 65547500 | SPACER | 6 |
| 43 | 16043934 | SCREW | 12 |
| 44 | 10571779 | WASHER | 12 |
| 45 | 14496578 | WASHER | 12 |
| 46 | 63895200 | R.H. PLATE | 1 |
| 46 | 63895300 | L.H. PLATE | 1 |
| 47 | 14059211 | NUT | 4 |
| 48 | 64810200 | R.H. BRACKET | 1 |
| 49 | 18770124 | SCREW | 4 |
| 50 | 64803400 | PIN | 4 |
| 51 | 11087974 | FLEXIBLE RING | 4 |
| 52 | 65713400 | THICKNESS | 4 |
| 53 | 66154100 | RUBBER PLUG | 2 |
| 54 | 65836200 | L.H. DOOR LOCK | 1 |
| 54 | 65836100 | R.H. DOOR LOCK | 1 |
| 55 | 66126000 | L.H. DOOR OPENING INNER CABLE | 1 |
| 55 | 65069300 | R.H. DOOR OPENING INNER CABLE | 1 |
| 56 | 68602600 | DOOR OPENING OUTER CABLE | 2 |
| 57 | 65705000 | R.H. PLATE | 1 |
| 57 | 65717800 | L.H. PLATE | 1 |
| 58 | 14446978 | WASHER | 2 |
| 59 | 66207700 | SCREW | 2 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
