Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

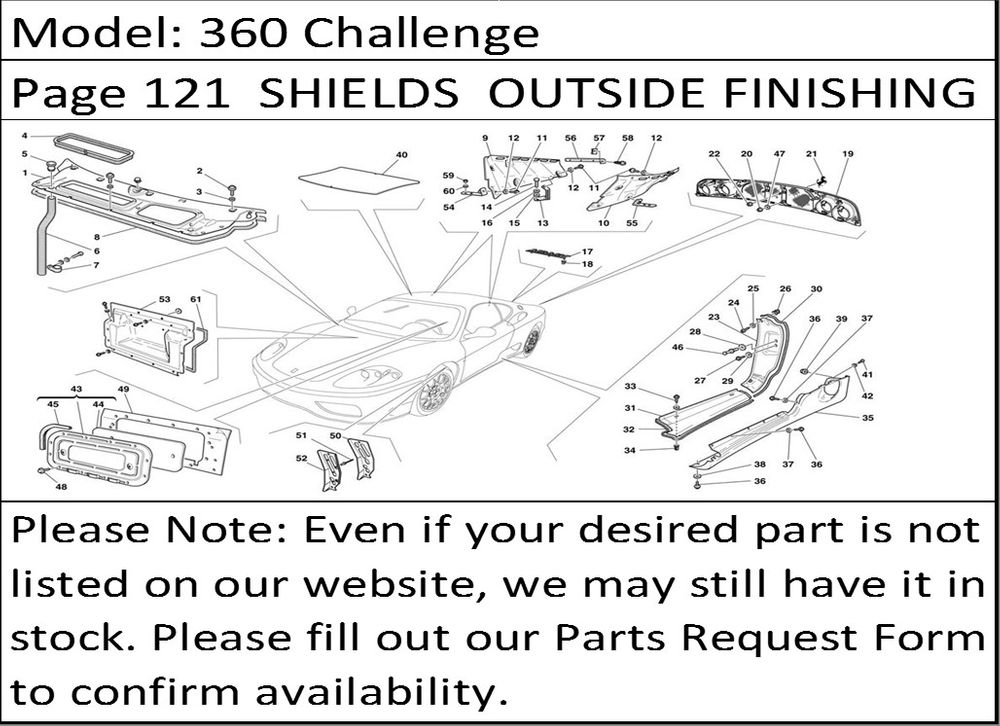

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 65544100 | WINDSHIELD PLATE | 1 |
2 | 64830600 | SCREW | 9 |
3 | 65545900 | WASHER | 10 |
4 | 65750900 | GASKET | 1 |
5 | 65004900 | WATER EXHAUST TUBE | 2 |
6 | 65992600 | WATER EXHAUST TUBE | 2 |
7 | 10442190 | BRACKET WITH SHEATH | 2 |
8 | 65841800 | GASKET | 1 |
9 | 65889600 | R.H. PANEL | 1 |
10 | 65889700 | L.H. PANEL | 1 |
11 | 168133 | SCREW | 16 |
12 | 12624178 | WASHER | 16 |
13 | 65978700 | R.H. FIXING BRACKET | 1 |
13 | 65978800 | L.H. FIXING BRACKET | 1 |
14 | 16043624 | R.H. SIDE SCREW | 2 |
14 | 10902474 | L.H. SIDE SCREW | 2 |
15 | 12601274 | L.H. SIDE WASHER | 2 |
15 | 12638524 | R.H. SIDE WASHER | 2 |
16 | 11220079 | R.H. SIDE WASHER | 2 |
17 | 61025000 | FERRARI MARK | 1 |
18 | 60324506 | SAFETY CLIP | 2 |
19 | 65985900 | COMPLETE REAR SIDE COVERING | 1 |
20 | 14059211 | NUT | 12 |
21 | 64865600 | CAVALLINO RAMPANTE | 1 |
22 | 14084011 | NUT | 2 |
23 | 64858811 | R.H. STRIP COVER | 1 |
23 | 65536511 | L.H. STRIP COVER | 1 |
24 | 15688175 | SCREW | 4 |
25 | 12637878 | WASHER | 4 |
26 | 14201980 | BLOCK | 4 |
27 | 62940900 | SCREW | 2 |
28 | 63314400 | WASHER | 2 |
29 | 12647777 | WASHER | 2 |
30 | 64859000 | RUBBER PROFILE | 2 |
31 | 64018500 | R.H. KICK PLATE | 1 |
31 | 64018700 | L.H. KICK PLATE | 1 |
32 | 65858500 | RUBBER PROFILE | 2 |
33 | 15688875 | SCREW | 4 |
34 | 14115480 | BLOCK | 4 |
35 | 66099510 | L.H. UNDERDOOR COVERING | 1 |
35 | 66099410 | R.H. UNDERDOOR COVERING | 1 |
36 | 64830600 | SCREW | 30 |
37 | 12643778 | WASHER | 12 |
38 | 12640677 | WASHER | 18 |
39 | 13046114 | NUT | 10 |
40 | 63246711 | UPHOLSTERY | 1 |
41 | 15688075 | SCREW | 4 |
42 | 14496277 | WASHER | 4 |
43 | 65524600 | COMPLETE ENGINE INSPECTION PANEL | 1 |
44 | 65524500 | INSULATION | 1 |
45 | 65387300 | GASKET | 1 |
46 | 65305800 | STRIKER | 2 |
47 | 119365 | WASHER | 4 |
48 | 16297024 | SCREW | 12 |
49 | 65524300 | MOTOR COMPARTMENT REAR SIDE INSULATION | 1 |
50 | 65628900 | SLAB FOOT REST | 1 |
51 | 14642291 | RIVET | 5 |
52 | 65524100 | FOOT REST | 1 |
53 | 66127700 | TRUNK COMPARTMENT REAR PANEL | 1 |
54 | 181431 | FRONT SUPPORT | 2 |
55 | 181433 | REAR SUPPORT | 2 |
56 | 65979500 | R.H. PLATE | 1 |
56 | 65979600 | L.H. PLATE | 1 |
57 | 14370571 | CLIP | 8 |
58 | 15689675 | SCREW | 8 |
59 | 169180 | NUT | 8 |
60 | 12638177 | WASHER | 8 |
61 | 65998500 | GASKET | 1 |
32 | 82254300 | LH BRACKET | |
33 | 69129500 | ROLLER | |
1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
