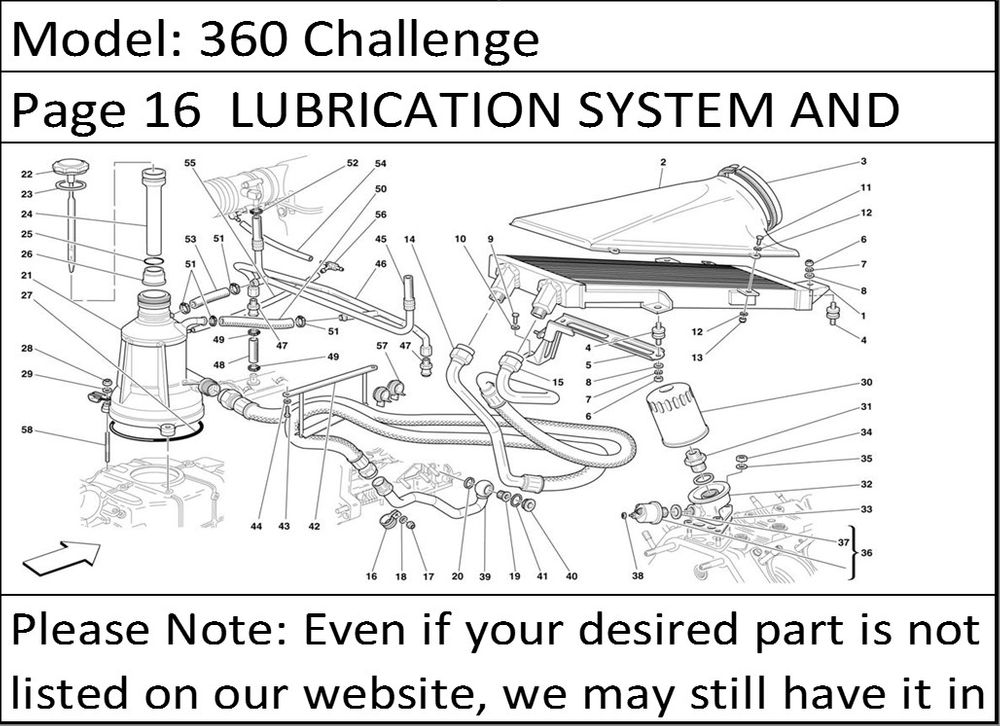

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 181449 | OIL RADIATOR | 1 |
| 2 | 181471 | AIR INLET CONVEYOR | 1 |
| 3 | 180555 | GASKET | 1 |
| 4 | 102947 | PAD | 4 |
| 5 | 181451 | REAR RADIATOR SUPPORTING BRACKET | 1 |
| 5 | 182515 | FRONT RADIATOR SUPPORTING BRACKET | 1 |
| 6 | 15896214 | NUT | 8 |
| 7 | 127494 | WASHER | 8 |
| 8 | 12644424 | WASHER | 8 |
| 9 | 10902424 | SCREW | 2 |
| 10 | 14496424 | WASHER | 2 |
| 11 | 10977824 | SCREW | 3 |
| 12 | 12637824 | WASHER | 6 |
| 13 | 113647 | NUT | 3 |
| 14 | 182816 | HOSE FROM ENGINE HOSE TO RADIATOR | 1 |
| 15 | 182817 | HOSE FROM RADIATOR TO DISAREATOR | 1 |
| 16 | 10441990 | BRACKET WITH SHEATH | 1 |
| 17 | 134041 | NUT | 1 |
| 18 | 127494 | WASHER | 1 |
| 19 | 122319 | UNION | 1 |
| 20 | 10264660 | GASKET | 1 |
| 21 | 181970 | COMPLETE OIL DISAREATOR | 1 |
| 22 | 183096 | TANK PLUG | 1 |
| 23 | 180585 | GASKET | 1 |
| 24 | 181964 | SHIELD FOR OIL LEVEL ROD | 1 |
| 25 | 182184 | O.R. GASKET | 2 |
| 26 | 182185 | END | 1 |
| 27 | 176388 | O.R. GASKET | 1 |
| 28 | 101139 | NUT | 3 |
| 29 | 12601374 | WASHER | 3 |
| 30 | 197654 | OIL FILTER CARTRIDGE | 1 |
| 31 | 173929 | THREADED UNION | 1 |
| 32 | 173633 | OIL FILTER BASE-PLATE | 1 |
| 33 | 188052 | OIL FILTER BASE GASKET | 1 |
| 34 | 101139 | NUT | 3 |
| 35 | 12601374 | WASHER | 3 |
| 36 | 135940 | OIL PRESSURE TRANSMITTER | 1 |
| 37 | 10259960 | GASKET | 1 |
| 38 | 62790300 | NUT | 2 |
| 39 | 178199 | HOSE FROM ENGINE TO RADIATOR HOSE | 1 |
| 40 | 122318 | THREADED PLUG | 1 |
| 41 | 183044 | GASKET | 1 |
| 42 | 183655 | OIL HOSE RETAINING BRACKET | 1 |
| 43 | 10902124 | SCREW | 2 |
| 44 | 12601274 | WASHER | 2 |
| 45 | 180242 | BUTTERFLY CONNECTION PIPE | 1 |
| 46 | 173968 | HEADS CONNECTION VENT PIPE | 1 |
| 47 | 170448 | VALVE | 2 |
| 48 | 175746 | RUBBER HOSE | 2 |
| 49 | 178053 | CLAMP | 4 |
| 50 | 175745 | RUBBER HOSE | 1 |
| 51 | 178053 | CLAMP | 4 |
| 52 | 178051 | CLAMP | 2 |
| 53 | 175744 | RUBBER HOSE | 1 |
| 54 | 126342 | RUBBER HOSE | 2 |
| 55 | 137904 | RUBBER HOSE | 1 |
| 56 | 161816 | 3-WAY UNION | 1 |
| 57 | 160013 | FLEXIBLE CLIP | 2 |
| 58 | 13517024 | STUD | 3 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
