Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

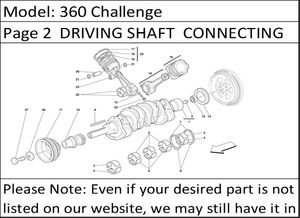

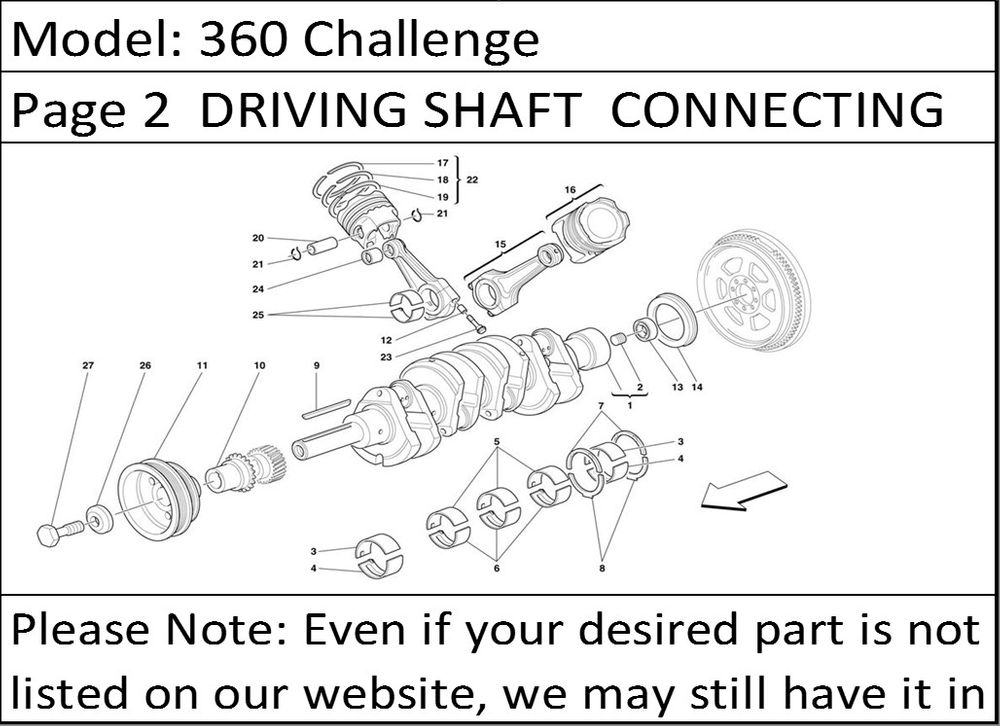

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| - | 180695 | HALF-BEARINGS COMPLETE SERIES -1st OVERSIZE mm. 0,254 | 1 |
| - | 180694 | HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE | 1 |
| - | 180696 | HALF-BEARINGS COMPLETE SERIES -2nd OVERSIZE mm. 0,508 | 1 |
| 1 | 178481 | CRANKSHAFT | 1 |
| 2 | 176396 | THREADED PLUG | 1 |
| 3 | 173559 | FRONT AND REAR UPPER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the | |
| 3 | 173560 | FRONT AND REAR UPPER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the | |
| 3 | 173558 | FRONT AND REAR UPPER HALF BEARING -Not as spare part -With the half-bearings complete series | 2 |
| 4 | 173556 | FRONT AND REAR LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the | |
| 4 | 173555 | FRONT AND REAR LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the | |
| 4 | 173554 | FRONT AND REAR LOWER HALF BEARING -Not as spare part -With the half-bearings complete series | 2 |
| 5 | 173562 | UPPER INTERMEDIATE HALF BEARING -Not as spare part -With the half-bearings complete series | 3 |
| 5 | 173563 | UPPER INTERMEDIATE HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the ha | |
| 5 | 173564 | UPPER INTEMEDIATE HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the ha | |
| 6 | 173567 | INTERMEDIATE LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the ha | |
| 6 | 173568 | INTERMEDIATE LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the h | |
| 6 | 173566 | INTERMEDIATE LOWER HALF BEARING -Not as spare part -With the half-bearings complete series | 3 |
| 7 | 164113 | UPPER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series | |
| 7 | 164111 | UPPER SHIM -Not as spare part -With the half-bearings complete series | 2 |
| 7 | 164112 | UPPER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series | |
| 8 | 164110 | LOWER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series | |
| 8 | 164108 | LOWER SHIM -Not as spare part -With the half-bearings complete series | 2 |
| 8 | 164109 | LOWER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series | |
| 9 | 151289 | KEY | 1 |
| 10 | 176643 | OIL PUMP CONTROL GEAR | 1 |
| 11 | 178738 | DRIVING SHAFT PULLEY | 1 |
| 12 | 177390 | BUSHING | 16 |
| 13 | 103877 | BEARING | 1 |
| 14 | 200323 | SEAL RING | 1 |
| 15 | 212652 | COMPLETE CONNECTING ROD AND CAP | 8 |
| 16 | 179510 | PISTON WITH RINGS | 8 |
| 17 | 160813 | AC SEAL RING (1st groove) -Not as spare part -With the pistons rings set | 8 |
| 18 | 152991 | AC SEAL RING (2nd groove) -Not as spare part -With the pistons rings set | 8 |
| 19 | 132773 | ROF OIL SCRAPING RING (3rd groove) -Not as spare part -With the pistons rings set | 8 |
| 20 | 154717 | PIN | 8 |
| 21 | 166901 | STOP RING | 16 |
| 22 | 164026 | PISTONS RINGS SET | 8 |
| 23 | 177159 | CONNECTING ROD TIGHTENING SCREW | 16 |
| 24 | 174701 | BUSHING | 8 |
| 25 | 173550 | CONNECTING ROD HALF BEARING | 16 |
| 25 | 173551 | CONNECTING ROD HALF BEARING 1st OVERSIZE mm. 0,254 | 16 |
| 25 | 173552 | CONNECTING ROD HALF BEARING 2nd OVERSIZE mm. 0,508 | 16 |
| 26 | 138792 | WASHER | 1 |
| 27 | 176583 | SCREW | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
