Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

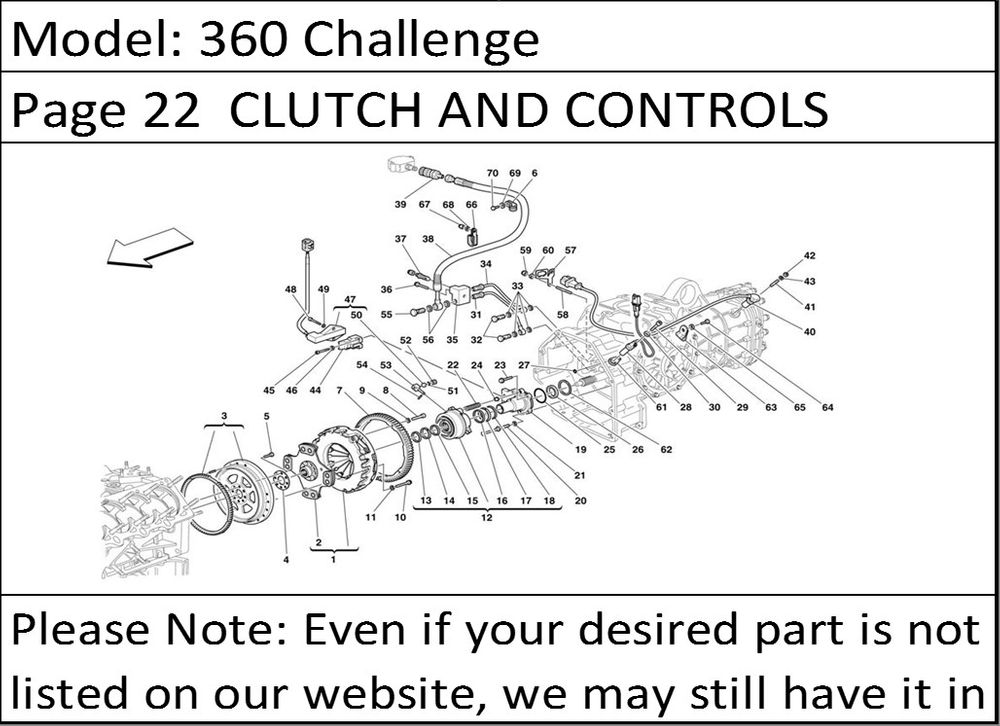

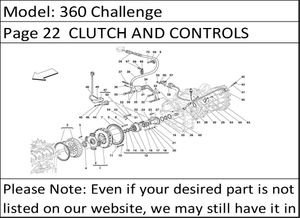

Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 178042 | COMPLETE CLUTCH | 1 |
2 | 181315 | CLUTCH DISC | 1 |
3 | 181596 | COMPLETE ENGINE FLYWHEEL | 1 |
4 | 103876 | FLYWHEEL FIXING WASHER | 1 |
5 | 103875 | SCREW | 8 |
6 | 121834 | BRACKET WITH SHEATH | 1 |
7 | 176917 | RING GEAR | 1 |
8 | 14305424 | SCREW | 3 |
9 | 127494 | WASHER | 3 |
10 | 178739 | SCREW | 15 |
11 | 11194379 | WASHER | 15 |
12 | 178331 | COMPLETE THRUST BEARING | 1 |
13 | 181837 | SCRAPER RING | 1 |
14 | 170416 | RING | 1 |
15 | 181838 | SEAL RING | 1 |
16 | 181828 | SEAL RING | 1 |
17 | 154507 | RING | 1 |
18 | 181836 | SCRAPER RING | 1 |
19 | CRF360/430 | BEARING SUPPORT FLANGE | 1 |
20 | 205396 | STUD FOR END OF STROKE | 2 |
21 | 127496 | WASHER | 2 |
22 | 155207 | PRELOAD SPRING | 2 |
23 | 13839224 | SCREW | 2 |
24 | 155206 | SPACER | 2 |
25 | 136140 | O.R. GASKET | 1 |
26 | 172363 | SEAL RING | 1 |
27 | 121813 | O.R. GASKET | 2 |
28 | 182194 | ANGOLAR SPEED SENSOR -Valid after stock exhaustion of 164937 | 2 |
29 | 14305724 | SCREW | 2 |
30 | 12601274 | WASHER | 2 |
31 | 180183 | CLUTCH CONTROL TUBE | 1 |
32 | 11903811 | UNION | 2 |
33 | 10284460 | GASKET | 4 |
34 | 180184 | BLEEDER SYSTEM PIPE | 1 |
35 | 235706 | BLOCK | 1 |
36 | 16286324 | SCREW | 1 |
37 | 121699 | BLEEDER SCREW | 1 |
38 | 239429 | COMPLETE CLUTCH HOSE | 1 |
39 | 70001184 | FEMALE COUPLING | 1 |
40 | 168729 | ELECTRO-MAGNETIC SENSOR | 1 |
41 | 11500124 | STUD | 1 |
42 | 10720124 | NUT | 1 |
43 | 12604274 | WASHER | 1 |
44 | 201282 | SUPPORT | 1 |
45 | 14358524 | SCREW | 2 |
46 | 10519378 | WASHER | 2 |
47 | 178060 | COMPLETE SENSOR KIT | 1 |
48 | 14303324 | SCREW | 2 |
49 | 10519224 | WASHER | 2 |
50 | 178060 | MAGNET | 1 |
51 | 165658 | O.R. GASKET | 1 |
52 | 167802 | PLUG | 1 |
53 | 165567 | PIN | 1 |
54 | 14158570 | PIN | 1 |
55 | 171454 | UNION | 1 |
56 | 10261060 | GASKET | 2 |
57 | 185230 | SENSOR FIXING BRACKET | 1 |
58 | 13540724 | STUD | 1 |
59 | 102741 | NUT | 1 |
60 | 106850 | WASHER | 1 |
61 | 182896 | THICKNESS | 2 |
62 | 173360 | SPACER -Possible fitting | 2 |
63 | 10440990 | BRACKET WITH SHEATH | 1 |
64 | 10977724 | SCREW | 1 |
65 | 12637824 | WASHER | 1 |
66 | 139512 | BRACKET WITH SHEATH | 1 |
67 | 102741 | NUT | 1 |
68 | 14496424 | WASHER | 1 |
69 | 14496424 | WASHER | 1 |
70 | 10979424 | SCREW | 1 |
